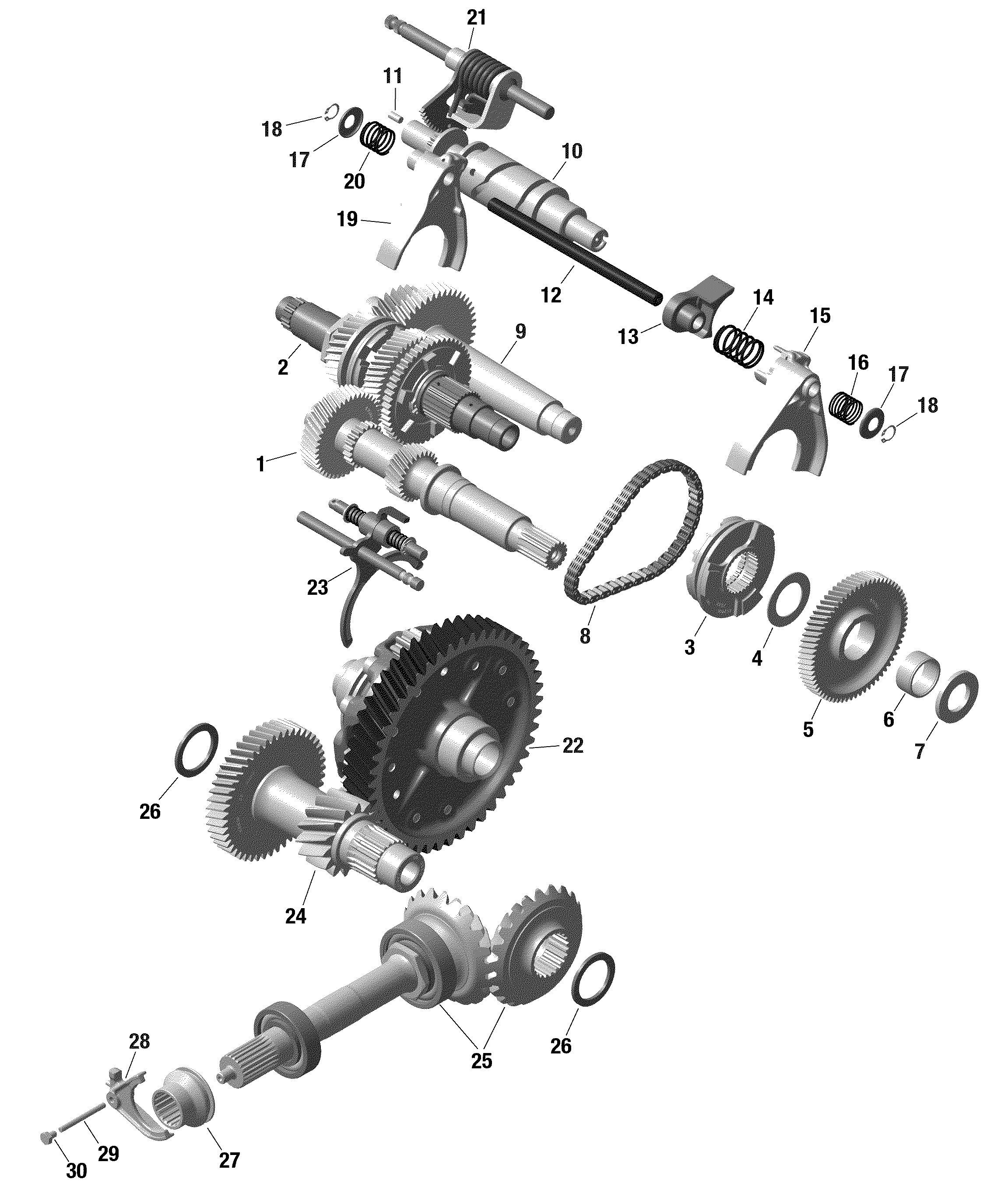

05- Gear Box 2 - 794 для BRP 003 - Defender HD10 - Except XMR - North America - 2020
-
№АртикулНазвание
-
1420637508 Counter ShaftCounter Shaft
-
2>7420637804 Main ShaftMain Shaft
-
3420657404 Shifting SleeveShifting Sleeve
-
5420435908 Gear Pinion 65TGear Pinion 65T
-
6420432139 Needle CageNeedle Cage
-
7420427082 Thrust WasherThrust Washer
-
8420898532 ChainChain
-
9420637676 Intermediate ShaftIntermediate Shaft
-
10>11420657547 Shifting DrumShifting Drum
-
11420932780 Needle PinNeedle Pin
-
12420657432 Fork SpindleFork Spindle
-
13420657476 Shifting BlockShifting Block
-
14420638077 SpringSpring
-
15420657539 Gearshift Fork Ass'yGearshift Fork Ass'y
-
16420638072 SpringSpring
-
17420427140 Spring SeatSpring Seat
-
18420945470 Retaining RingRetaining Ring
-
19420657559 Gearshift Fork Ass'yGearshift Fork Ass'y
-
20420638075 SpringSpring
-
21420637568 Shift Shaft With GearShift Shaft With Gear
-
22420686442 Differential Ass'yDifferential Ass'y
-
23420657469 Shifting Fork Ass'yShifting Fork Ass'y
-
27420257674 Shifting SleeveShifting Sleeve
-
28420258525 Shifting Fork Ass'yShifting Fork Ass'y
-
29420832650 Needle PinNeedle Pin
-
30420841581 Hex Screw M6 X 8Hex Screw M6 X 8
