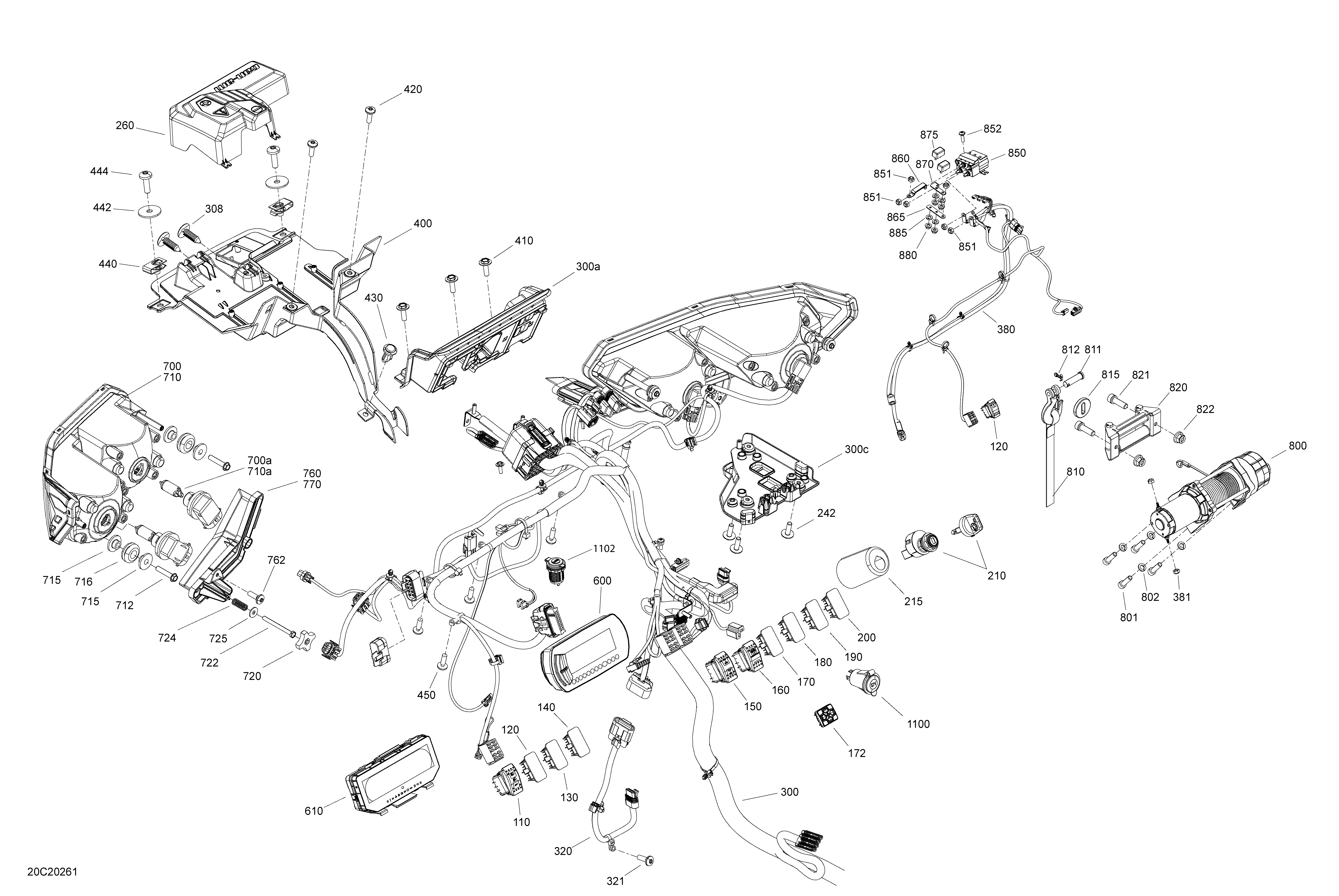

10- Electric - System - Front Section - DPS - XT - XTP для BRP 003 - Defender HD10 - Except XMR - North America - 2020
-
№АртикулНазвание
-
110710004492 Light SwitchLight Switch
-
120710001999 Plug Carling. DPSPlug Carling. DPS
-
120710002052 Switch. XT_XTPSwitch. XT_XTP
-
130710001999 Plug CarlingPlug Carling
-
140710001999 Plug CarlingPlug Carling
-
150710005489 SwitchSwitch
-
160710005470 Differential Lock SwitchDifferential Lock Switch
-
170710001999 Plug Carling. DPS_XTPlug Carling. DPS_XT
-
172710006650 Multifonction Switch. XTPMultifonction Switch. XTP
-
180710001999 Plug CarlingPlug Carling
-
190710001999 Plug CarlingPlug Carling
-
200710001999 Plug CarlingPlug Carling
-
210710004198 Ignition Switch With KeysIgnition Switch With Keys
-
215710005739 Key Switch ProtectorKey Switch Protector
-
242250000959 Screw PT Type K-50 X 16Screw PT Type K-50 X 16
-
260710006707 Junction Block CoverJunction Block Cover
-
300710006376 Main Wiring Harness. Includes 300 to 300cMain Wiring Harness. Includes 300 to 300c
-
300a710006640 Fusebox SupportFusebox Support
-
300c710006706 Connector SupportConnector Support
-
308293730006 Black, DartBlack, Dart
-
320710006837 Throttle Pedal HarnessThrottle Pedal Harness
-
321250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
380710006653 Winch Wiring Harness. XT_XTPWinch Wiring Harness. XT_XTP
-
381232561434 Elastic Stop Nut M6. XT_XTPElastic Stop Nut M6. XT_XTP
-
400710006649 Wiring Harness SupportWiring Harness Support
-
410250000959 Screw PT Type K-50 X 16Screw PT Type K-50 X 16
-
420250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
430293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
440250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
442250200029 Washer M6Washer M6
-
444250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
450250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
600710006739 Compact Multifonction Gauge. DPS_XTCompact Multifonction Gauge. DPS_XT
-
610710006854 Speedometer. XTPSpeedometer. XTP
-
700710006976 LH BeamLH Beam
-
700a219800149 Halogen Bulb H8 12V 35WHalogen Bulb H8 12V 35W
-
710710006977 RH BeamRH Beam
-
710a219800149 Halogen Bulb H8 12V 35WHalogen Bulb H8 12V 35W
-
712241152540 Hex. Flanged Screw K50 X 2.24 X 25Hex. Flanged Screw K50 X 2.24 X 25
-
715710004749 Shoulder BushingShoulder Bushing
-
716293720053 GrommetGrommet
-
720572106600 HandleHandle
-
722250000718 Hex. Screw K40 X 45Hex. Screw K40 X 45
-
724517168600 SpringSpring
-
725234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
760705013593 Deep Black, LH Front Headlight Trim. DPSDeep Black, LH Front Headlight Trim. DPS
-
760710006374 LH Auxiliary LED Headlight. XT_XTPLH Auxiliary LED Headlight. XT_XTP
-
762250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
770705013595 Deep Black, RH Front Headlight Trim. DPS_XTDeep Black, RH Front Headlight Trim. DPS_XT
-
770710006375 RH Auxiliary LED Headlight. XTPRH Auxiliary LED Headlight. XTP
-
800710006993 Electric Winch. XT_XTPElectric Winch. XT_XTP
-
801205083044 Socket Head Screw M8 X 30. XT_XTPSocket Head Screw M8 X 30. XT_XTP
-
802234181401 Lock Washer 8 mm. XT_XTPLock Washer 8 mm. XT_XTP
-
810710007029 Winch Hook. XTWinch Hook. XT
-
811710006995 Lock Pin. XTLock Pin. XT
-
812710006994 Cotter Pin. XTCotter Pin. XT
-
815710007028 Stopper. XT_XTPStopper. XT_XTP
-
820710006996 Fairlead Roller. XT_XTPFairlead Roller. XT_XTP
-
821205003044 Socket Screw M10 x 30. XT_XTPSocket Screw M10 x 30. XT_XTP
-
822233201414 Hex. Flanged Elastic Nut M10. XT_XTPHex. Flanged Elastic Nut M10. XT_XTP
-
850710006991 Solenoid. XT_XTPSolenoid. XT_XTP
-
851232561200 Elastic Stop Nut M6, Brass. XT_XTPElastic Stop Nut M6, Brass. XT_XTP
-
852250000720 Torx Screw K50 X 16. XT_XTPTorx Screw K50 X 16. XT_XTP
-
860710004772 Power Bar. XT_XTPPower Bar. XT_XTP
-
865710006401 Copper Busbar. XT_XTPCopper Busbar. XT_XTP
-
870710004873 Power Bar. XT_XTPPower Bar. XT_XTP
-
875710007039 Circuit Breaker 50 Amp. XT_XTPCircuit Breaker 50 Amp. XT_XTP
-
880250100071 Hex. Flanged Nut M5. XT_XTPHex. Flanged Nut M5. XT_XTP
-
885234161601 Lock Washer Helical M6. XT_XTPLock Washer Helical M6. XT_XTP
-
1100710005374 12V Power Outlet12V Power Outlet
-
1102219400510 USB Outlet. XT_XTPUSB Outlet. XT_XTP
