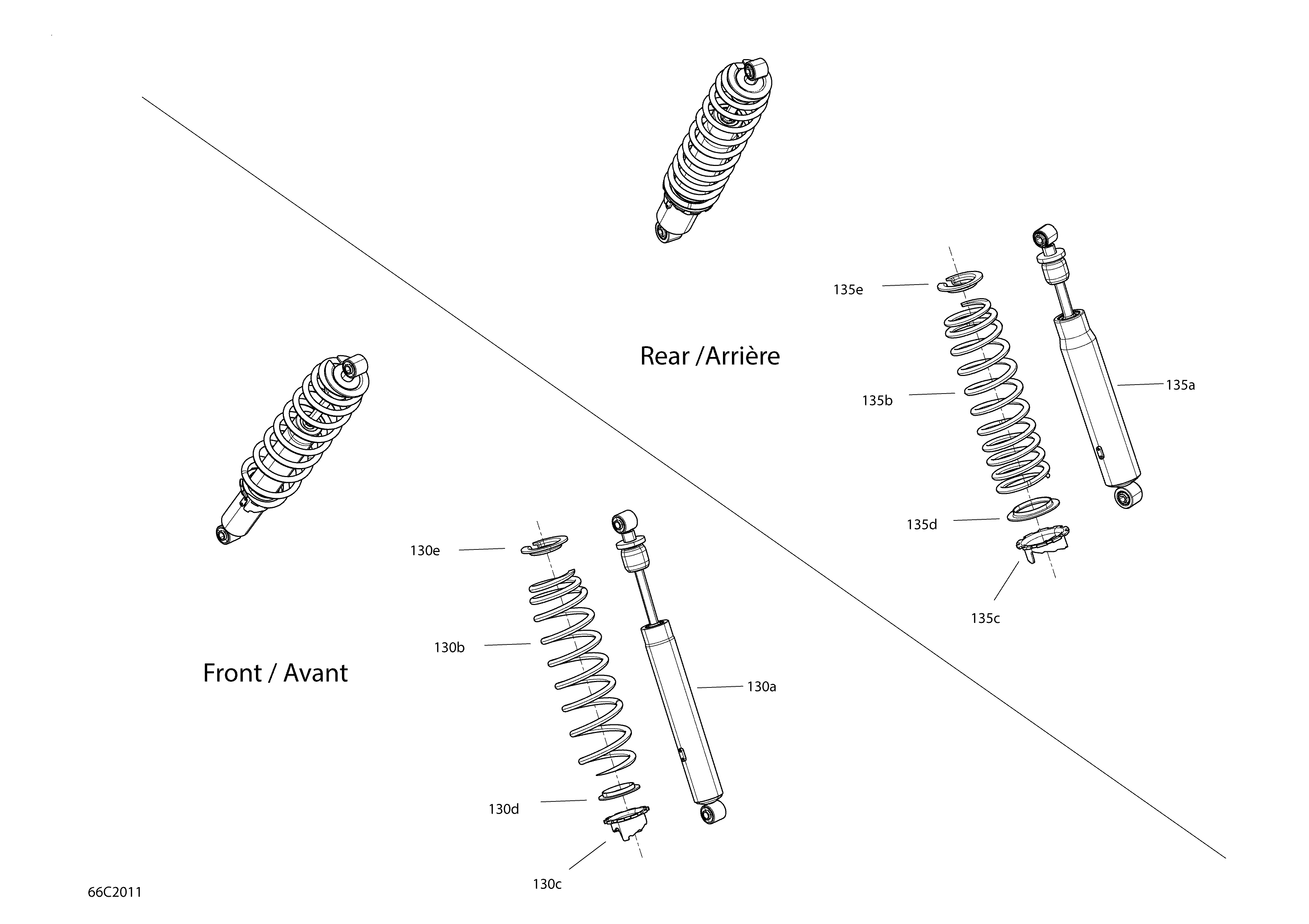

07- Suspension - Shocks - DPS - XT - XTP для BRP 003 - Defender HD10 - Except XMR - North America - 2020
-
№АртикулНазвание
-
130a706203623 Front Shock AbsorberFront Shock Absorber
-
130b706203777 Deep Black, Front Compression SpringDeep Black, Front Compression Spring
-
130c706001893 Adjustment RingAdjustment Ring
-
130d503187500 Spring GuideSpring Guide
-
130e706001894 Spring CupSpring Cup
-
135a706003473 Rear Shock AbsorberRear Shock Absorber
-
135b706003658 Deep Black, Rear Compression SpringDeep Black, Rear Compression Spring
-
135c706000910 Adjustment RingAdjustment Ring
-
135d706000911 Protector RingProtector Ring
-
135e706001894 Spring CupSpring Cup
