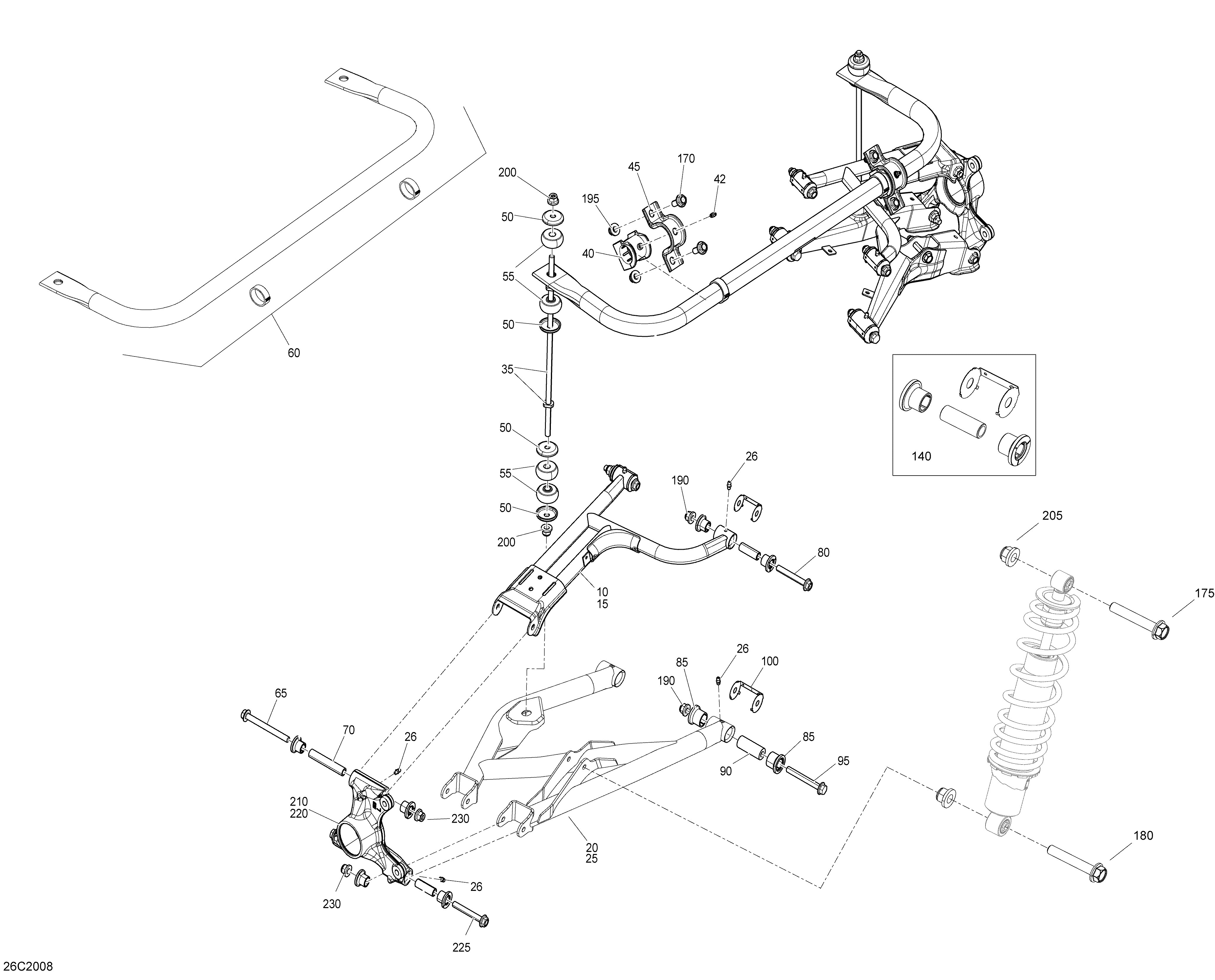

08- Suspension, Rear - DPS - XT - XTP для BRP 003 - Defender HD10 - Except XMR - North America - 2020
-
№АртикулНазвание
-
10706003847 LH Upper Suspension ArmLH Upper Suspension Arm
-
15706003848 RH Upper Suspension ArmRH Upper Suspension Arm
-
20706003855 LH Lower Suspension ArmLH Lower Suspension Arm
-
25706003856 RH Lower Suspension ArmRH Lower Suspension Arm
-
26408200700 Grease FittingGrease Fitting
-
35706001898 Torsion Bar LinkTorsion Bar Link
-
40706001896 CushionCushion
-
42408200700 Grease FittingGrease Fitting
-
45706002592 ClampClamp
-
50706002027 Linkage CupLinkage Cup
-
55706002028 Linkage BushingLinkage Bushing
-
60706003383 Swaybar Ass'ySwaybar Ass'y
-
65230600046 Screw-Hex.Flange DIN.6921Screw-Hex.Flange DIN.6921
-
70706202197 Upper BushingUpper Bushing
-
80207607046 Hex. Flanged Screw M10 X 70Hex. Flanged Screw M10 X 70
-
85706201659 CushionCushion
-
90706201590 SleeveSleeve
-
95207608046 Hex Flanged Screw M10 X 80Hex Flanged Screw M10 X 80
-
100706201660 Wear PlateWear Plate
-
140703500875 Bushing KitBushing Kit
-
170207602544 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
175207606046 Hex. Flanged Screw M10 X 60Hex. Flanged Screw M10 X 60
-
180230603046 Flanged Hex. Screw, M10 X 130Flanged Hex. Screw, M10 X 130
-
190233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
195233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
200233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
205233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
210706002809 Rear Left Machined KnuckleRear Left Machined Knuckle
-
220706002811 Rear Right Machined KnuckleRear Right Machined Knuckle
-
225207607046 Hex. Flanged Screw M10 X 70Hex. Flanged Screw M10 X 70
-
230233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
