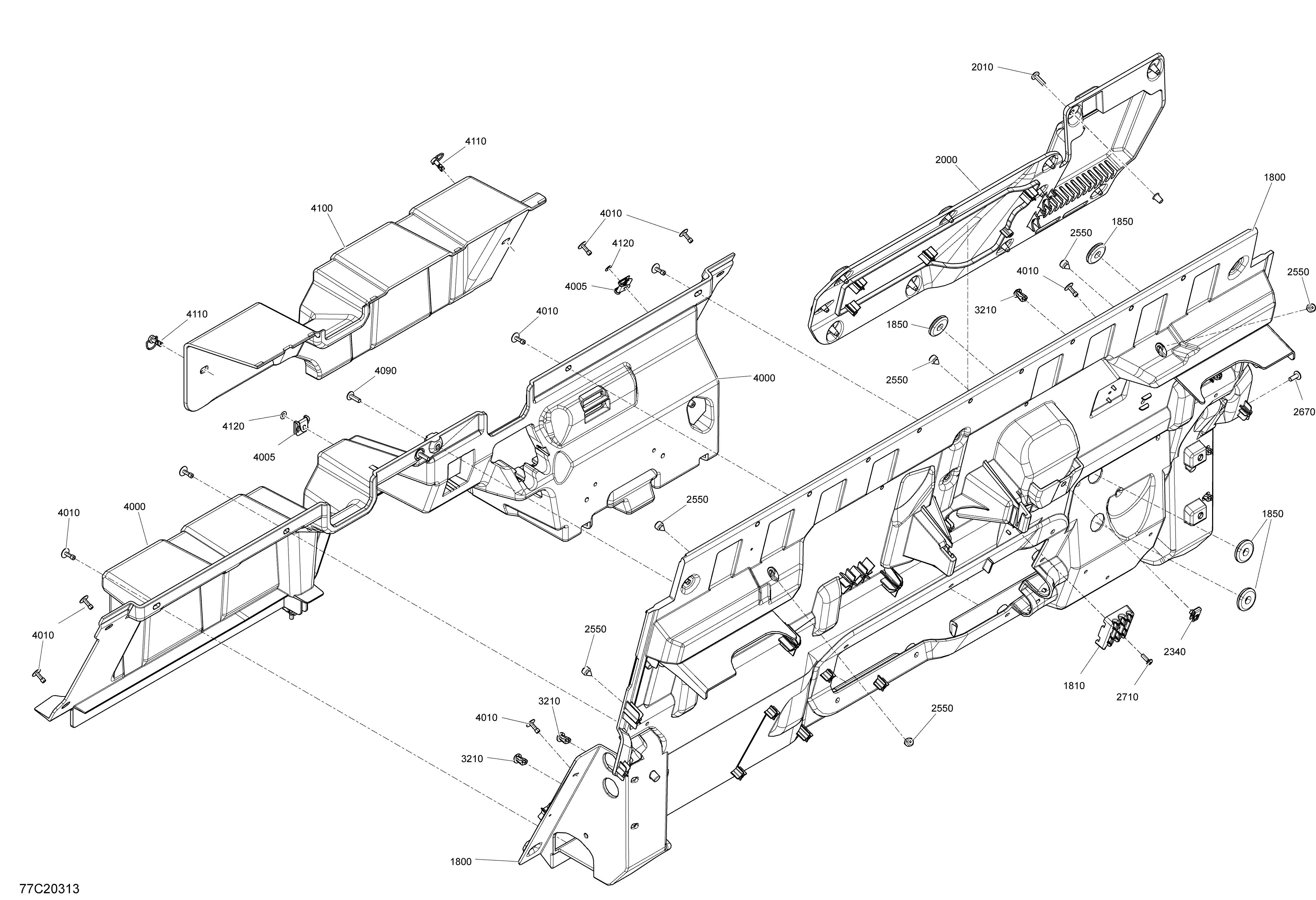

09- Cab Interior - No Evap - Back Wall для BRP 003 - Defender HD10 - Except XMR - North America - 2020
-
№АртикулНазвание
-
1800707900715 Rear Upper Cab PanelRear Upper Cab Panel
-
1810707900788 Hose SupportHose Support
-
1850293720119 GrommetGrommet
-
2000707900742 Rear Access CoverRear Access Cover
-
2010250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
2340250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
2550293830005 Rubber BumperRubber Bumper
-
2670250000721 Torx Truss Screw M6 X 16Torx Truss Screw M6 X 16
-
2710250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
3210293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
4000707900718 Rear Lower Cab PanelRear Lower Cab Panel
-
4005705002651 Quarter Turn NutQuarter Turn Nut
-
4010293150100 Pop Rivet 3/16''Pop Rivet 3/16''
-
4090250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
4100707900743 Battery CoverBattery Cover
-
4110705002649 Quarter Turn ScrewQuarter Turn Screw
-
4120705002650 WasherWasher
