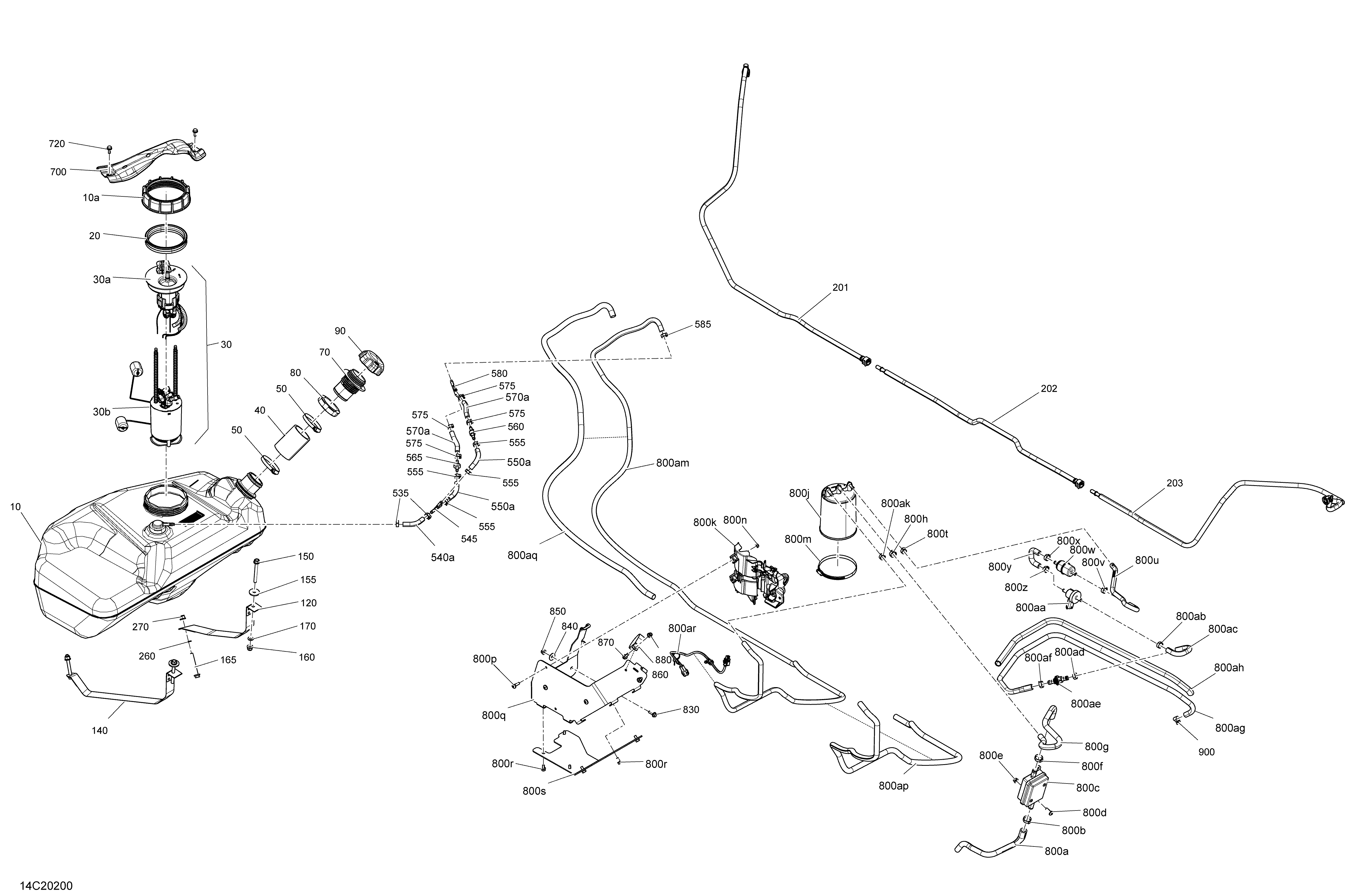

02- Fuel - EVAP для BRP 007 - Maverick MAX Turbo - North America - 2020
-
№АртикулНазвание
-
10709000706 Fuel Tank. Includes 10 to 10aFuel Tank. Includes 10 to 10a
-
10a250100062 Special Nut M130Special Nut M130
-
20293250173 GasketGasket
-
30709001056 Fuel Pump. Includes 30 to 30bFuel Pump. Includes 30 to 30b
-
30a270600113 Fuel FilterFuel Filter
-
30b715900424 Fuel SenderFuel Sender
-
40709000748 Filler NeckFiller Neck
-
50293650081 Norma ClampNorma Clamp
-
70709000867 Filler NeckFiller Neck
-
80211100012 Filler Neck Nut, FuelFiller Neck Nut, Fuel
-
90709000868 Fuel CapFuel Cap
-
120709000910 Fuel Tank StrapFuel Tank Strap
-
140709000911 Fuel Tank StrapFuel Tank Strap
-
150250001084 Screw Hex. FLange M8x75Screw Hex. FLange M8x75
-
155250200187 Flat Washer M8Flat Washer M8
-
160233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
165207686544 Hex. Flanged Screw, M8 X 65Hex. Flanged Screw, M8 X 65
-
170234081410 Flat Washer 8 mmFlat Washer 8 mm
-
201709000987 Formed HoseFormed Hose
-
202709000989 Formed HoseFormed Hose
-
203709001059 Formed HoseFormed Hose
-
260234081410 Flat Washer 8 mmFlat Washer 8 mm
-
270233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
535293650042 Oetiker ClampOetiker Clamp
-
540a709000667 HoseHose
-
545293710059 Y-FittingY-Fitting
-
550a709000667 HoseHose
-
555293650042 Oetiker ClampOetiker Clamp
-
560513033469 Check ValveCheck Valve
-
565275500398 Check ValveCheck Valve
-
570a709000667 HoseHose
-
575293650042 Oetiker ClampOetiker Clamp
-
580293710059 Y-FittingY-Fitting
-
585293650042 Oetiker ClampOetiker Clamp
-
700707900594 Connector ProtectorConnector Protector
-
720207561644 Hex.Fla. Screw M6 X 16, Scotch GripHex.Fla. Screw M6 X 16, Scotch Grip
-
800a709000869 Formed HoseFormed Hose
-
800b293650186 Oetiker ClampOetiker Clamp
-
800c709000524 Air FilterAir Filter
-
800d250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
800e233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
800f293650186 Oetiker ClampOetiker Clamp
-
800g709000870 Formed HoseFormed Hose
-
800h293650053 Crimp ClampCrimp Clamp
-
800j709000806 Vapor CanisterVapor Canister
-
800k709000851 Canister SupportCanister Support
-
800m293650054 Tridon ClampTridon Clamp
-
800n232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
800p250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
800q709000955 Primary SupportPrimary Support
-
800r210261250 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
800s709000956 Secondary SupportSecondary Support
-
800t293650042 Oetiker ClampOetiker Clamp
-
800u709000853 Formed HoseFormed Hose
-
800v293650046 Oetiker ClampOetiker Clamp
-
800w513033719 FilterFilter
-
800x293650047 Crimp Clamp, 15.3-706RCrimp Clamp, 15.3-706R
-
800y709000857 Formed HoseFormed Hose
-
800z293650047 Crimp Clamp, 15.3-706RCrimp Clamp, 15.3-706R
-
800aa709000443 Bleed ValveBleed Valve
-
800ab293650047 Crimp Clamp, 15.3-706RCrimp Clamp, 15.3-706R
-
800ac709000873 Formed HoseFormed Hose
-
800ad293650053 Crimp ClampCrimp Clamp
-
800ae275500941 Valve-CheckValve-Check
-
800af293650053 Crimp Clamp. Includes 800af to 800ahCrimp Clamp. Includes 800af to 800ah
-
800ag709000666 HoseHose
-
800ah415080000 Tubing 16 mm (1 meter pac)Tubing 16 mm (1 meter pac)
-
800ak293650046 Oetiker ClampOetiker Clamp
-
800am709000667 Hose. Includes 800am to 800apHose. Includes 800am to 800ap
-
800ap415080000 Tubing 16 mm (1 meter pac)Tubing 16 mm (1 meter pac)
-
800aq415080000 Tubing 16 mm (1 meter pac)Tubing 16 mm (1 meter pac)
-
800ar710005718 Purge Valve CablePurge Valve Cable
-
830207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
840250200162 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
850233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
860293850132 Open ClampOpen Clamp
-
870207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
880233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
900293650214 Norma Spring ClampNorma Spring Clamp
