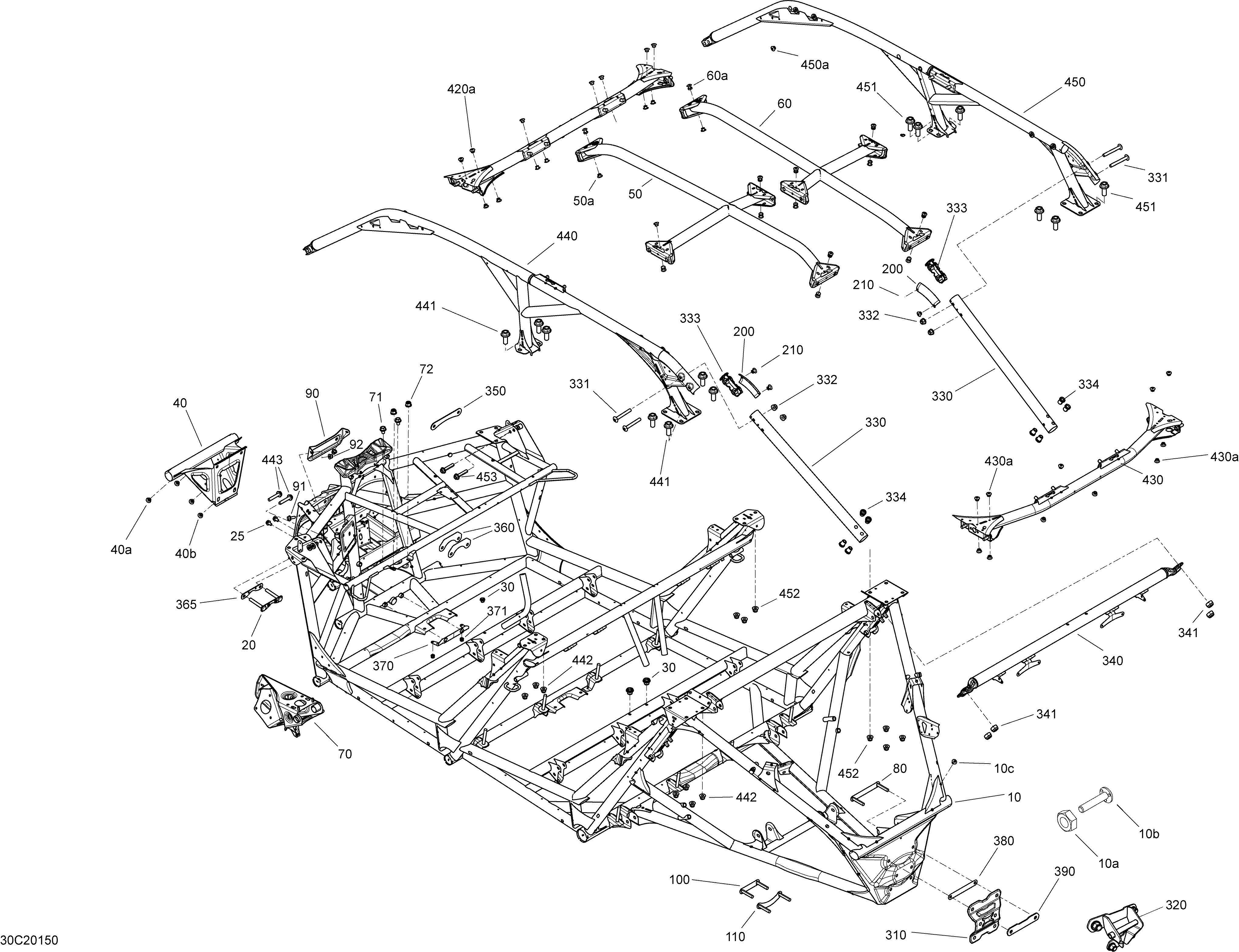

09- Frame для BRP 007 - Maverick MAX Turbo - North America - 2020
-
№АртикулНазвание
-
10705208280 Deep Black, Frame. Includes 10 to 10cDeep Black, Frame. Includes 10 to 10c
-
10a233701400 Hexagonal NutHexagonal Nut
-
10b250000913 Weld Pin 8mm X 40mmWeld Pin 8mm X 40mm
-
10c390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
20705207424 E-Coat Front PlateE-Coat Front Plate
-
25207561044 Flanged Screw M6 X 10, Scotch GripFlanged Screw M6 X 10, Scotch Grip
-
30250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
40705205746 Black, Front Bumper. Includes 40 to 40bBlack, Front Bumper. Includes 40 to 40b
-
40a390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
40b390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
50705206251 LH Added Cage. Includes 50 to 50aLH Added Cage. Includes 50 to 50a
-
50a390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
60705206410 RH Added Cage. Includes 60 to 60aRH Added Cage. Includes 60 to 60a
-
60a390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
70705206924 DPS SupportDPS Support
-
71207581244 Hex. Flanged Screw M8 X 12, Scotch GripHex. Flanged Screw M8 X 12, Scotch Grip
-
72233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
80705206852 Rear Upper PlateRear Upper Plate
-
90705206877 Stifner PlateStifner Plate
-
91207661654 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
92233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
100705206853 Front PlateFront Plate
-
110705206854 Rear PlateRear Plate
-
200705205926 Black, LH Link PlateBlack, LH Link Plate
-
210293150102 Rivet 3/16''Rivet 3/16''
-
310705205750 Rear PlateRear Plate
-
330705208514 Deep Black, Rear TubeDeep Black, Rear Tube
-
331250000901 Torx Truss M8 X 65Torx Truss M8 X 65
-
332250100025 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
333705205634 SleeveSleeve
-
334293450307 Insert Half Hex Body M8 x 1.25Insert Half Hex Body M8 x 1.25
-
340705208518 Belt BarBelt Bar
-
341232521416 Elastic Flanged Stop Nut M12Elastic Flanged Stop Nut M12
-
350705207425 Upper Arm LinkUpper Arm Link
-
360705205295 Lower Arm LinkLower Arm Link
-
365705207438 Front PlateFront Plate
-
370706203122 SupportSupport
-
371390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
380705206069 Front Upper PlateFront Upper Plate
-
390705206511 Rear Upper PlateRear Upper Plate
-
420a390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
430705208585 Deep Black, Rear Cross Member. Includes 430 to 430aDeep Black, Rear Cross Member. Includes 430 to 430a
-
430a390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
440705208508 Deep Black, LH CageDeep Black, LH Cage
-
441250000951 Screw-Hex.Flange DIN.6921Screw-Hex.Flange DIN.6921
-
442233221466 Elastic Flange Nut M12Elastic Flange Nut M12
-
443250000857 Screw Flange M12 X 60Screw Flange M12 X 60
-
450705208511 Deep Black, RH Cage. Includes 450 to 450aDeep Black, RH Cage. Includes 450 to 450a
-
450a390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
451250000951 Screw-Hex.Flange DIN.6921Screw-Hex.Flange DIN.6921
-
452233221466 Elastic Flange Nut M12Elastic Flange Nut M12
-
453250000857 Screw Flange M12 X 60Screw Flange M12 X 60
