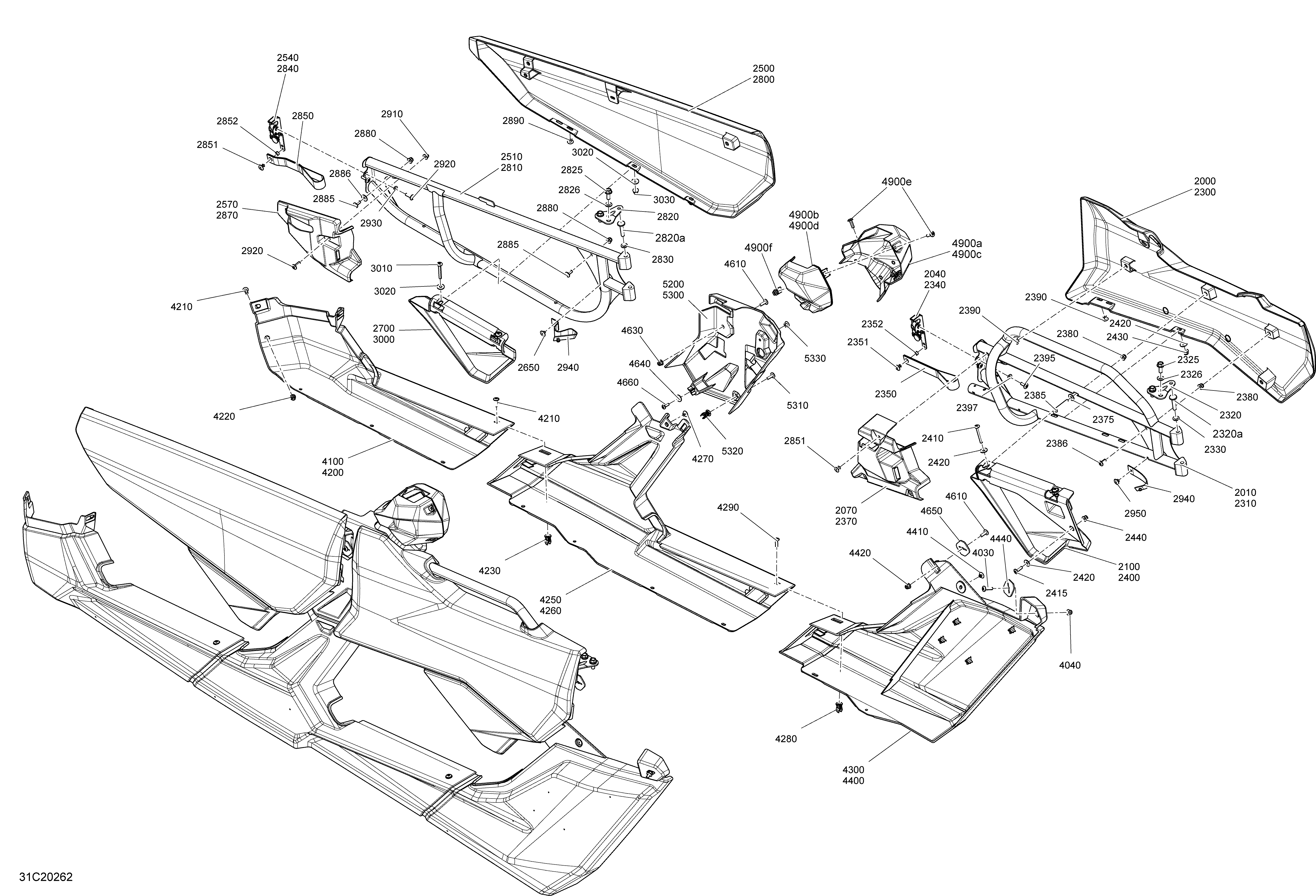

09- Body - Door Section - Red для BRP 007 - Maverick MAX Turbo - North America - 2020
-
№АртикулНазвание
-
2000705013106 Black, LH Door PanelBlack, LH Door Panel
-
2010705013426 Deep Black, LH Rear DoorDeep Black, LH Rear Door
-
2040705013095 LH LatchLH Latch
-
2070705013859 LH Latch CoverLH Latch Cover
-
2100705011358 Left Lower Door CoverLeft Lower Door Cover
-
2300705013107 Black, RH Door PanelBlack, RH Door Panel
-
2310705013427 Deep Black, RH Rear DoorDeep Black, RH Rear Door
-
2320705011187 Door Support. Includes 2320 to 2320aDoor Support. Includes 2320 to 2320a
-
2320a250000913 Weld Pin 8mm X 40mmWeld Pin 8mm X 40mm
-
2325207582054 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
2326234081430 Flat Washer M8Flat Washer M8
-
2330234081100 Flat Washer 8 mm, NylonFlat Washer 8 mm, Nylon
-
2340705013096 RH LatchRH Latch
-
2350293850135 BeltBelt
-
2351293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
2352293900104 BushingBushing
-
2370705013860 RH Latch CoverRH Latch Cover
-
2375234062670 Flat Washer, StainlessFlat Washer, Stainless
-
2380250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
2385250000748 Torx Screw M6 X 45Torx Screw M6 X 45
-
2386250000721 Torx Truss Screw M6 X 16Torx Truss Screw M6 X 16
-
2390293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
2395250000721 Torx Truss Screw M6 X 16Torx Truss Screw M6 X 16
-
2397224061121 Flat WasherFlat Washer
-
2400705011359 Right Lower Door CoverRight Lower Door Cover
-
2410250000749 Torx Truss Screw M6 X 50Torx Truss Screw M6 X 50
-
2415250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
2420234062670 Flat Washer, StainlessFlat Washer, Stainless
-
2430233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
2440250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
2500705012862 Black, LH Door PanelBlack, LH Door Panel
-
2510705012564 Black, LH Door FrameBlack, LH Door Frame
-
2540705013095 LH LatchLH Latch
-
2570705013535 LH Latch CoverLH Latch Cover
-
2650293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
2700705010732 LH Lower Door PanelLH Lower Door Panel
-
2800705012863 Black, RH Door PanelBlack, RH Door Panel
-
2810705012565 Black, RH Door FrameBlack, RH Door Frame
-
2820705011187 Door Support. Includes 2820 to 2820aDoor Support. Includes 2820 to 2820a
-
2820a250000913 Weld Pin 8mm X 40mmWeld Pin 8mm X 40mm
-
2825207582054 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
2826234081430 Flat Washer M8Flat Washer M8
-
2830234081100 Flat Washer 8 mm, NylonFlat Washer 8 mm, Nylon
-
2840705013096 RH LatchRH Latch
-
2850293850135 BeltBelt
-
2851293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
2852293900104 BushingBushing
-
2870705013536 RH Latch CoverRH Latch Cover
-
2880250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
2885250000721 Torx Truss Screw M6 X 16Torx Truss Screw M6 X 16
-
2886234062670 Flat Washer, StainlessFlat Washer, Stainless
-
2890293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
2910250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
2920250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
2930224061121 Flat WasherFlat Washer
-
2940293850129 Door BeltDoor Belt
-
2950293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
3000705010733 RH Lower Door PanelRH Lower Door Panel
-
3010250000749 Torx Truss Screw M6 X 50Torx Truss Screw M6 X 50
-
3020234062670 Flat Washer, StainlessFlat Washer, Stainless
-
3030233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
4030250000807 Torx Truss Screw M6 X 25Torx Truss Screw M6 X 25
-
4040250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
4100705009513 LH Central Lateral PanelLH Central Lateral Panel
-
4200705009514 RH Central Lateral PanelRH Central Lateral Panel
-
4210250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
4220250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
4230705010872 InsertInsert
-
4250705011368 LH Rear Central Lateral PanelLH Rear Central Lateral Panel
-
4260705011369 RH Rear Central Lateral PanelRH Rear Central Lateral Panel
-
4270293150108 Pop Rivet 3/16”Pop Rivet 3/16”
-
4280705010872 InsertInsert
-
4290250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
4300705010676 LH Rear Lateral PanelLH Rear Lateral Panel
-
4400705010677 RH Rear Lateral PanelRH Rear Lateral Panel
-
4410293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
4420250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
4440705003841 Support PlateSupport Plate
-
4610250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
4630250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
4640234062670 Flat Washer, StainlessFlat Washer, Stainless
-
4650705003841 Support PlateSupport Plate
-
4660250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
4900a705014859 LH Central Cage TrimLH Central Cage Trim
-
4900b705014860 LH Central Cage TrimLH Central Cage Trim
-
4900c705014861 RH Central Cage TrimRH Central Cage Trim
-
4900d705014862 RH Central Cage TrimRH Central Cage Trim
-
4900e250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
4900f250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
5200705013098 Black, LH Central Door TrimBlack, LH Central Door Trim
-
5300705013099 Black RH Central Door TrimBlack RH Central Door Trim
-
5310250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
5320705010872 InsertInsert
-
5330293150103 Pop Rivet 3/16''Pop Rivet 3/16''
