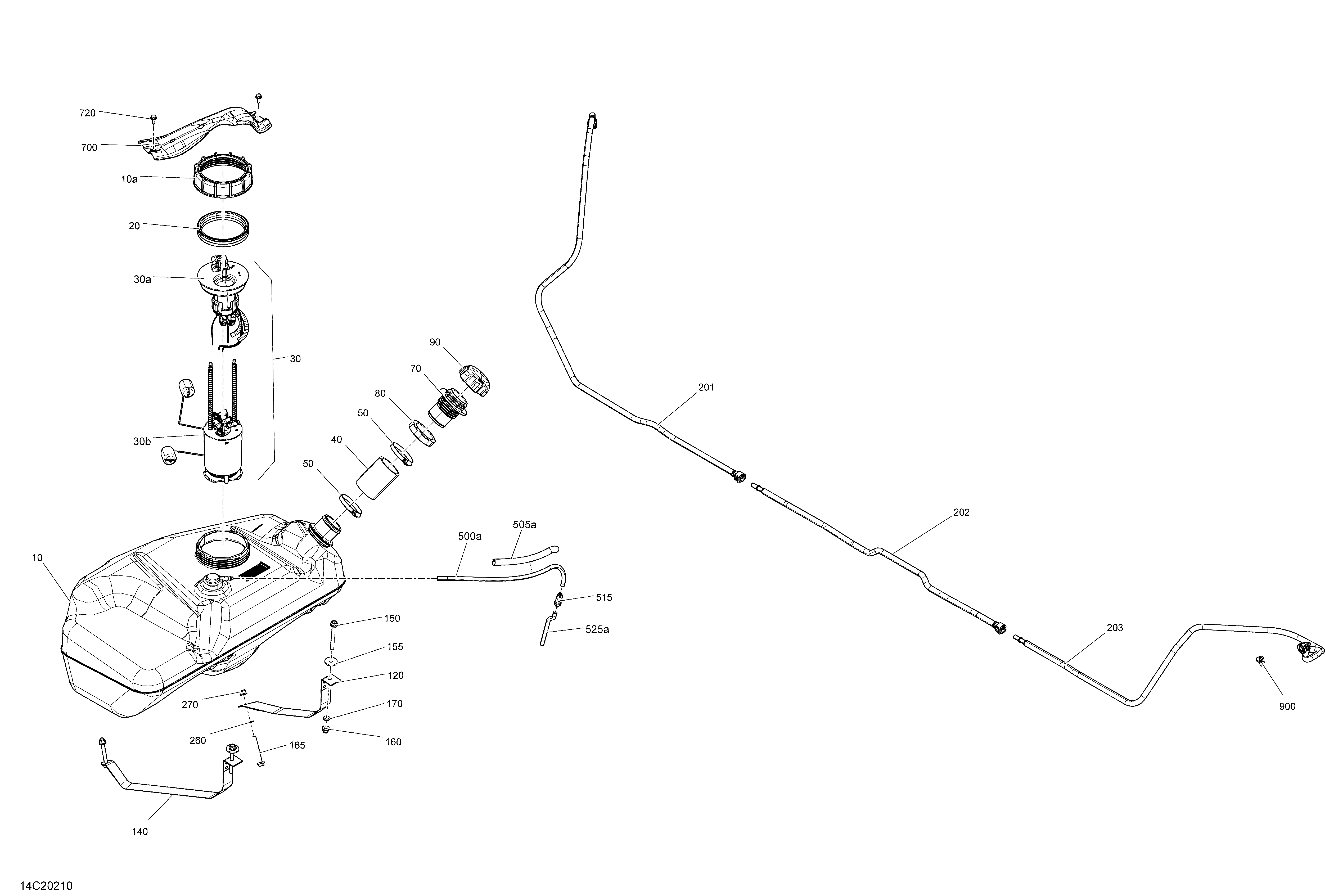

02- Fuel - NO EVAP для BRP 007 - Maverick MAX Turbo - North America - 2020
-
№АртикулНазвание
-
10709000706 Fuel Tank. Includes 10 to 10aFuel Tank. Includes 10 to 10a
-
10a250100062 Special Nut M130Special Nut M130
-
20293250173 GasketGasket
-
30709001056 Fuel Pump. Includes 30 to 30bFuel Pump. Includes 30 to 30b
-
30a270600113 Fuel FilterFuel Filter
-
30b715900424 Fuel SenderFuel Sender
-
40709000748 Filler NeckFiller Neck
-
50293650081 Norma ClampNorma Clamp
-
70709000867 Filler NeckFiller Neck
-
80211100012 Filler Neck Nut, FuelFiller Neck Nut, Fuel
-
90709000868 Fuel CapFuel Cap
-
120709000910 Fuel Tank StrapFuel Tank Strap
-
140709000911 Fuel Tank StrapFuel Tank Strap
-
150250001084 Screw Hex. FLange M8x75Screw Hex. FLange M8x75
-
155250200187 Flat Washer M8Flat Washer M8
-
160233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
165207686544 Hex. Flanged Screw, M8 X 65Hex. Flanged Screw, M8 X 65
-
170234081410 Flat Washer 8 mmFlat Washer 8 mm
-
201709000987 Formed HoseFormed Hose
-
202709000989 Formed HoseFormed Hose
-
203709001059 Formed HoseFormed Hose
-
260234081410 Flat Washer 8 mmFlat Washer 8 mm
-
270233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
500a293830193 Polyurethane HosePolyurethane Hose
-
505a415079900 Tubing 10 mmTubing 10 mm
-
515709001120 FilterFilter
-
525a293830193 Polyurethane HosePolyurethane Hose
-
700707900594 Connector ProtectorConnector Protector
-
720207561644 Hex.Fla. Screw M6 X 16, Scotch GripHex.Fla. Screw M6 X 16, Scotch Grip
-
900293650214 Norma Spring ClampNorma Spring Clamp
