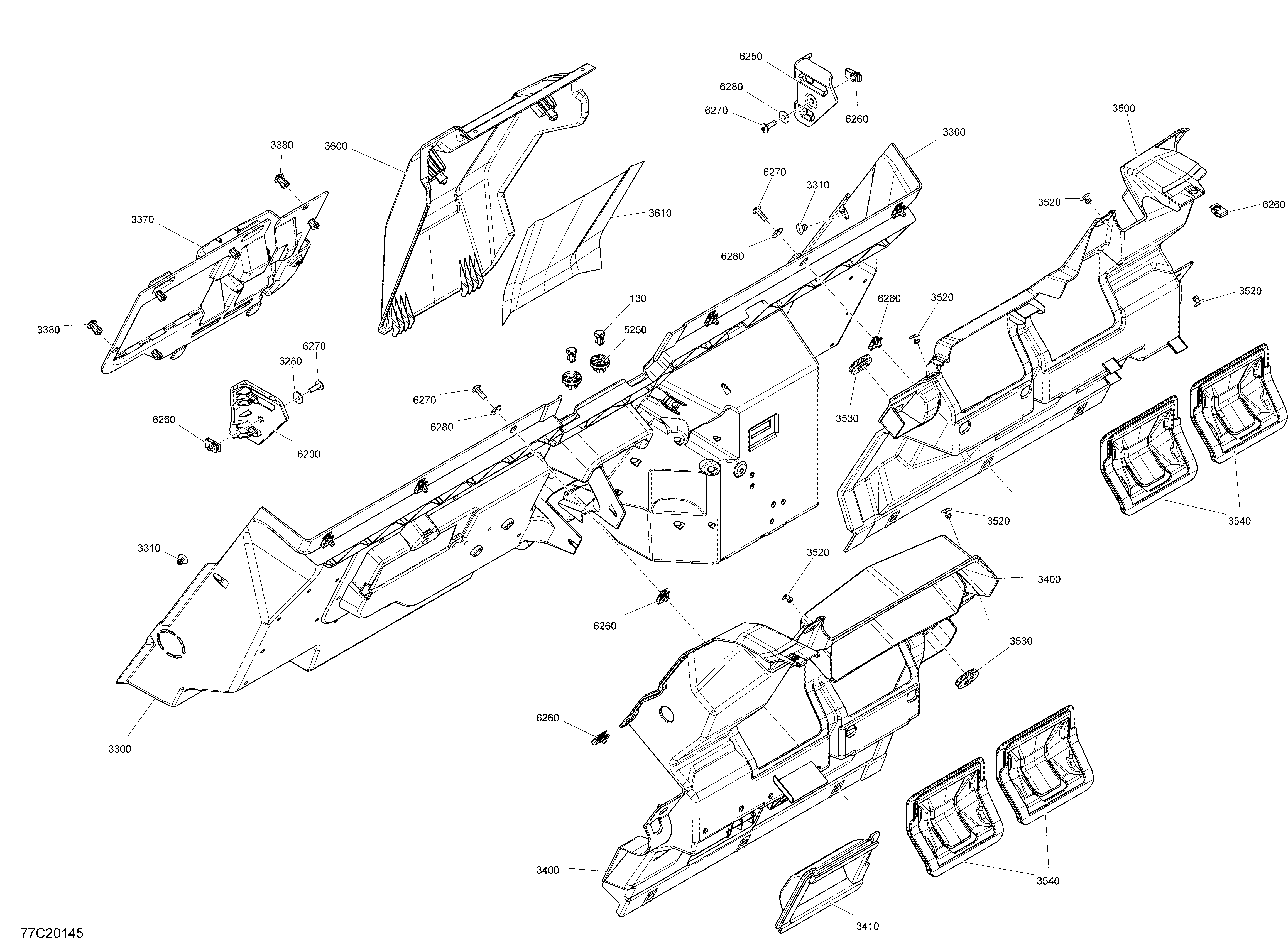

09- Cab Interior - Back Wall Section для BRP 007 - Maverick MAX Turbo - North America - 2020
-
№АртикулНазвание
-
130293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
3300707900769 Rear Lower Seperation PanelRear Lower Seperation Panel
-
3310293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
3370707900703 Cover Fuse BoxCover Fuse Box
-
3380293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
3400707900632 LH Upper Rear BulkheadLH Upper Rear Bulkhead
-
3410707900652 Bulkhead CoverBulkhead Cover
-
3500707900441 RH Upper Rear BulkheadRH Upper Rear Bulkhead
-
3520293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
3530705010718 GrommetGrommet
-
3540707900486 Bulkhead CoverBulkhead Cover
-
3600707900442 Central Upper Rear BulkheadCentral Upper Rear Bulkhead
-
3610707900773 Aluminum FoilAluminum Foil
-
5260707900133 InsertInsert
-
6200707900615 LH Shoulder PadLH Shoulder Pad
-
6250707900616 RH Shoulder PadRH Shoulder Pad
-
6260250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
6270250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
6280234062670 Flat Washer, StainlessFlat Washer, Stainless
