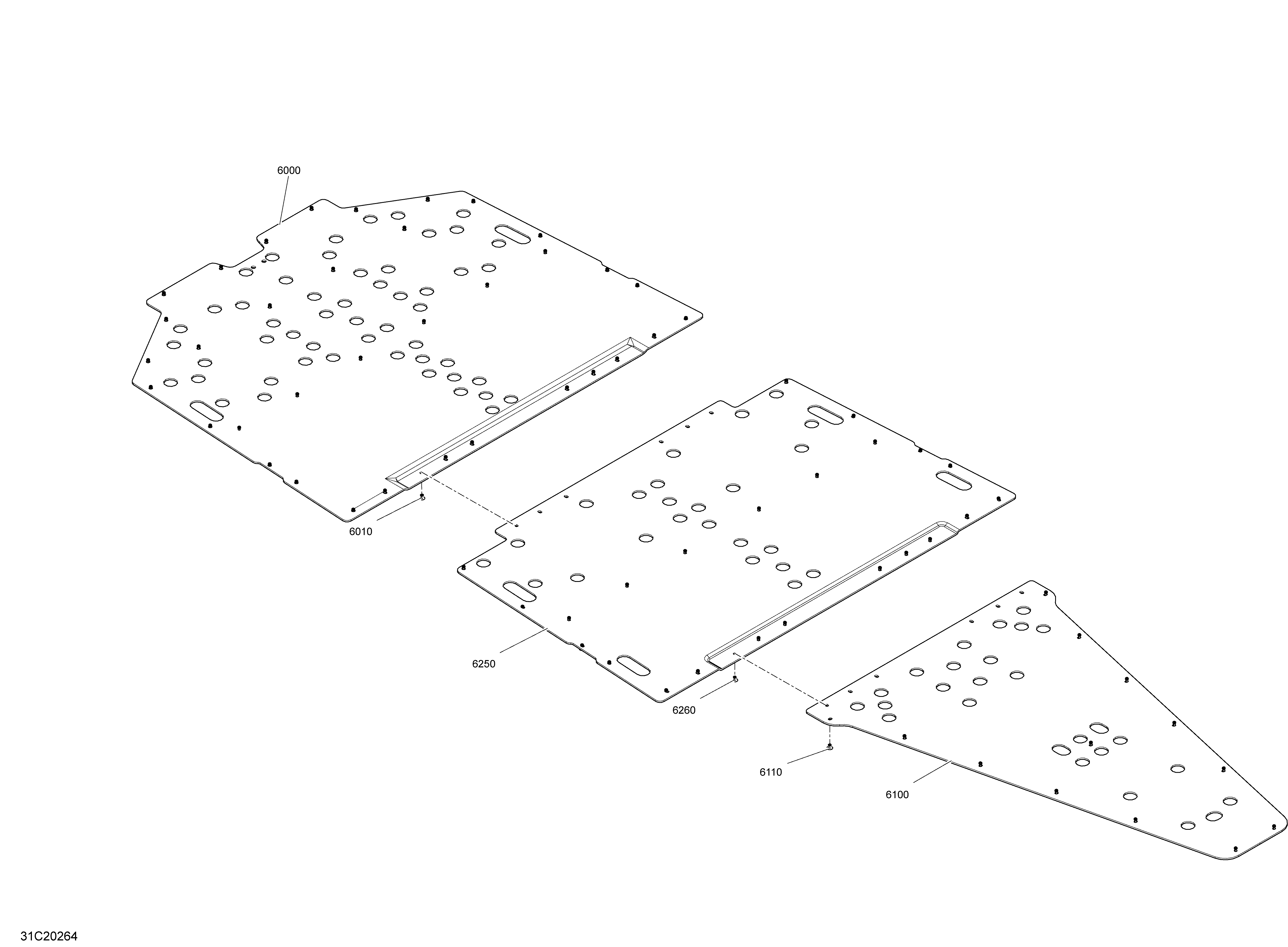

09- Body - Skid Plate - XMR - Green для BRP 009 - Maverick MAX Turbo RR - XMR - North America - 2020
-
№АртикулНазвание
-
6000705013125 Central Skid PlateCentral Skid Plate
-
6010293150108 Pop Rivet 3/16”Pop Rivet 3/16”
-
6100705012361 Rear Skid PlateRear Skid Plate
-
6110293150108 Pop Rivet 3/16”Pop Rivet 3/16”
-
6250705013060 Central Skid PlateCentral Skid Plate
-
6260293150108 Pop Rivet 3/16”Pop Rivet 3/16”
