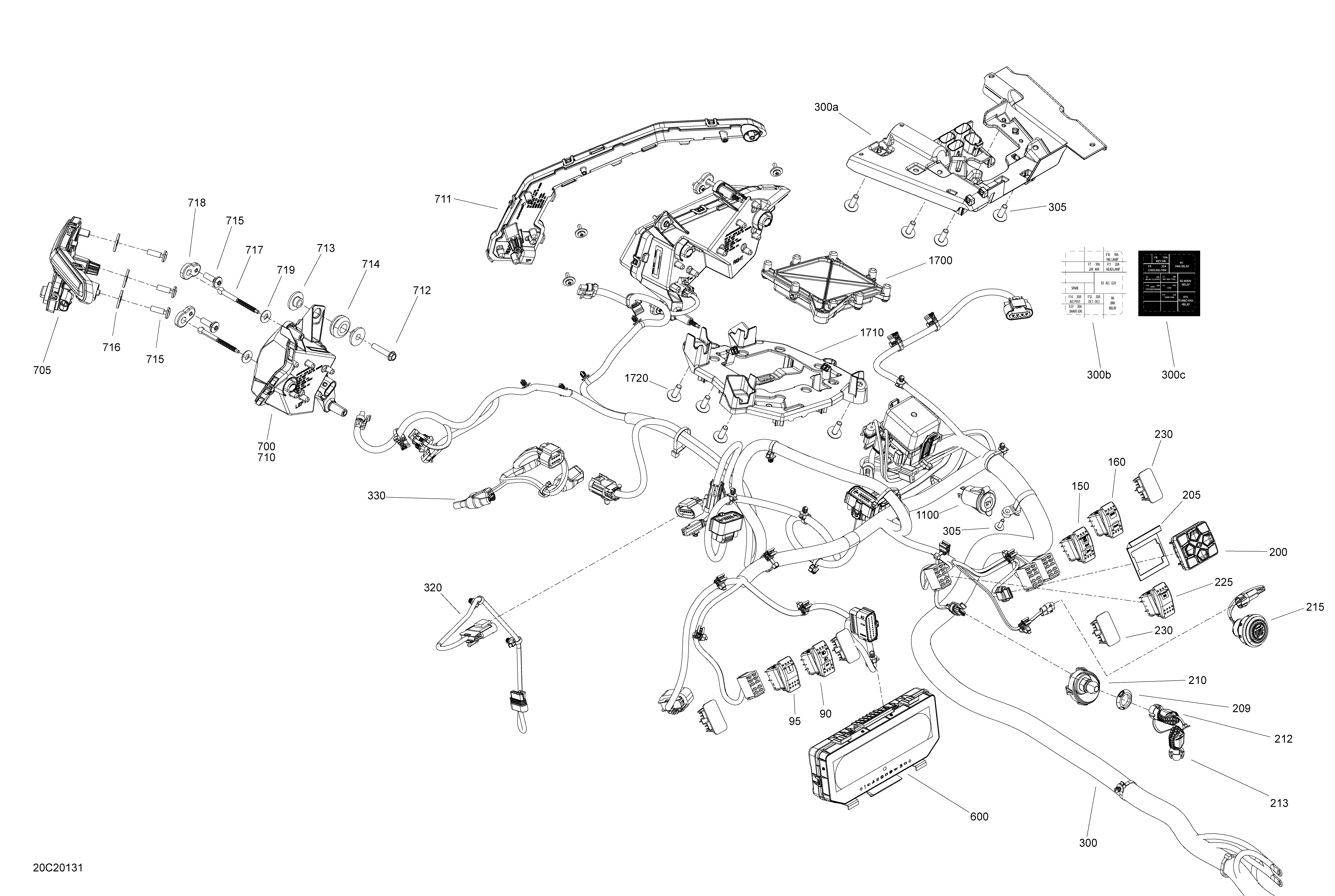

10- Electric - System - Front Section для BRP 009 - Maverick MAX Turbo RR - XMR - North America - 2020
-
№АртикулНазвание
-
90710004492 Light SwitchLight Switch
-
95710002052 SwitchSwitch
-
150710006040 Differntial SwitchDifferntial Switch
-
160710006559 Differential Mode SwitchDifferential Mode Switch
-
200710006059 Switch MultifunctionSwitch Multifunction
-
205707900778 Rubber StopperRubber Stopper
-
209278002963 Safety Nut (DESS Switch)Safety Nut (DESS Switch)
-
210515178225 DESS Switch, RFIDDESS Switch, RFID
-
212710004964 Grey Key RFIDGrey Key RFID
-
213710005232 Green Key RFIDGreen Key RFID
-
215710005213 Start-Stop ButtonStart-Stop Button
-
225710002053 Switch, Over rideSwitch, Over ride
-
230710001999 Plug CarlingPlug Carling
-
300710006660 Main Wiring Harness Long. Includes 300 to 300cMain Wiring Harness Long. Includes 300 to 300c
-
300a710006339 Fuse Holder SupportFuse Holder Support
-
300b710006560 Fuses DecalFuses Decal
-
300c710006408 Fuses DecalFuses Decal
-
305250000959 Screw PT Type K-50 X 16Screw PT Type K-50 X 16
-
320710005291 Cable Throttle PedalCable Throttle Pedal
-
330710006807 Front Differential Wiring HarnessFront Differential Wiring Harness
-
600710006854 SpeedometerSpeedometer
-
700710004658 LH Low Beam Ass'yLH Low Beam Ass'y
-
705710004994 LH Signature BeamLH Signature Beam
-
710710004659 RH Low Beam Ass'yRH Low Beam Ass'y
-
711710004995 RH Signature BeamRH Signature Beam
-
712241152540 Hex. Flanged Screw K50 X 2.24 X 25Hex. Flanged Screw K50 X 2.24 X 25
-
713710004749 Shoulder BushingShoulder Bushing
-
714293720053 GrommetGrommet
-
715250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
716234062670 Flat Washer, StainlessFlat Washer, Stainless
-
717710005837 Ajustment ScrewAjustment Screw
-
718710005097 Adjustment GuideAdjustment Guide
-
719293300192 O-RingO-Ring
-
1100710005374 12V Power Outlet12V Power Outlet
-
1700710006479 Front Drive ModuleFront Drive Module
-
1710710005807 FDM SupportFDM Support
-
1720250000959 Screw PT Type K-50 X 16Screw PT Type K-50 X 16
