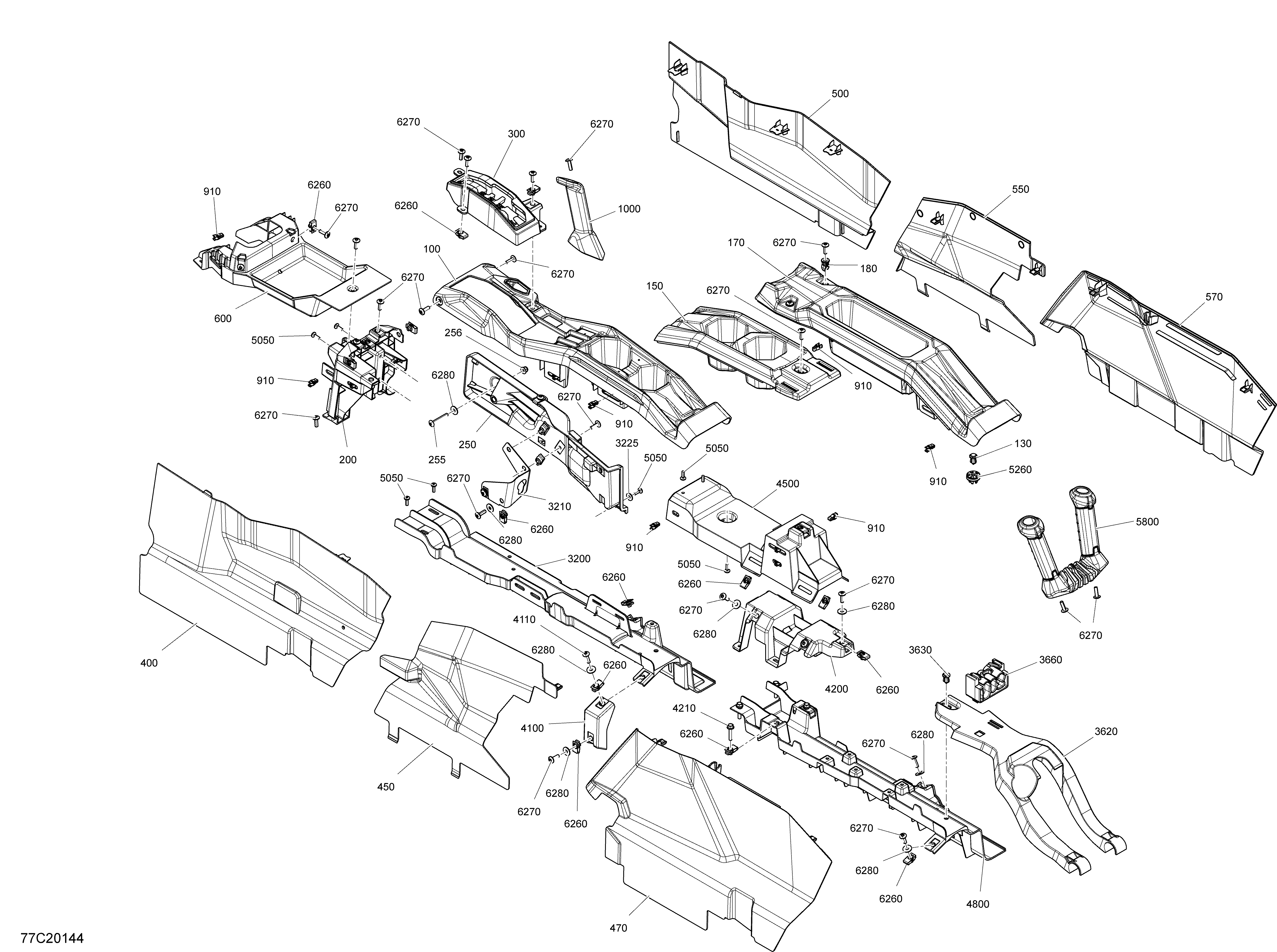

09- Cab Interior - Console - XMR для BRP 009 - Maverick MAX Turbo RR - XMR - North America - 2020
-
№АртикулНазвание
-
100715004068 Front Console Kit. Black HoodFront Console Kit. Black Hood
-
100715005025 Front Console Kit. Hyper Silver HoodFront Console Kit. Hyper Silver Hood
-
130293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
150707900492 Middle ConsoleMiddle Console
-
170707900568 Rear ConsoleRear Console
-
180705010872 InsertInsert
-
200707900459 Front Central Consol SupportFront Central Consol Support
-
250707900488 Shifter Gate SupportShifter Gate Support
-
255250000748 Torx Screw M6 X 45Torx Screw M6 X 45
-
256233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
300707900644 Lever IndicatorLever Indicator
-
400707900396 LH Lateral Dash PanelLH Lateral Dash Panel
-
450707900497 LH Middle Lateral Dash PanelLH Middle Lateral Dash Panel
-
470707900571 LH Rear Lateral Dash PanelLH Rear Lateral Dash Panel
-
500707900397 RH Lateral Dash PanelRH Lateral Dash Panel
-
550707900498 RH Middle Lateral Dash PanelRH Middle Lateral Dash Panel
-
570707900572 RH Rear Lateral Dash PanelRH Rear Lateral Dash Panel
-
600707900460 Front Top ConsoleFront Top Console
-
910705010721 ClipClip
-
1000707900011 Passenger HandlePassenger Handle
-
3200707900710 Support Hose CentralSupport Hose Central
-
3210707900478 Cable SupportCable Support
-
3225250200025 Washer M5Washer M5
-
3620707900651 Hose SupportHose Support
-
3630293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
3660707900699 Support Hose RearSupport Hose Rear
-
4100707900501 Central Consol SupportCentral Consol Support
-
4110250000807 Torx Truss Screw M6 X 25Torx Truss Screw M6 X 25
-
4200707900569 Rear Consol SupportRear Consol Support
-
4210207663056 Hex Flanged Screw M6 X 1.0 X 30Hex Flanged Screw M6 X 1.0 X 30
-
4500707900573 Consol SupportConsol Support
-
4800707900711 Support Hose CentralSupport Hose Central
-
5050250000577 Torx Truss Screw K40 X 12Torx Truss Screw K40 X 12
-
5260707900133 InsertInsert
-
5800707900575 Passenger HandlePassenger Handle
-
6260250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
6270250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
6280234062670 Flat Washer, StainlessFlat Washer, Stainless
