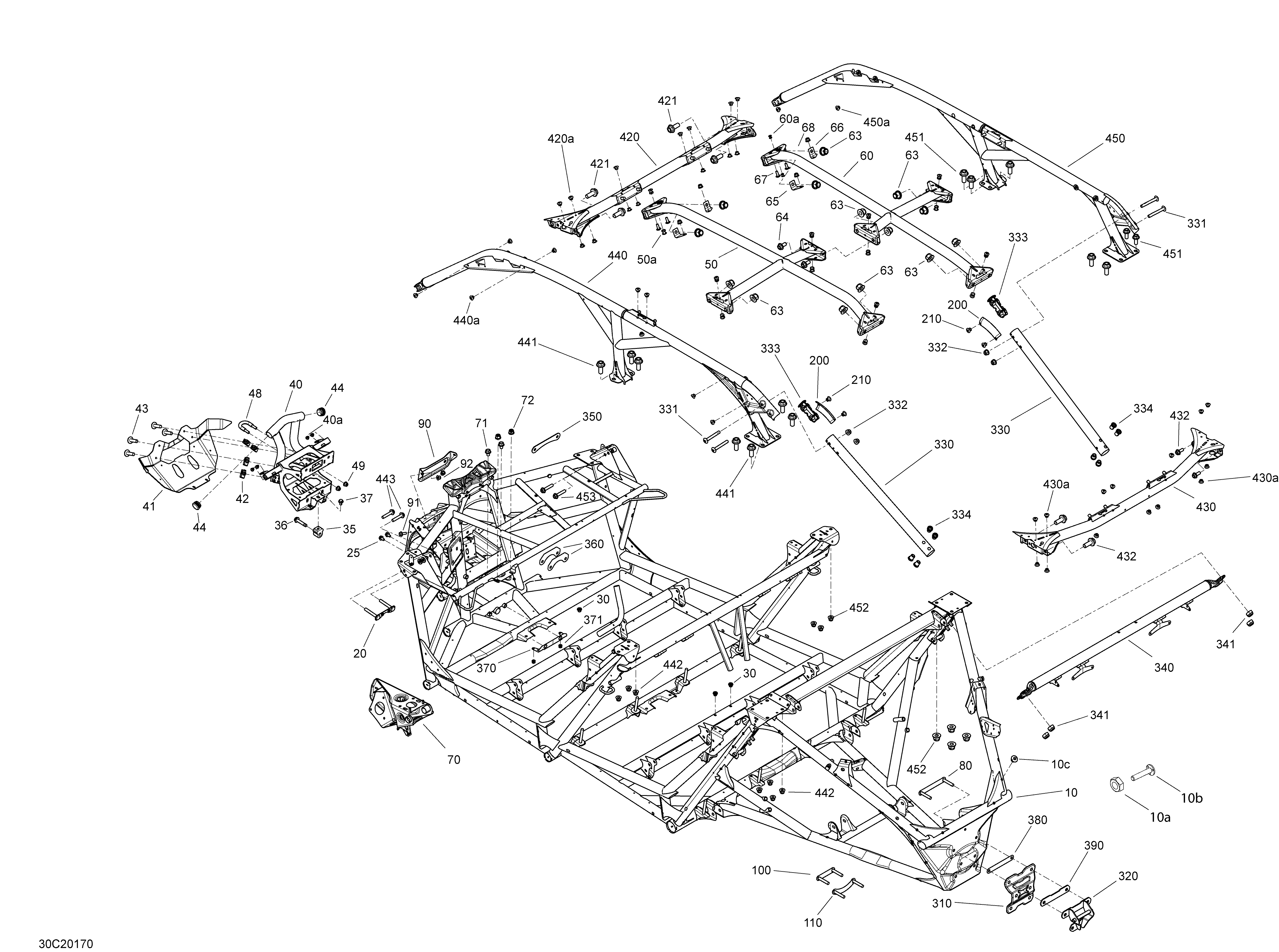

09- Frame для BRP 009 - Maverick MAX Turbo RR - XMR - North America - 2020
-
№АртикулНазвание
-
10705208283 Manta Green, Frame. Includes 10 to 10cManta Green, Frame. Includes 10 to 10c
-
10a233701400 Hexagonal NutHexagonal Nut
-
10b250000913 Weld Pin 8mm X 40mmWeld Pin 8mm X 40mm
-
10c390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
20705207424 E-Coat Front PlateE-Coat Front Plate
-
25207561044 Flanged Screw M6 X 10, Scotch GripFlanged Screw M6 X 10, Scotch Grip
-
30250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
35705206992 Bumper LinkBumper Link
-
36250000987 Screw-Hex.Flange DIN.6921 M12X1.75Screw-Hex.Flange DIN.6921 M12X1.75
-
37250000060 Flanged Screw M10 X 16, Scotch GripFlanged Screw M10 X 16, Scotch Grip
-
40705208147 Manta Green, Front Bumper. Includes 40 to 40aManta Green, Front Bumper. Includes 40 to 40a
-
40a390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
41705206871 Front Master PlateFront Master Plate
-
42250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
43250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
44705202455 CapCap
-
48705206983 U-ClampU-Clamp
-
49233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
50705208284 Manta Green, LH Cage Reinforcement. Includes 50 to 50aManta Green, LH Cage Reinforcement. Includes 50 to 50a
-
50a390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
60705208285 Manta Green, RH Cage Reinforcement. Includes 60 to 60aManta Green, RH Cage Reinforcement. Includes 60 to 60a
-
60a390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
63233221466 Elastic Flange Nut M12Elastic Flange Nut M12
-
64250000856 Screw-Hex.Flanged DIN.6921 M12X25Screw-Hex.Flanged DIN.6921 M12X25
-
65705206806 StiffnerStiffner
-
66705206807 StiffnerStiffner
-
67250000717 Torx Head Screw M6 X 16Torx Head Screw M6 X 16
-
68233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
70705206924 DPS SupportDPS Support
-
71207581244 Hex. Flanged Screw M8 X 12, Scotch GripHex. Flanged Screw M8 X 12, Scotch Grip
-
72233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
80705206852 Rear Upper PlateRear Upper Plate
-
90705206877 Stifner PlateStifner Plate
-
91207661654 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
92233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
100705206853 Front PlateFront Plate
-
110705206854 Rear PlateRear Plate
-
200705208286 Connecting PlateConnecting Plate
-
210293150102 Rivet 3/16''Rivet 3/16''
-
310705205750 Rear PlateRear Plate
-
320715004450 Black, Rear Attachement HookBlack, Rear Attachement Hook
-
330705208544 Manta Green, Rear TubeManta Green, Rear Tube
-
331250000901 Torx Truss M8 X 65Torx Truss M8 X 65
-
332250100025 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
333705205634 SleeveSleeve
-
334293450307 Insert Half Hex Body M8 x 1.25Insert Half Hex Body M8 x 1.25
-
340705208518 Belt BarBelt Bar
-
341232521416 Elastic Flanged Stop Nut M12Elastic Flanged Stop Nut M12
-
350705207425 Upper Arm LinkUpper Arm Link
-
360705205295 Lower Arm LinkLower Arm Link
-
370706203122 SupportSupport
-
371390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
380705206069 Front Upper PlateFront Upper Plate
-
390705206511 Rear Upper PlateRear Upper Plate
-
420705208583 Manta Green, Front Cross Member. Includes 420 to 420aManta Green, Front Cross Member. Includes 420 to 420a
-
420a390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
421207523056 Hex. Flanged Screw M12 X 30, Scotch GripHex. Flanged Screw M12 X 30, Scotch Grip
-
430705208592 Manta Green, Rear Cross Member. Includes 430 to 430aManta Green, Rear Cross Member. Includes 430 to 430a
-
430a390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
431233221466 Elastic Flange Nut M12. Not ShownElastic Flange Nut M12. Not Shown
-
432207523056 Hex. Flanged Screw M12 X 30, Scotch GripHex. Flanged Screw M12 X 30, Scotch Grip
-
440705208557 Manta Green, LH Cage. Includes 440 to 440aManta Green, LH Cage. Includes 440 to 440a
-
440a390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
441250000951 Screw-Hex.Flange DIN.6921Screw-Hex.Flange DIN.6921
-
442233221466 Elastic Flange Nut M12Elastic Flange Nut M12
-
443250000857 Screw Flange M12 X 60Screw Flange M12 X 60
-
450705208559 Manta Green, RH Cage. Includes 450 to 450aManta Green, RH Cage. Includes 450 to 450a
-
450a390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
451250000951 Screw-Hex.Flange DIN.6921Screw-Hex.Flange DIN.6921
-
452233221466 Elastic Flange Nut M12Elastic Flange Nut M12
-
453250000857 Screw Flange M12 X 60Screw Flange M12 X 60
