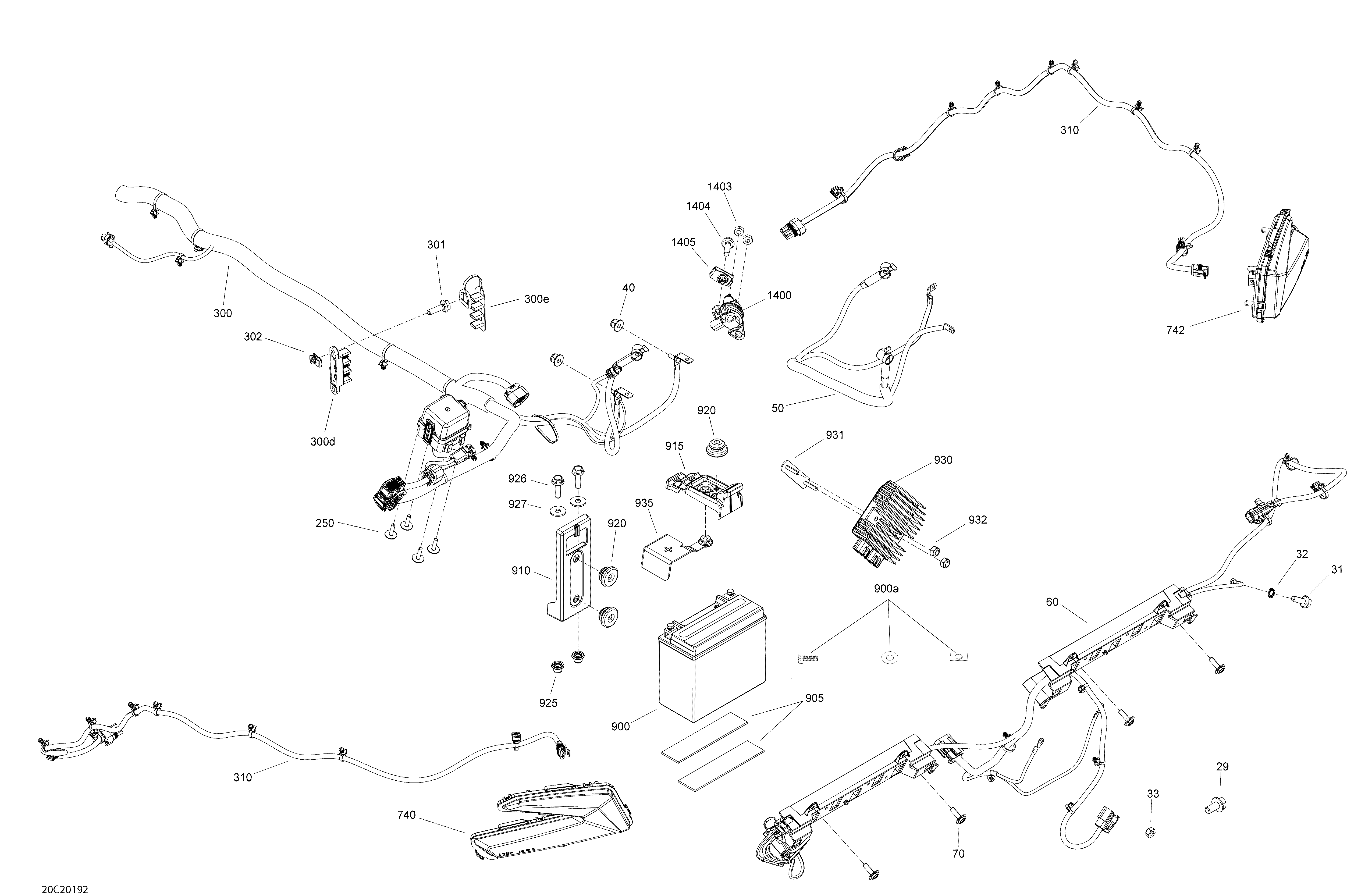

10- Electric - System - Rear Section для BRP 009 - Maverick MAX Turbo RR - XMR - North America - 2020
-
№АртикулНазвание
-
29207581644 Hex. Flanged Screw M8 X 16, Scotch GripHex. Flanged Screw M8 X 16, Scotch Grip
-
31207561644 Hex.Fla. Screw M6 X 16, Scotch GripHex.Fla. Screw M6 X 16, Scotch Grip
-
32234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
33232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
40233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
50710006022 Starter Wiring HarnessStarter Wiring Harness
-
60710006809 Wiring Harness JunctionWiring Harness Junction
-
70250000959 Screw PT Type K-50 X 16Screw PT Type K-50 X 16
-
250250000725 Screw M4 X 16Screw M4 X 16
-
300710006660 Main Wiring Harness Long. Includes 300 to 300eMain Wiring Harness Long. Includes 300 to 300e
-
300d710004825 3-Positions Pole3-Positions Pole
-
300e710006610 Junction Block CoverJunction Block Cover
-
301207562054 Flanged Hex. Screw S.GRIP M6 X 20Flanged Hex. Screw S.GRIP M6 X 20
-
302250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
310710006424 Rear Wiring HarnessRear Wiring Harness
-
740710004743 LH Tail LightLH Tail Light
-
742710004744 RH Tail LightRH Tail Light
-
900410301203 Battery Ass'y, 18 Amperes. Includes 900 to 900aBattery Ass'y, 18 Amperes. Includes 900 to 900a
-
900a250000282 Battery Bolt KitBattery Bolt Kit
-
905293830126 Rubber PadRubber Pad
-
910710004788 Fixation PlateFixation Plate
-
915710004789 Fixation PlateFixation Plate
-
920705003666 Rubber GrommetRubber Grommet
-
925250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
926207562054 Flanged Hex. Screw S.GRIP M6 X 20Flanged Hex. Screw S.GRIP M6 X 20
-
927234062410 Flat Washer 6 mmFlat Washer 6 mm
-
930710005842 Voltage RegulatorVoltage Regulator
-
931710005782 BracketBracket
-
932232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
935710006471 Battery Cable CapBattery Cable Cap
-
1400278003012 Starter RelayStarter Relay
-
1403232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
1404207562054 Flanged Hex. Screw S.GRIP M6 X 20Flanged Hex. Screw S.GRIP M6 X 20
-
1405250000957 Extruded Panel Nut M6Extruded Panel Nut M6
