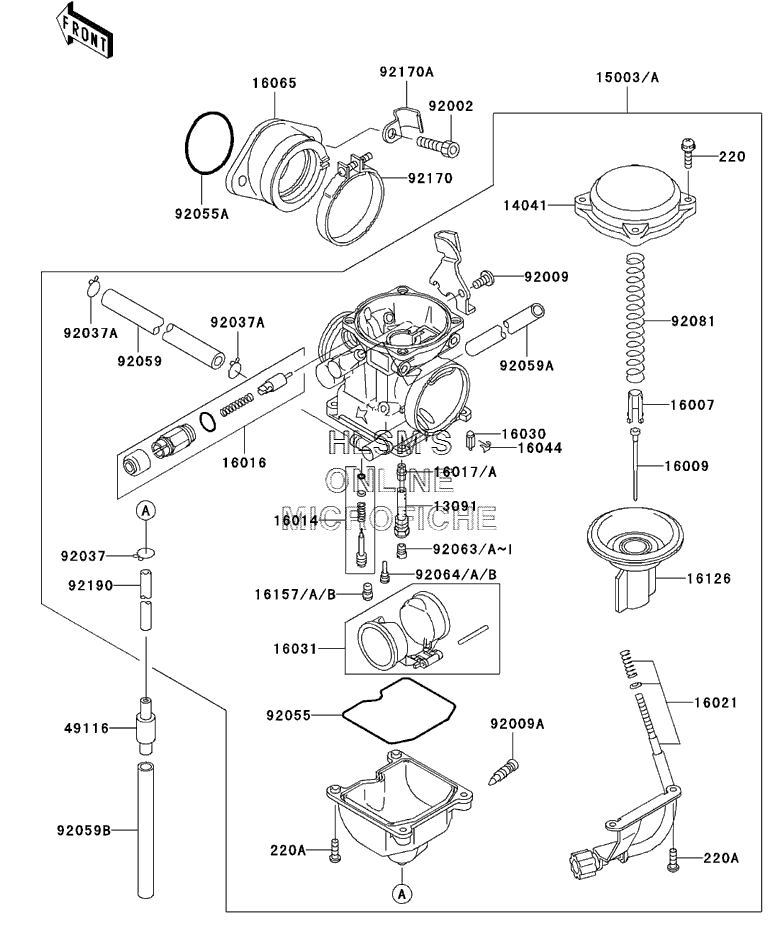

CARBURETOR для Kawasaki Bayou 300 4x4 (KLF300-C12) - 2000 года выпуска
-
№АртикулНазвание
-
1309113091-1259 HOLDER, NEEDLE JETHOLDER, NEEDLE JET
-
1404114041-1077 TOP-CHAMBER, MIXING, INSIDETOP-CHAMBER, MIXING, INSIDE
-
1500315003-1362 CARBURETOR-ASSY (CALIF, ONLY)CARBURETOR-ASSY (CALIF, ONLY)
-
15003A15003-1377 CARBURETOR-ASSY (EXCEPT CALIF.)CARBURETOR-ASSY (EXCEPT CALIF.)
-
1600716007-1120 SEAT-SPRING, THROTTLE VALVESEAT-SPRING, THROTTLE VALVE
-
1600916009-1927 NEEDLE-JET, N24GNEEDLE-JET, N24G
-
1601416014-1081 SCREW-PILOT AIRSCREW-PILOT AIR
-
1601616016-1101 PLUNGER, STARTERPLUNGER, STARTER
-
1601716017-1270 JET-NEEDLE, #6 (EXCEPT CALIF.)JET-NEEDLE, #6 (EXCEPT CALIF.)
-
16017A16017-1286 JET-NEEDLE, #6 (CALIF, ONLY)JET-NEEDLE, #6 (CALIF, ONLY)
-
1602116021-1175 SCREW-THROTTLE STOPSCREW-THROTTLE STOP
-
1603016030-1007 VALVE-FLOATVALVE-FLOAT
-
1603116031-1077 FLOATFLOAT
-
1604416044-007 CLAMP, FLOAT VALVECLAMP, FLOAT VALVE
-
1606516065-1301 HOLDER-CARBURETORHOLDER-CARBURETOR
-
1612616126-1199 VALVE, VACUUMVALVE, VACUUM
-
1615716157-1063 JET-STARTER, #65JET-STARTER, #65
-
16157A16157-1064 JET-STARTER, #68 (OPT)JET-STARTER, #68 (OPT)
-
16157B16157-1065 JET-STARTER, #70 (OPT)JET-STARTER, #70 (OPT)
-
4911649116-1126 VALVE-ASSYVALVE-ASSY
-
9200292002-1143 BOLT, 6X16BOLT, 6X16
-
9200992009-1365 SCREW, 5X10SCREW, 5X10
-
92009A92009-1551 SCREW, DRAIN, M6X0.75SCREW, DRAIN, M6X0.75
-
9203792037-1201 CLAMP, TUBECLAMP, TUBE
-
92037A92037-1531 CLAMP, TUBECLAMP, TUBE
-
9205592055-1222 RING-O, FLOAT CHAMBERRING-O, FLOAT CHAMBER
-
92055A92055-1295 RING-O, 38MMRING-O, 38MM
-
9205992059-1463 TUBE, 6.5X11.5X150TUBE, 6.5X11.5X150
-
92059A92059-1727 TUBE, 6.5X9.5X430TUBE, 6.5X9.5X430
-
92059B92059-1736 TUBE, 7X10X100TUBE, 7X10X100
-
9206392063-1013 JET-MAIN, #140 (EXCEPT CALIF.)JET-MAIN, #140 (EXCEPT CALIF.)
-
220220B0408 SCREW-PAN-CROSSCREW-PAN-CROS
-
92063A92063-1014 JET-MAIN, #135 (EXCEPT CALIF.)JET-MAIN, #135 (EXCEPT CALIF.)
-
92063B92063-1015 JET-MAIN, #138 (EXCEPT CALIF.)JET-MAIN, #138 (EXCEPT CALIF.)
-
92063C92063-1016 JET-MAIN, #142 (EXCEPT CALIF.)JET-MAIN, #142 (EXCEPT CALIF.)
-
92063D92063-1069 JET-MAIN, #125 (CALIF, ONLY)JET-MAIN, #125 (CALIF, ONLY)
-
92063E92063-1072 JET-MAIN, #120 (CALIF, ONLY)JET-MAIN, #120 (CALIF, ONLY)
-
92063F92063-1073 JET-MAIN, #122 (CALIF, ONLY)JET-MAIN, #122 (CALIF, ONLY)
-
92063G92063-1074 JET-MAIN, #128 (CALIF, ONLY)JET-MAIN, #128 (CALIF, ONLY)
-
92063H92063-1075 JET-MAIN, #130 (CALIF, ONLY)JET-MAIN, #130 (CALIF, ONLY)
-
92063I92063-1076 JET-MAIN, #132 (EXCEPT CALIF.)JET-MAIN, #132 (EXCEPT CALIF.)
-
9206492064-1101 JET-PILOT, #35 (OPT)JET-PILOT, #35 (OPT)
-
92064A92064-1119 JET-PILOT, #38JET-PILOT, #38
-
92064B92064-1125 JET-PILOT, #40 (OPT)JET-PILOT, #40 (OPT)
-
9208192081-1775 SPRING, VACUUM VALVESPRING, VACUUM VALVE
-
9217092170-1438 CLAMPCLAMP
-
92170A92170-1552 CLAMPCLAMP
-
9219092190-1557 TUBE, 4.5X8X330TUBE, 4.5X8X330
-
220A220D0414 SCREW-PAN-CROSSCREW-PAN-CROS
