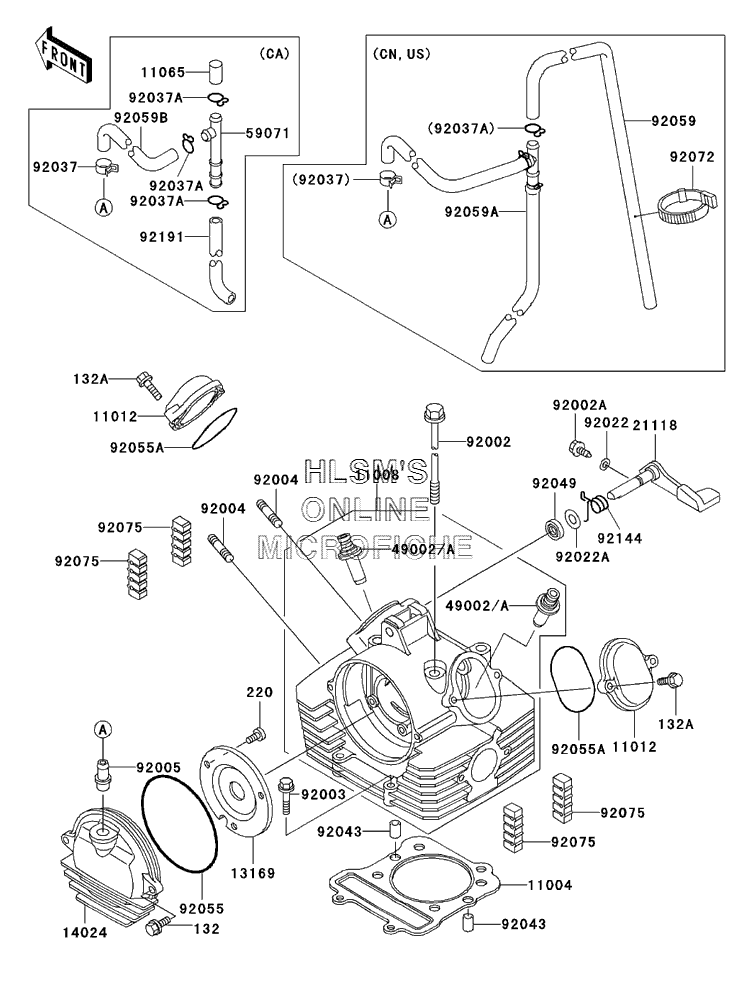

CYLINDER HEAD для Kawasaki Bayou 300 4x4 (KLF300-C12) - 2000 года выпуска
-
№АртикулНазвание
-
1100411004-1340 GASKET-HEADGASKET-HEAD
-
1100811008-1292 HEAD-COMP-CYLINDERHEAD-COMP-CYLINDER
-
1101211012-1486 CAP, ROCKER ARMCAP, ROCKER ARM
-
1106511065-1075 CAP (CALIF, ONLY)CAP (CALIF, ONLY)
-
1316913169-1961 PLATE, CAMSHAFT COVERPLATE, CAMSHAFT COVER
-
1402414024-1060 COVER, CAMSHAFTCOVER, CAMSHAFT
-
2111821118-1062 DECOMPRESSOR, LEVERDECOMPRESSOR, LEVER
-
4900249002-1092 GUIDE-VALVE (CALIF, ONLY)GUIDE-VALVE (CALIF, ONLY)
-
49002A49002-1092 GUIDE-VALVE (EXCEPT CALIF.)GUIDE-VALVE (EXCEPT CALIF.)
-
5907159071-1124 JOINT (CALIF, ONLY)JOINT (CALIF, ONLY)
-
9200292002-1515 BOLT, 8X233BOLT, 8X233
-
92002A92002-1962 BOLT, DECOMPRESSORBOLT, DECOMPRESSOR
-
9200392003-229 BOLT, FLANGED, 6X32BOLT, FLANGED, 6X32
-
9200492004-1121 STUD, 8X30STUD, 8X30
-
9200592005-1124 FITTING, BREATHER PIPEFITTING, BREATHER PIPE
-
9202292022-077 WASHER, 6.1X12X1WASHER, 6.1X12X1
-
92022A92022-1649 WASHER, 10.2X20X0.5WASHER, 10.2X20X0.5
-
9203792037-1181 CLAMPCLAMP
-
92037A92037-1271 CLAMP, FUEL TUBE (EXCEPT CALIF.)CLAMP, FUEL TUBE (EXCEPT CALIF.)
-
92037A92037-1271 CLAMP, FUEL TUBE (CALIF, ONLY)CLAMP, FUEL TUBE (CALIF, ONLY)
-
9204392043-1264 PIN, 8.2X10X14PIN, 8.2X10X14
-
9204992049-1542 SEAL-OILSEAL-OIL
-
9205592055-107 RING-O, 99MMRING-O, 99MM
-
92055A92055-112 RING-O, 53.5X2.6RING-O, 53.5X2.6
-
9205992059-1511 TUBE, BREATHER (EXCEPT CALIF.)TUBE, BREATHER (EXCEPT CALIF.)
-
92059A92059-1787 TUBE, ASSY (EXCEPT CALIF.)TUBE, ASSY (EXCEPT CALIF.)
-
92059B92059-1789 TUBE (CALIF, ONLY)TUBE (CALIF, ONLY)
-
132132Y0616 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
132A132Y0625 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
220220B0610 SCREW-PAN-CROS, 6X10SCREW-PAN-CROS, 6X10
-
9207292072-031 BAND, L=149 (EXCEPT CALIF.)BAND, L=149 (EXCEPT CALIF.)
-
9207592075-1657 DAMPERDAMPER
-
9214492144-1154 SPRING, DECOMPRESSORSPRING, DECOMPRESSOR
-
9219192191-1170 TUBE (CALIF, ONLY)TUBE (CALIF, ONLY)
