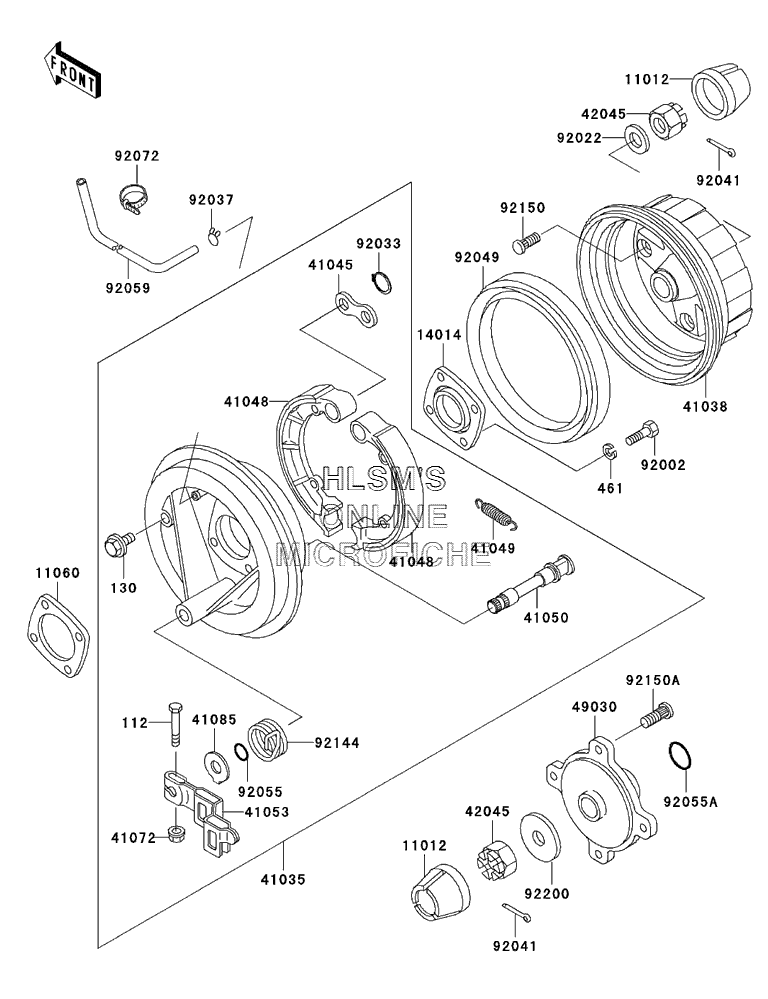

REAR HUB для Kawasaki Bayou 300 4x4 (KLF300-C12) - 2000 года выпуска
-
№АртикулНазвание
-
112112H0640 BOLT-UPSETBOLT-UPSET
-
130130B1012 BOLT-FLANGED, 10X12BOLT-FLANGED, 10X12
-
461461F1000 WASHER-SPRING, 10MMWASHER-SPRING, 10MM
-
1101211012-1969 CAP, WHEELCAP, WHEEL
-
1106011060-1561 GASKETGASKET
-
1401414014-1072 PLATE-POSITIONPLATE-POSITION
-
4103541035-1305 PANEL-ASSY-BRAKE, REAR (RIGHT)PANEL-ASSY-BRAKE, REAR (RIGHT)
-
4103841038-1202 DRUM, REAR BRAKEDRUM, REAR BRAKE
-
4104541045-006 WASHERWASHER
-
4104841048-1082 SHOE-BRAKESHOE-BRAKE
-
4104941049-012 SPRING, BRAKE SHOESPRING, BRAKE SHOE
-
4105041050-1077 CAM-BRAKECAM-BRAKE
-
4105341053-1078 LEVER-BRAKE CAMLEVER-BRAKE CAM
-
4107241072-007 NUT, 6MMNUT, 6MM
-
4108541085-1062 INDICATORINDICATOR
-
4204542045-018 NUT, CASTLE, 18MMNUT, CASTLE, 18MM
-
4903049030-1104 HUB, REAR (LEFT)HUB, REAR (LEFT)
-
9200292002-1918 BOLT, 10X30BOLT, 10X30
-
9202292022-1658 WASHER, 18.3X34X4.5WASHER, 18.3X34X4.5
-
9203392033-1250 RING-SNAP, 15MMRING-SNAP, 15MM
-
9203792037-147 CLAMP, TUBECLAMP, TUBE
-
9204192041-1053 COTTER, 4.0X35COTTER, 4.0X35
-
9204992049-1312 SEAL-OIL, SD07 190 225 16 NSSEAL-OIL, SD07 190 225 16 NS
-
9205592055-1376 RING-O, ID=16.4RING-O, ID=16.4
-
92055A92055-1459 RING-O, ID=24.5RING-O, ID=24.5
-
9205992059-1968 TUBE, 4.7X9.5X1240TUBE, 4.7X9.5X1240
-
9207292072-030 BAND, L=123BAND, L=123
-
9214492144-1365 SPRINGSPRING
-
9215092150-1110 BOLT, 10MMBOLT, 10MM
-
92150A92150-1289 BOLTBOLT
-
9220092200-1474 WASHER, 18.5X52X4.5WASHER, 18.5X52X4.5
