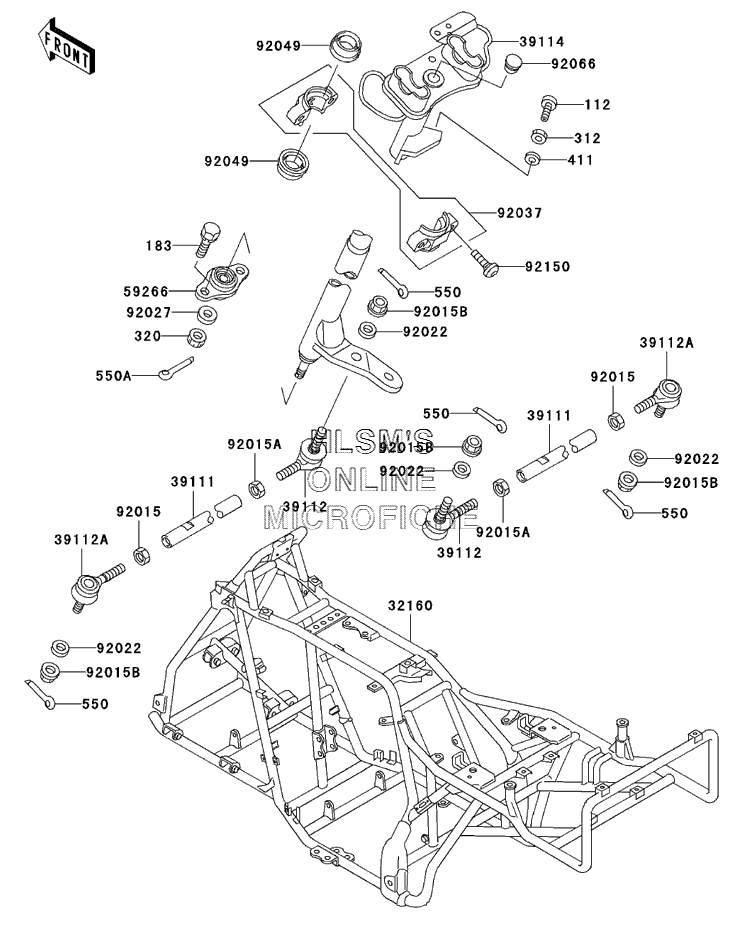

FRAME для Kawasaki Bayou 300 4x4 (KLF300-C12) - 2000 года выпуска
-
№АртикулНазвание
-
112112P0620 BOLT-UPSETBOLT-UPSET
-
183183G0822 BOLT-UPSET-WS-SMALLBOLT-UPSET-WS-SMALL
-
312312B0600 NUT-HEX, 6MMNUT-HEX, 6MM
-
320320H1000 NUT-CASTLENUT-CASTLE
-
411411B0600 WASHER-PLAIN, 6MMWASHER-PLAIN, 6MM
-
550550D2015 PIN-COTTER, 2.0X15PIN-COTTER, 2.0X15
-
550A550D2518 PIN-COTTER, 2.5X18PIN-COTTER, 2.5X18
-
3216032160-1467 FRAME-COMPFRAME-COMP
-
3911139111-1090 ROD-TIEROD-TIE
-
3911239112-1063 RODEND-TIERODEND-TIE
-
39112A39112-1064 RODEND-TIERODEND-TIE
-
3911439114-1068 SHAFT-COMP-STEERINGSHAFT-COMP-STEERING
-
5926659266-1066 JOINT-BALLJOINT-BALL
-
9201592015-1460 NUT, LOCK, 10MMNUT, LOCK, 10MM
-
92015A92015-1494 NUT, LOCK, 10MMNUT, LOCK, 10MM
-
92015B92015-1717 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
-
9202292022-239 WASHER, 10.5X20X1WASHER, 10.5X20X1
-
9202792027-1817 COLLAR, 10X21.3X7COLLAR, 10X21.3X7
-
9203792037-1975 CLAMP, STEERING SHAFTCLAMP, STEERING SHAFT
-
9204992049-1278 SEAL-OIL, SR7 25 34 7.8 NSSEAL-OIL, SR7 25 34 7.8 NS
-
9206692066-1220 PLUGPLUG
-
9215092150-1058 BOLTBOLT
