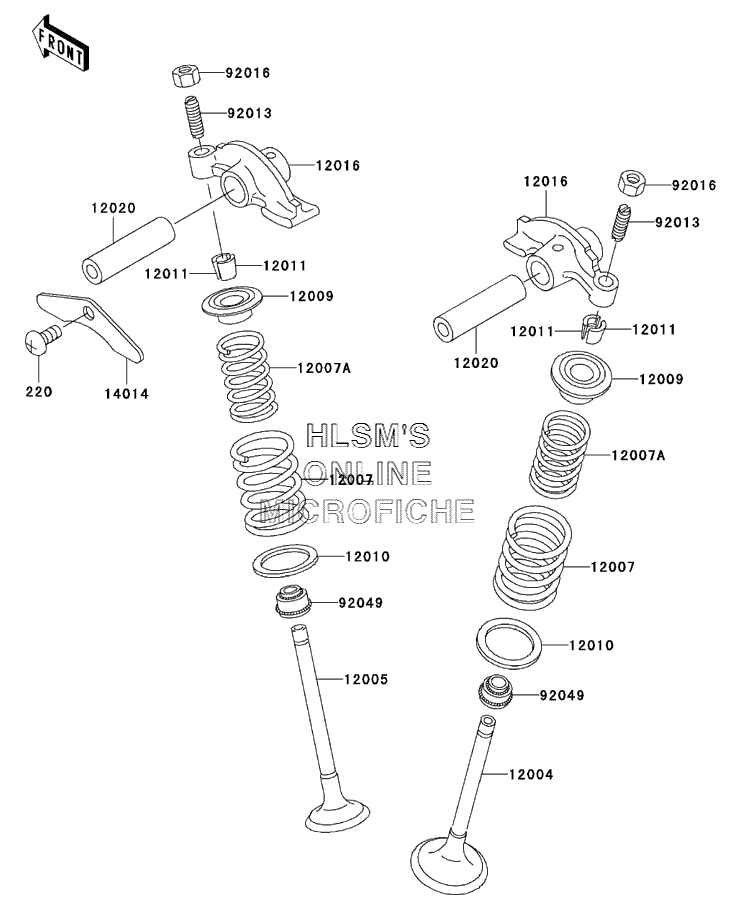

VALVE(S) для Kawasaki Bayou 300 4x4 (KLF300-C12) - 2000 года выпуска
-
№АртикулНазвание
-
220220B0610 SCREW-PAN-CROS, 6X10SCREW-PAN-CROS, 6X10
-
1200412004-1123 VALVE-INTAKEVALVE-INTAKE
-
1200512005-1005 VALVE-EXHAUSTVALVE-EXHAUST
-
1200712007-013 SPRING-ENGINE VALVE, OUTERSPRING-ENGINE VALVE, OUTER
-
12007A12007-014 SPRING-ENGINE VALVE, INNERSPRING-ENGINE VALVE, INNER
-
1200912009-006 RETAINER-VALVE SPRINGRETAINER-VALVE SPRING
-
1201012010-005 SEAT-SPRING, OUTERSEAT-SPRING, OUTER
-
1201112011-004 COLLET, RETAINERCOLLET, RETAINER
-
1201612016-1078 ARM-ROCKERARM-ROCKER
-
1202012020-004 SHAFT-ROCKERSHAFT-ROCKER
-
1401414014-034 PLATE-POSITIONPLATE-POSITION
-
9201392013-009 SCREW, 6MMSCREW, 6MM
-
9201692016-061 NUT, 6MMNUT, 6MM
-
9204992049-016 SEAL-OIL, RV37129.5SEAL-OIL, RV37129.5
