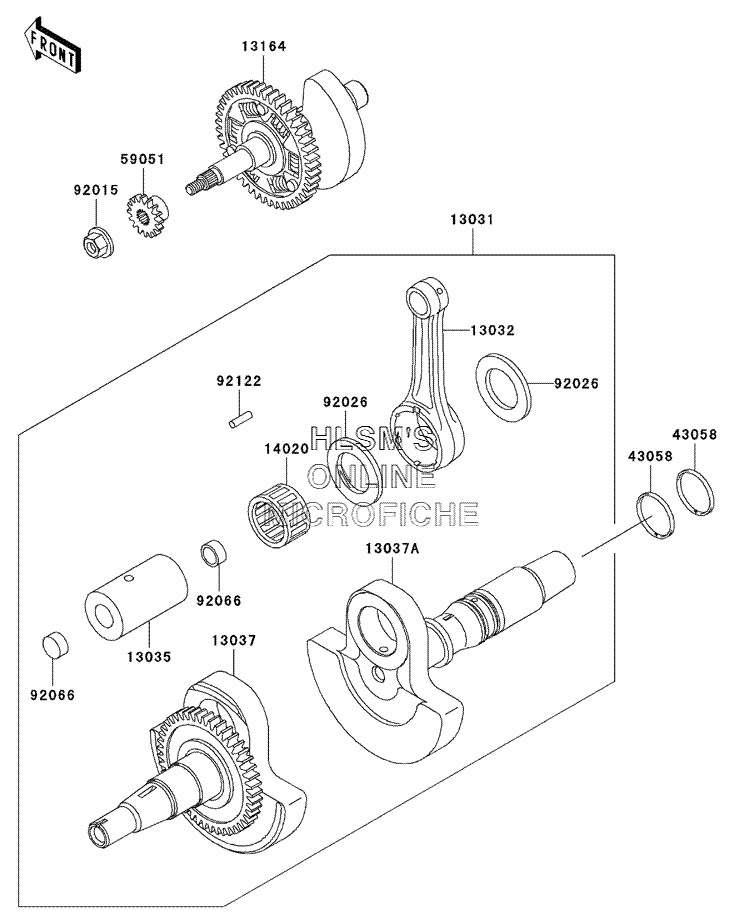

CRANKSHAFT для Kawasaki Prairie 400 4x4 (KVF400-C3) - 2001 года выпуска
-
№АртикулНазвание
-
1303113031-1447 CRANKSHAFT-COMPCRANKSHAFT-COMP
-
1303213032-1180 ROD-CONNECTINGROD-CONNECTING
-
1303513035-1078 PIN-CRANKPIN-CRANK
-
1303713037-1591 CRANKSHAFT (LEFT)CRANKSHAFT (LEFT)
-
13037A13037-1592 CRANKSHAFT (RIGHT)CRANKSHAFT (RIGHT)
-
1316413164-1012 BALANCER-COMPBALANCER-COMP
-
1402014020-1094 RETAINERRETAINER
-
4305843058-1086 RINGRING
-
5905159051-1344 GEAR-SPUR (16 TEETH)GEAR-SPUR (16 TEETH)
-
9201592015-1696 NUT, FLANGED, LOCK, 8MMNUT, FLANGED, LOCK, 8MM
-
9202692026-1204 SPACER, 38X58X1.5SPACER, 38X58X1.5
-
9206692066-1154 PLUGPLUG
-
9212292122-1163 ROLLER, B6ROLLER, B6
