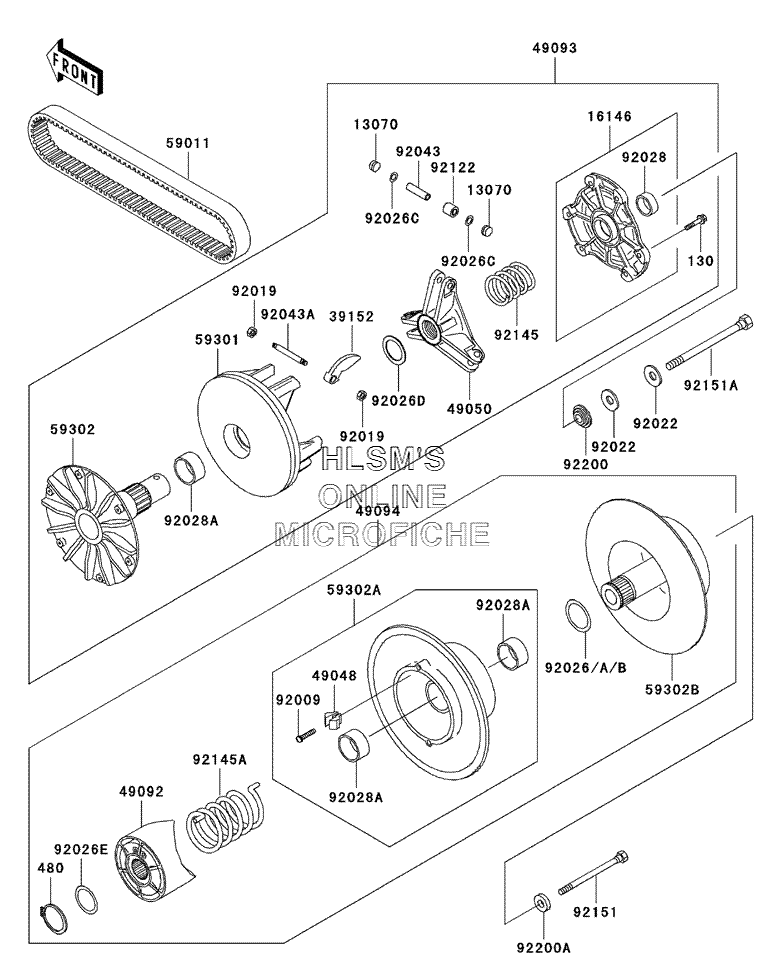

DRIVE CONVERTER для Kawasaki Prairie 400 4x4 (KVF400-C3) - 2001 года выпуска
-
№АртикулНазвание
-
130130P0630 BOLT-FLANGED, 6X30BOLT-FLANGED, 6X30
-
480480J3400 CIRCLIPCIRCLIP
-
1307013070-1330 GUIDEGUIDE
-
1614616146-1194 COVER-ASSYCOVER-ASSY
-
3915239152-1064 WEIGHT-RAMPWEIGHT-RAMP
-
4904849048-1060 SHOESHOE
-
4905049050-1064 SPIDERSPIDER
-
4909249092-1062 RAMPRAMP
-
4909349093-1060 CONVERTER-ASSY-DRIVECONVERTER-ASSY-DRIVE
-
4909449094-1060 CONVERTER-ASSY-DRIVENCONVERTER-ASSY-DRIVEN
-
5901159011-1066 BELTBELT
-
5930159301-1060 SHEAVE-MOVABLESHEAVE-MOVABLE
-
5930259302-1070 SHEAVE-COMP, FIXEDSHEAVE-COMP, FIXED
-
59302A59302-1072 SHEAVE-COMP, MOVABLESHEAVE-COMP, MOVABLE
-
59302B59302-1073 SHEAVE-COMP, FIXEDSHEAVE-COMP, FIXED
-
9200992009-1849 SCREW, SHOESCREW, SHOE
-
9201992019-008 NUT, LOCK, 6MMNUT, LOCK, 6MM
-
9202292022-1901 WASHER, SPECIAL CONICALWASHER, SPECIAL CONICAL
-
9202692026-1507 SPACER, 39X50X0.50SPACER, 39X50X0.50
-
92026A92026-1508 SPACER, 39X50X0.60SPACER, 39X50X0.60
-
92026B92026-1510 SPACER, 39X50X0.80SPACER, 39X50X0.80
-
92026C92026-1512 SPACERSPACER
-
92026D
