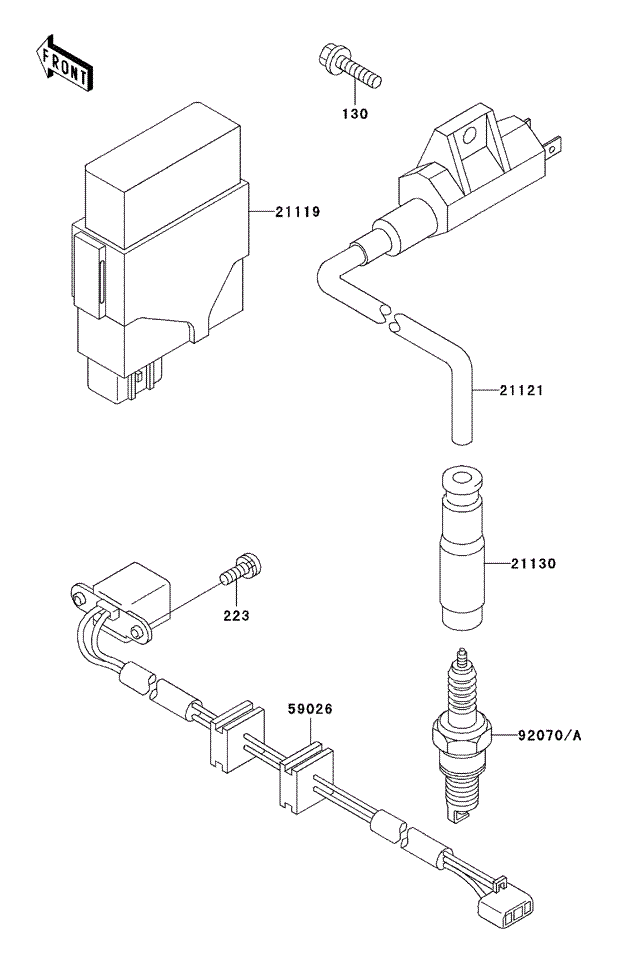

IGNITION SYSTEM для Kawasaki Prairie 400 4x4 (KVF400-C3) - 2001 года выпуска
-
№АртикулНазвание
-
130130D0616 BOLT-FLANGED, 6X16BOLT-FLANGED, 6X16
-
223223B0514 SCREW-PAN-WS-CROS, 5X14SCREW-PAN-WS-CROS, 5X14
-
2111921119-1531 IGNITERIGNITER
-
2112121121-1160 COIL-IGNITIONCOIL-IGNITION
-
2113021130-1071 CAP-SPARK PLUGCAP-SPARK PLUG
-
5902659026-1110 COIL-PULSINGCOIL-PULSING
-
9207092070-1065 PLUG-SPARK, DPR8EA-9(NGK)PLUG-SPARK, DPR8EA-9(NGK)
