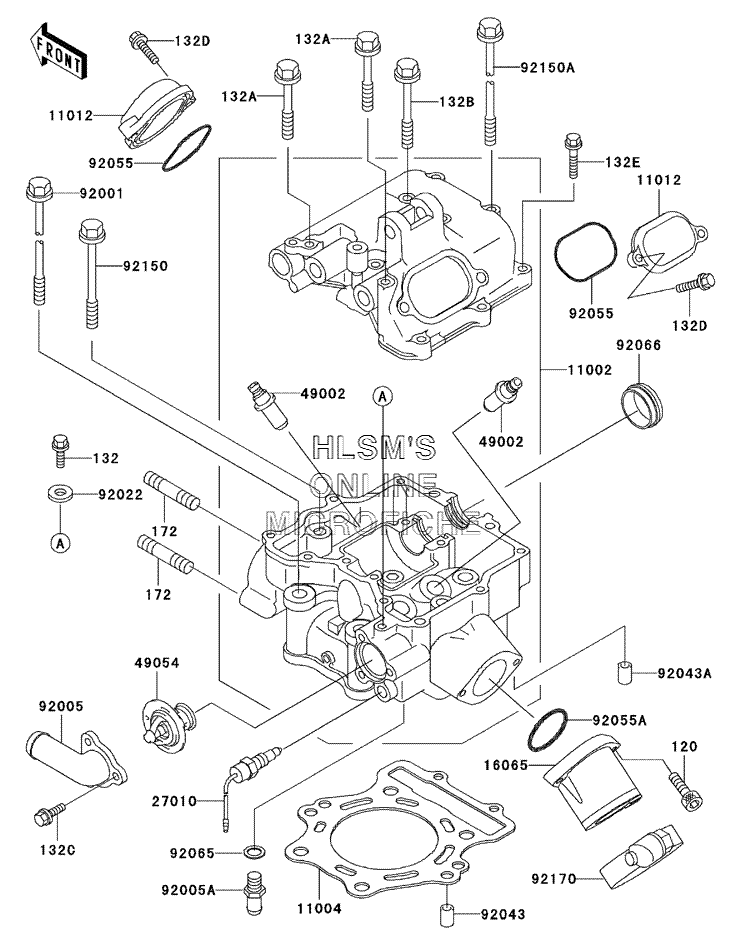

CYLINDER HEAD для Kawasaki Prairie 400 4x4 (KVF400-C3) - 2001 года выпуска
-
№АртикулНазвание
-
120120S0620 BOLT-SOCKET, 6X20BOLT-SOCKET, 6X20
-
132132G0610 BOLT-FLANGED-SMALL, 6X10BOLT-FLANGED-SMALL, 6X10
-
132A132G0655 BOLT-FLANGED-SMALL, 6X55BOLT-FLANGED-SMALL, 6X55
-
132B132G0665 BOLT-FLANGED-SMALL, 6X65BOLT-FLANGED-SMALL, 6X65
-
132C132J0612 BOLT-FLANGED-SMALL, 6X12BOLT-FLANGED-SMALL, 6X12
-
132D132V0620 BOLT-FLANGED-SMALL, 6X20BOLT-FLANGED-SMALL, 6X20
-
132E132V0630 BOLT-FLANGED-SMALL, 6X30BOLT-FLANGED-SMALL, 6X30
-
172172G0822 BOLT-STUD, 8X22BOLT-STUD, 8X22
-
1100211002-1342 HEAD-ASSY-CYLINDERHEAD-ASSY-CYLINDER
-
1100411004-1233 GASKET-HEADGASKET-HEAD
-
1101211012-1793 CAP, ROCKER CASECAP, ROCKER CASE
-
1606516065-1337 HOLDER-CARBURETORHOLDER-CARBURETOR
-
2701027010-1346 SWITCH, SENSOR WATERSWITCH, SENSOR WATER
-
4900249002-1052 GUIDE-VALVEGUIDE-VALVE
-
4905449054-1053 THERMOSTATTHERMOSTAT
-
9200192001-1994 BOLT, FLANGED, 10X185BOLT, FLANGED, 10X185
-
9200592005-1121 FITTINGFITTING
-
92005A92005-1344 FITTINGFITTING
-
9202292022-304 WASHER, 6.2X11X1WASHER, 6.2X11X1
-
9204392043-1263 PIN, 6.2X8X14PIN, 6.2X8X14
-
92043A92043-1302 PIN, DOWEL, 8X10PIN, DOWEL, 8X10
-
9205592055-1120 RING-O, 55MMRING-O, 55MM
-
92055A92055-1342 RING-O, 39.5X2.4RING-O, 39.5X2.4
-
9206592065-058 GASKET, 10.5X16X1GASKET, 10.5X16X1
-
9206692066-1289 PLUGPLUG
-
9215092150-1531 BOLT, 8X83BOLT, 8X83
-
92150A92150-1552 BOLT, 6X135BOLT, 6X135
-
9217092170-1677 CLAMPCLAMP
