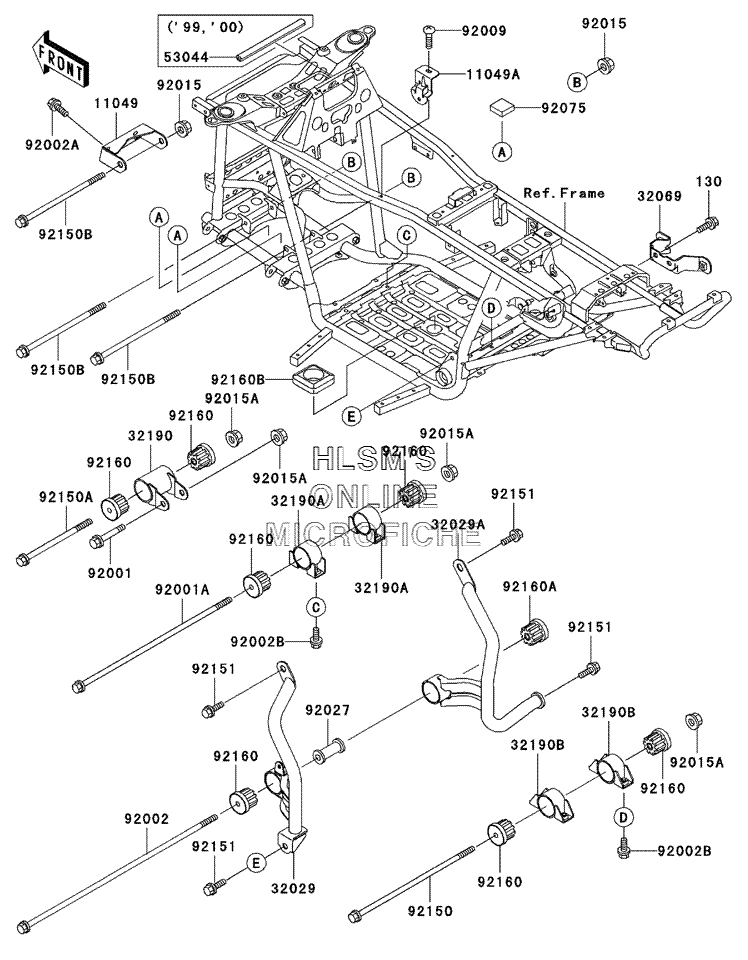

FRAME FITTINGS для Kawasaki Prairie 400 4x4 (KVF400-C3) - 2001 года выпуска
-
№АртикулНазвание
-
130130J0814 BOLT-FLANGED, 8X14BOLT-FLANGED, 8X14
-
1104911049-1524 BRACKET, DIFF MOUNTBRACKET, DIFF MOUNT
-
11049A11049-1738 BRACKETBRACKET
-
3202932029-1970 BRACKET-ENGINE, REAR (UPPER) (LEFT)BRACKET-ENGINE, REAR (UPPER) (LEFT)
-
32029A32029-1971 BRACKET-ENGINE, REAR (UPPER) (RIGHT)BRACKET-ENGINE, REAR (UPPER) (RIGHT)
-
3206932069-1547 BRACKET-MUFFLERBRACKET-MUFFLER
-
3219032190-1078 BRACKET-ENGINE, HEADBRACKET-ENGINE, HEAD
-
32190A32190-1096 BRACKET-ENGINE, FRONT (LOWER)BRACKET-ENGINE, FRONT (LOWER)
-
32190B32190-1097 BRACKET-ENGINE, REAR (LOWER)BRACKET-ENGINE, REAR (LOWER)
-
9200192001-1600 BOLT, FLANGED, 10X70BOLT, FLANGED, 10X70
-
92001A92001-1622 BOLT, FLANGED, 10X225 (BLACK)BOLT, FLANGED, 10X225 (BLACK)
-
9200292002-1531 BOLT, FLANGED, 10X230BOLT, FLANGED, 10X230
-
92002A92002-1589 BOLT, 8X14BOLT, 8X14
-
92002B92002-1645 BOLT, FLANGED, 8X16BOLT, FLANGED, 8X16
-
9200992009-1166 SCREW, TAPPING, 6X16SCREW, TAPPING, 6X16
-
9201592015-1335 NUT, FLANGED, 10MMNUT, FLANGED, 10MM
-
92015A92015-1727 NUT, FLANGED, 10MMNUT, FLANGED, 10MM
-
9202792027-275 COLLAR, L=54COLLAR, L=54
-
9207592075-1483 DAMPER, FUEL TANK, REARDAMPER, FUEL TANK, REAR
-
9215092150-1493 BOLT, FLANGED, 10X173.5BOLT, FLANGED, 10X173.5
-
92150A92150-1731 BOLT, FLANGED, 10X100BOLT, FLANGED, 10X100
-
92150B92150-1831 BOLT, FLANGED, 10X120BOLT, FLANGED, 10X120
-
9215192151-1137 BOLT, FLANGED, 10X16BOLT, FLANGED, 10X16
-
9216092160-1692 DAMPER, ENGINE MOUNTDAMPER, ENGINE MOUNT
-
92160A92160-1759 DAMPER, ENGINE MOUNTDAMPER, ENGINE MOUNT
-
92160B92160-1772 DAMPERDAMPER
