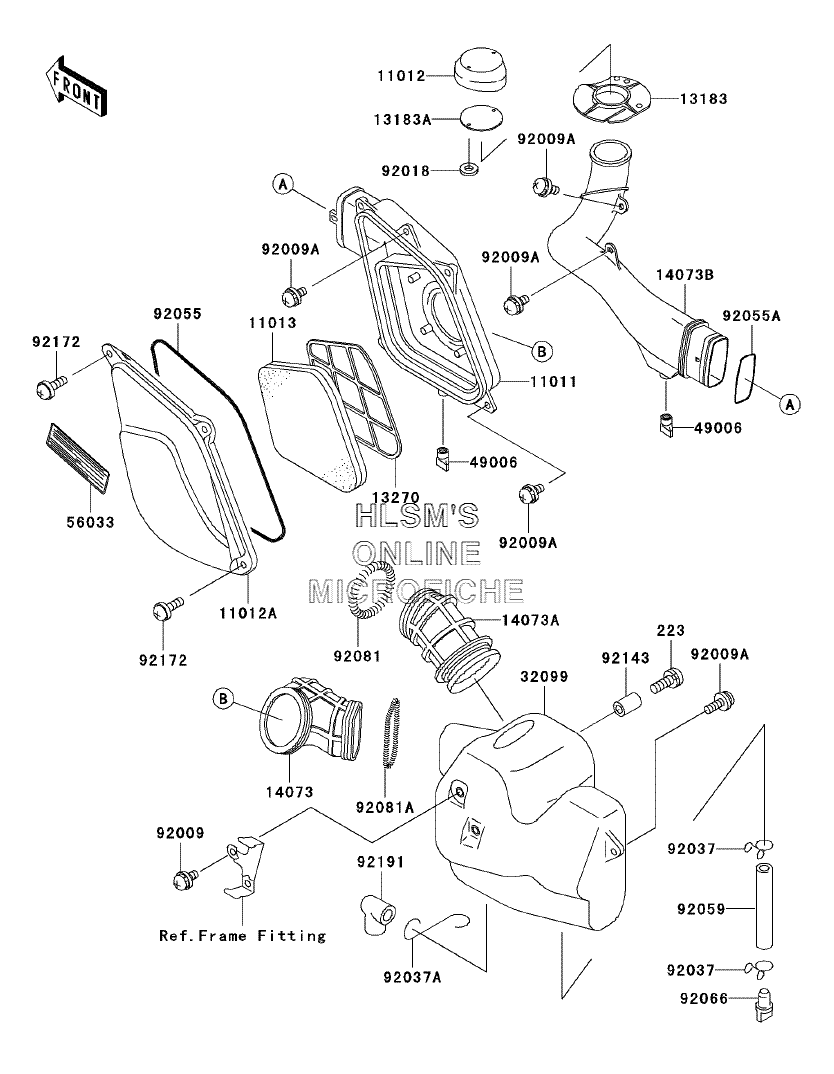

AIR CLEANER для Kawasaki Mojave 250 (KSF250-A16) - 2002 года выпуска
-
№АртикулНазвание
-
223223C0635 SCREW-PAN-WS-CROSSCREW-PAN-WS-CROS
-
1101111011-1442 CASE-AIR FILTERCASE-AIR FILTER
-
1101211012-1537 CAP, SNORKL DUCTCAP, SNORKL DUCT
-
11012A11012-1902 CAP, CAR FILTERCAP, CAR FILTER
-
1101311013-1145 ELEMENT-AIR FILTERELEMENT-AIR FILTER
-
1318313183-1019 PLATE, SNORKL DUCTPLATE, SNORKL DUCT
-
13183A13183-1020 PLATE, SNORKL CAPPLATE, SNORKL CAP
-
1327013270-1317 PLATE, ELEMENTPLATE, ELEMENT
-
1407314073-1266 DUCT, CHAMBER-AIRFILTERDUCT, CHAMBER-AIRFILTER
-
14073A14073-1267 DUCT, CARBURETER-CHAMBERDUCT, CARBURETER-CHAMBER
-
14073B14073-1629 DUCT, SNORKLDUCT, SNORKL
-
3209932099-1155 CASE, AIR CHAMBERCASE, AIR CHAMBER
-
4900649006-1292 BOOTBOOT
-
5603356033-1079 LABEL-MANUAL, MAINTENANCELABEL-MANUAL, MAINTENANCE
-
9200992009-1275 SCREW, 6X14SCREW, 6X14
-
92009A92009-1276 SCREW, 6X16SCREW, 6X16
-
9201892018-005 NUT, PUSH, 3MMNUT, PUSH, 3MM
-
9203792037-147 CLAMP, TUBECLAMP, TUBE
-
92037A92037-1821 CLAMPCLAMP
-
9205592055-1344 RING-O, AIR FILTER CASERING-O, AIR FILTER CASE
-
92055A92055-1345 RING-O, 57.3X3RING-O, 57.3X3
-
9205992059-1736 TUBE, 7X10X100TUBE, 7X10X100
-
9206692066-1211 PLUG, DRAINPLUG, DRAIN
-
9208192081-1177 SPRING, COILSPRING, COIL
-
92081A92081-1638 SPRING, DUCTSPRING, DUCT
-
9214392143-1046 COLLARCOLLAR
-
9217292172-0002 SCREW, 6X18SCREW, 6X18
-
9219192191-0001 TUBE, BREATHERTUBE, BREATHER
