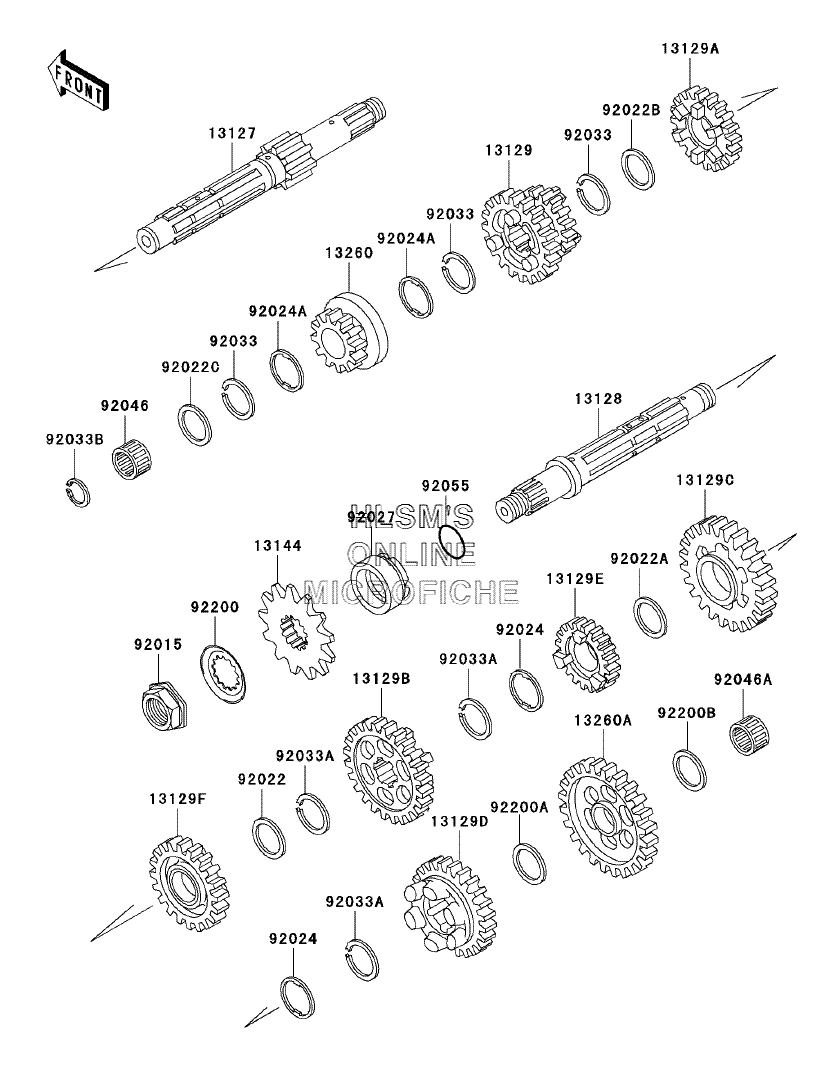

TRANSMISSION для Kawasaki Mojave 250 (KSF250-A16) - 2002 года выпуска
-
№АртикулНазвание
-
1312713127-1139 SHAFT-TRANSMISSION INPUTSHAFT-TRANSMISSION INPUT
-
1312813128-1223 SHAFT-TRANSMISSION OUTPUTSHAFT-TRANSMISSION OUTPUT
-
1312913129-1798 GEAR, INPUT 3RD AND 5TH (16/20 TEETH)GEAR, INPUT 3RD AND 5TH (16/20 TEETH)
-
13129A13129-1799 GEAR, INPUT 4TH (20 TEETH)GEAR, INPUT 4TH (20 TEETH)
-
13129B13129-1801 GEAR, OUTPUT 2ND (30 TEETH)GEAR, OUTPUT 2ND (30 TEETH)
-
13129C13129-1802 GEAR, OUTPUT 3RD (24 TEETH)GEAR, OUTPUT 3RD (24 TEETH)
-
13129D13129-1803 GEAR, OUTPUT 4TH (25 TEETH)GEAR, OUTPUT 4TH (25 TEETH)
-
13129E13129-1804 GEAR, OUTPUT 5TH (21 TEETH)GEAR, OUTPUT 5TH (21 TEETH)
-
13129F13129-1805 GEAR, OUTPUT REVERSE (24 TEETH)GEAR, OUTPUT REVERSE (24 TEETH)
-
1314413144-1255 SPROCKET-OUTPUT (12 TEETH)SPROCKET-OUTPUT (12 TEETH)
-
1326013260-1077 GEAR, INPUT 2ND (15 TEETH)GEAR, INPUT 2ND (15 TEETH)
-
13260A13260-1692 GEAR, OUTPUT LOW (30 TEETH)GEAR, OUTPUT LOW (30 TEETH)
-
9201592015-1963 NUT, 20MMNUT, 20MM
-
9202292022-159 WASHER, 25.3X30X0.5WASHER, 25.3X30X0.5
-
92022A92022-1800 WASHER, 25.3X32X1WASHER, 25.3X32X1
-
92022B92022-198 WASHER, 22.3X27X0.5WASHER, 22.3X27X0.5
-
92022C92022-255 WASHER, 17.3X28X1WASHER, 17.3X28X1
-
9202492024-038 WASHER, TOOTHED, 22.5X31X0.5WASHER, TOOTHED, 22.5X31X0.5
-
92024A92024-039 WASHER, TOOTHED, 22.5X27X0.5WASHER, TOOTHED, 22.5X27X0.5
-
9202792027-1800 COLLAR, 25X32X15.3COLLAR, 25X32X15.3
-
9203392033-025 RING-SNAP, 20X25.5X1.2RING-SNAP, 20X25.5X1.2
-
92033A92033-026 RING-SNAP, 24MMRING-SNAP, 24MM
-
92033B92033-032 RING-SNAPRING-SNAP
-
9204692046-1156 BEARING-NEEDLE, K17X25X13.8X1BEARING-NEEDLE, K17X25X13.8X1
-
92046A92046-1255 BEARING-NEEDLEBEARING-NEEDLE
-
9205592055-1293 RING-O, 21.5MMRING-O, 21.5MM
-
9220092200-1065 WASHERWASHER
-
92200A92200-1367 WASHER, 19.3X27X0.5WASHER, 19.3X27X0.5
-
92200B92200-1368 WASHER, 19.3X27X1.0WASHER, 19.3X27X1.0
