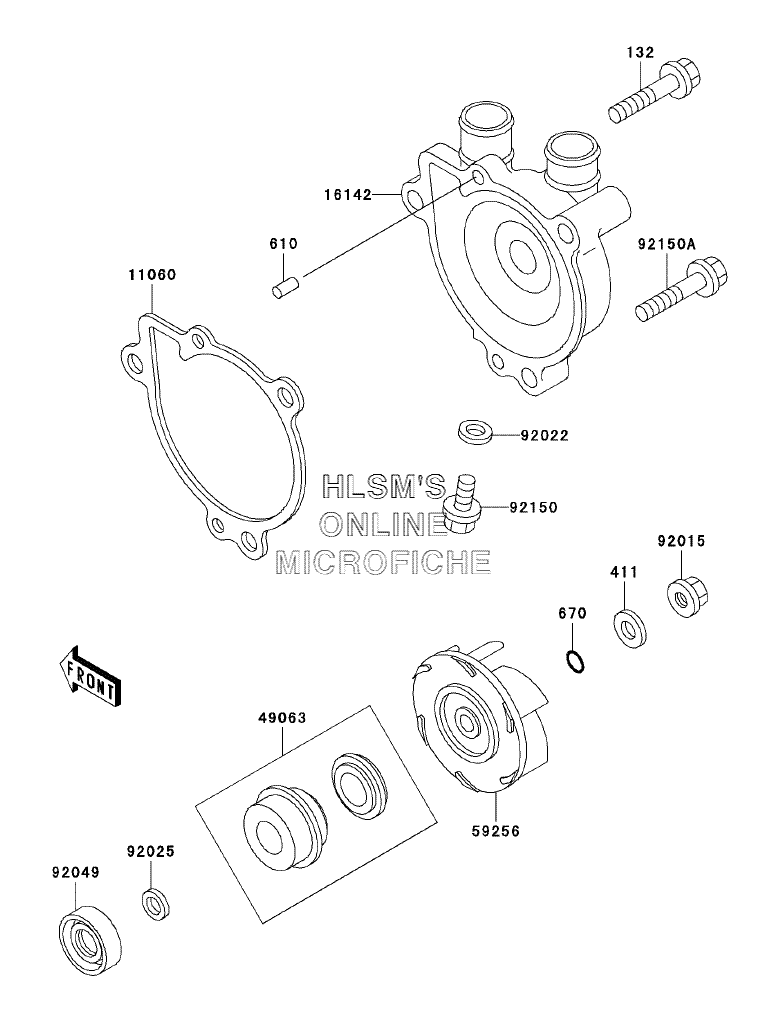

WATER PUMP для Kawasaki Mojave 250 (KSF250-A16) - 2002 года выпуска
-
№АртикулНазвание
-
132132J0645 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
411411F0600 WASHER-PLAIN, 6MM (BLACK)WASHER-PLAIN, 6MM (BLACK)
-
610610A0408 ROLLER, 4X8ROLLER, 4X8
-
670670B1506 O RING, 6MMO RING, 6MM
-
1106011060-1241 GASKET, PUMP COVERGASKET, PUMP COVER
-
1614216142-1140 COVER-PUMPCOVER-PUMP
-
4906349063-1056 SEAL-MECHANICALSEAL-MECHANICAL
-
5925659256-1055 IMPELLERIMPELLER
-
9201592015-1078 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
9202292022-304 WASHER, 6.2X11X1WASHER, 6.2X11X1
-
9202592025-1507 SHIM, T=0.8SHIM, T=0.8
-
9204992049-1157 SEAL-OIL, SC10227SEAL-OIL, SC10227
-
9215092150-1966 BOLT, 6X8BOLT, 6X8
-
92150A92150-1967 BOLT, 6X35BOLT, 6X35
