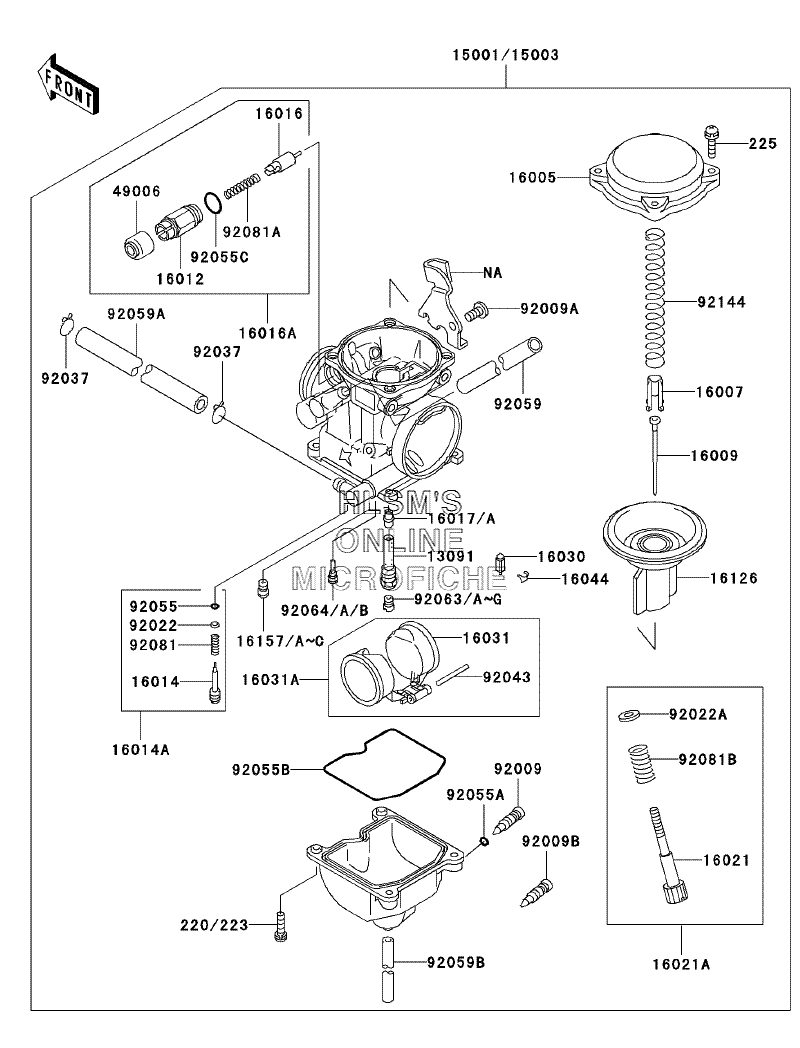

CARBURETOR для Kawasaki Mojave 250 (KSF250-A16) - 2002 года выпуска
-
№АртикулНазвание
-
1309113091-1259 HOLDER, NEEDLE JETHOLDER, NEEDLE JET
-
1500115001-1413 CARBURETOR-ASSY (EXCEPT CALIF)CARBURETOR-ASSY (EXCEPT CALIF)
-
1500315003-1372 CARBURETOR-ASSY (CALIF. ONLY)CARBURETOR-ASSY (CALIF. ONLY)
-
1600516005-1057 TOP-CHAMBER, MIXING, 27/60TOP-CHAMBER, MIXING, 27/60
-
1600716007-1134 SEAT-SPRING, VALVESEAT-SPRING, VALVE
-
1600916009-1333 NEEDLE-JET, N54CNEEDLE-JET, N54C
-
1601216012-1055 CAP-STARTER PLUNGER (EXCEPT CALIF)CAP-STARTER PLUNGER (EXCEPT CALIF)
-
1601416014-1029 SCREW-PILOT AIR (EXCEPT CALIF)SCREW-PILOT AIR (EXCEPT CALIF)
-
16014A16014-1080 SCREW-PILOT AIR (CALIF. ONLY)SCREW-PILOT AIR (CALIF. ONLY)
-
1601616016-1065 PLUNGER, STARTER (EXCEPT CALIF)PLUNGER, STARTER (EXCEPT CALIF)
-
16016A16016-1101 PLUNGER, STARTER (CALIF. ONLY)PLUNGER, STARTER (CALIF. ONLY)
-
1601716017-1319 JET-NEEDLE (EXCEPT CALIF)JET-NEEDLE (EXCEPT CALIF)
-
16017A16017-1393 JET-NEEDLE, #6 (CALIF. ONLY)JET-NEEDLE, #6 (CALIF. ONLY)
-
1602116021-1109 SCREW-THROTTLE STOP (EXCEPT CALIF)SCREW-THROTTLE STOP (EXCEPT CALIF)
-
16021A16021-1201 SCREW-THROTTLE STOP (CALIF. ONLY)SCREW-THROTTLE STOP (CALIF. ONLY)
-
1603016030-1007 VALVE-FLOATVALVE-FLOAT
-
1603116031-1056 FLOAT (EXCEPT CALIF)FLOAT (EXCEPT CALIF)
-
16031A16031-1077 FLOAT (CALIF. ONLY)FLOAT (CALIF. ONLY)
-
1604416044-007 CLAMP, FLOAT VALVECLAMP, FLOAT VALVE
-
1612616126-1180 VALVE, VACUUMVALVE, VACUUM
-
1615716157-1056 JET-STARTER, #55JET-STARTER, #55
-
16157A16157-1057 JET-STARTER, #58 (OPTION)JET-STARTER, #58 (OPTION)
-
16157B16157-1058 JET-STARTER, #60 (EXCEPT CALIF)JET-STARTER, #60 (EXCEPT CALIF)
-
16157C16157-1058 JET-STARTER, #60 (CALIF. ONLY) (OPTION)JET-STARTER, #60 (CALIF. ONLY) (OPTION)
-
4900649006-1165 BOOT, STARTER PLUNGER (EXCEPT CALIF)BOOT, STARTER PLUNGER (EXCEPT CALIF)
-
9200992009-1095 SCREW, DRAIN, M6X1.0 (EXCEPT CALIF)SCREW, DRAIN, M6X1.0 (EXCEPT CALIF)
-
92009A92009-1365 SCREW, 5X10SCREW, 5X10
-
92009B92009-1551 SCREW, DRAIN, M6X0.75SCREW, DRAIN, M6X0.75
-
9202292022-1003 WASHER, PLAIN (EXCEPT CALIF)WASHER, PLAIN (EXCEPT CALIF)
-
92022A92022-1587 WASHER, THROTTLE STOP SCREW (EXCEPT CALIF)WASHER, THROTTLE STOP SCREW (EXCEPT CALIF)
-
9203792037-1531 CLAMP, TUBECLAMP, TUBE
-
9204392043-1207 PIN, FLOAT (EXCEPT CALIF)PIN, FLOAT (EXCEPT CALIF)
-
9205592055-1002 RING-O, PILOT ADJUST (EXCEPT CALIF)RING-O, PILOT ADJUST (EXCEPT CALIF)
-
92055A92055-1053 RING-O (EXCEPT CALIF)RING-O (EXCEPT CALIF)
-
92055B92055-1222 RING-O, FLOAT CHAMBERRING-O, FLOAT CHAMBER
-
92055C92055-1416 RING-O, STARTER PLUNGER (EXCEPT CALIF)RING-O, STARTER PLUNGER (EXCEPT CALIF)
-
9205992059-1465 TUBE, 6.5X9.5X500TUBE, 6.5X9.5X500
-
92059A92059-1751 TUBE, 6.5X11.5X360TUBE, 6.5X11.5X360
-
92059B92059-1752 TUBE, 3.5X6.5X300TUBE, 3.5X6.5X300
-
9206392063-1013 JET-MAIN, #140 (CALIF. ONLY)JET-MAIN, #140 (CALIF. ONLY)
-
92063A92063-1014 JET-MAIN, #135 (OPTION)JET-MAIN, #135 (OPTION)
-
92063B92063-1015 JET-MAIN, #138 (OPTION)JET-MAIN, #138 (OPTION)
-
92063C92063-1016 JET-MAIN, #142 (CALIF. ONLY) (OPTION)JET-MAIN, #142 (CALIF. ONLY) (OPTION)
-
92063D92063-1017 JET-MAIN, #145 (CALIF. ONLY) (OPTION)JET-MAIN, #145 (CALIF. ONLY) (OPTION)
-
92063E92063-1074 JET-MAIN, #128 (EXCEPT CALIF) (OPTION)JET-MAIN, #128 (EXCEPT CALIF) (OPTION)
-
92063F92063-1075 JET-MAIN, #130 (EXCEPT CALIF) (OPTION)JET-MAIN, #130 (EXCEPT CALIF) (OPTION)
-
92063G92063-1076 JET-MAIN, #132 (EXCEPT CALIF)JET-MAIN, #132 (EXCEPT CALIF)
-
9206492064-1050 JET-PILOT, #38 (OPTION)JET-PILOT, #38 (OPTION)
-
220220D0414 SCREW-PAN-CROS (CALIF. ONLY)SCREW-PAN-CROS (CALIF. ONLY)
-
223223C0416 SCREW-PAN-WS-CROS (EXCEPT CALIF)SCREW-PAN-WS-CROS (EXCEPT CALIF)
-
225225C0418 SCREW-PAN-WSP-CROSSCREW-PAN-WSP-CROS
-
92064A92064-1101 JET-PILOT, #35JET-PILOT, #35
-
92064B92064-1117 JET-PILOT, #32 (OPTION)JET-PILOT, #32 (OPTION)
-
9208192081-1002 SPRING, PILOT ADJUST SCREW (EXCEPT CALIF)SPRING, PILOT ADJUST SCREW (EXCEPT CALIF)
-
92081A92081-1720 SPRING, PLUNGER (EXCEPT CALIF)SPRING, PLUNGER (EXCEPT CALIF)
-
92081B92081-1721 SPRING, THROTTLE STOP SCREW (EXCEPT CALIF)SPRING, THROTTLE STOP SCREW (EXCEPT CALIF)
-
9214492144-1066 SPRING, VACUUM VALVESPRING, VACUUM VALVE
