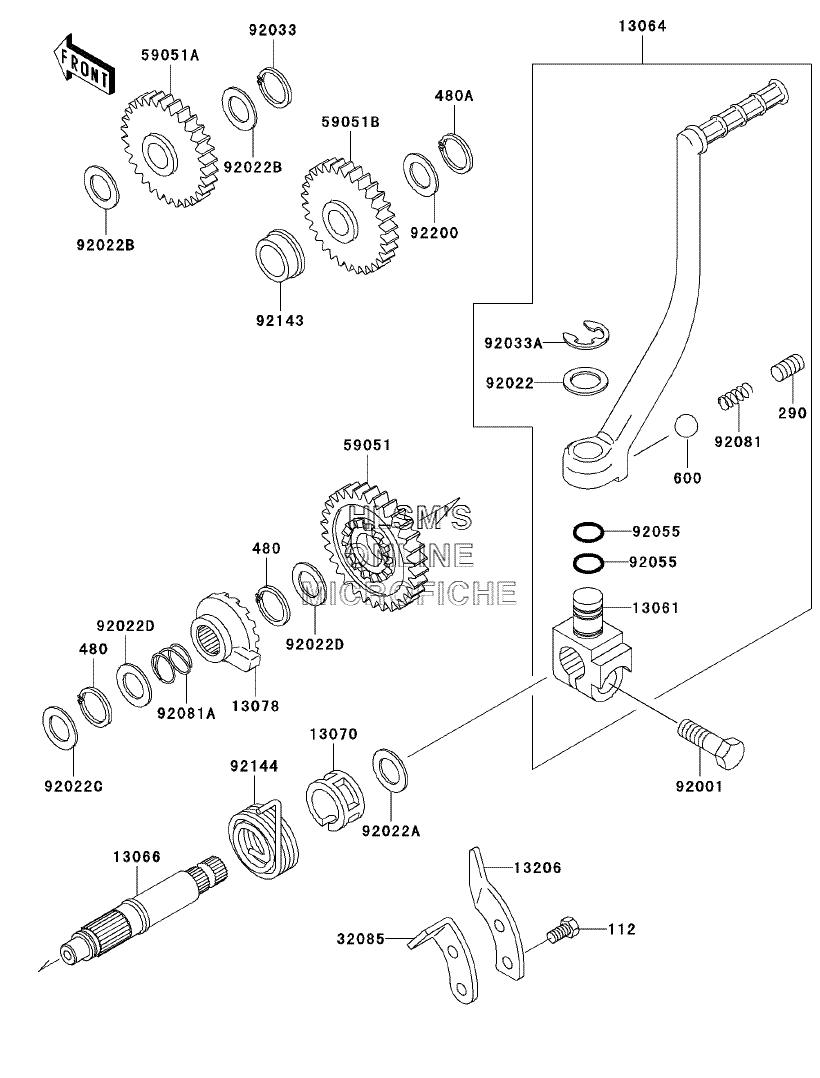

KICKSTARTER MECHANISM для Kawasaki Mojave 250 (KSF250-A16) - 2002 года выпуска
-
№АртикулНазвание
-
112112G0618 BOLT-UPSETBOLT-UPSET
-
290290Q0808 SCREW-SET-SOCKET, 8X8SCREW-SET-SOCKET, 8X8
-
480480J1600 CIRCLIP-TYPE-C, 16MMCIRCLIP-TYPE-C, 16MM
-
480A480J1900 CIRCLIP-TYPE-C, 19MMCIRCLIP-TYPE-C, 19MM
-
600600A0800 BALL-STEEL, 1/4"BALL-STEEL, 1/4"
-
1306113061-1189 BOSS, KICK PEDALBOSS, KICK PEDAL
-
1306413064-1127 LEVER-ASSY-KICKLEVER-ASSY-KICK
-
1306613066-1062 SHAFT-KICKSHAFT-KICK
-
1307013070-011 GUIDE, KICK SPRINGGUIDE, KICK SPRING
-
1307813078-1053 RATCHETRATCHET
-
1320613206-1056 GUIDE-KICKGUIDE-KICK
-
3208532085-1237 STOPPERSTOPPER
-
5905159051-1328 GEAR-SPUR, KICKSTARTER (30 TEETH)GEAR-SPUR, KICKSTARTER (30 TEETH)
-
59051A59051-1329 GEAR-SPUR, REVERSE SHAFT (21 TEETH)GEAR-SPUR, REVERSE SHAFT (21 TEETH)
-
59051B59051-1349 GEAR-SPUR, KICKSTARTER IDLEGEAR-SPUR, KICKSTARTER IDLE
-
9200192001-1042 BOLT, 8X28BOLT, 8X28
-
9202292022-1019 WASHER, 15.2X20X1WASHER, 15.2X20X1
-
92022A92022-118 WASHER, 18.5X23X1.2WASHER, 18.5X23X1.2
-
92022B92022-1799 WASHER, 17.3X22X0.5WASHER, 17.3X22X0.5
-
92022C92022-269 WASHER, 12.3X20X0.5WASHER, 12.3X20X0.5
-
92022D92022-315 WASHER, 16.8X22X0.5WASHER, 16.8X22X0.5
-
9203392033-032 RING-SNAPRING-SNAP
-
92033A92033-1166 RING-SNAP, 10MMRING-SNAP, 10MM
-
9205592055-061 RING-O, 10X1.5RING-O, 10X1.5
-
9208192081-020 SPRING, KICK PEDALSPRING, KICK PEDAL
-
92081A92081-122 SPRING, RATCHETSPRING, RATCHET
-
9214392143-1957 COLLARCOLLAR
-
9214492144-1001 SPRING, KICKSTARTERSPRING, KICKSTARTER
-
9220092200-1367 WASHER, 19.3X27X0.5WASHER, 19.3X27X0.5
