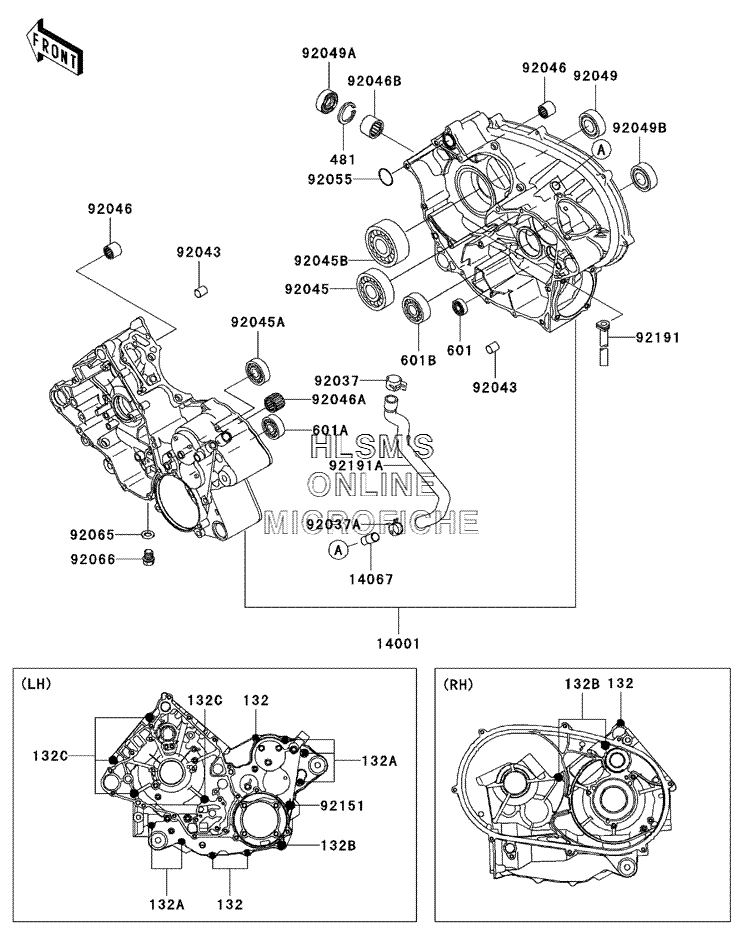

CRANKCASE для Kawasaki Prairie 650 4x4 (KVF650-A1) - 2002 года выпуска
-
№АртикулНазвание
-
132132Y0640 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
132A132Y0665 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
132B132Y08110 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
132C132Y0875 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
481481J3700 CIRCLIP-TYPE-C, 37MMCIRCLIP-TYPE-C, 37MM
-
601601A6000 BEARING-BALLBEARING-BALL
-
601A601A6004 BEARING-BALL, #6004BEARING-BALL, #6004
-
601B601A6304 BEARING-BALL, #6304BEARING-BALL, #6304
-
1400114001-1294 SET-CRANKCASESET-CRANKCASE
-
1406714067-006 FITTING, BREATHERFITTING, BREATHER
-
9203792037-1730 CLAMPCLAMP
-
92037A92037-1860 CLAMPCLAMP
-
9204392043-1037 PIN, 8.2X10X14PIN, 8.2X10X14
-
9204592045-1190 BEARING-BALL, 6306SH2BEARING-BALL, 6306SH2
-
92045A92045-1389 BEARING-BALLBEARING-BALL
-
92045B92045-1415 BEARING-BALLBEARING-BALL
-
9204692046-1118 BEARING-NEEDLE, TA202715ZEBEARING-NEEDLE, TA202715ZE
-
92046A92046-1143 BEARING-NEEDLEBEARING-NEEDLE
-
92046B92046-1277 BEARING-NEEDLEBEARING-NEEDLE
-
9204992049-1452 SEAL-OIL, TC35508SEAL-OIL, TC35508
-
92049A92049-1570 SEAL-OILSEAL-OIL
-
92049B92049-1575 SEAL-OILSEAL-OIL
-
9205592055-1136 RING-O, 25.7X2.4RING-O, 25.7X2.4
-
9206592065-097 GASKET, 12X22X2, DRAIN PLUGGASKET, 12X22X2, DRAIN PLUG
-
9206692066-1174 PLUG, OIL DRAIN, 12X15PLUG, OIL DRAIN, 12X15
-
9215192151-1689 BOLT, 8MMBOLT, 8MM
-
9219192191-1449 TUBE, OIL RETURNTUBE, OIL RETURN
-
92191A92191-1593 TUBE, BREATHERTUBE, BREATHER
