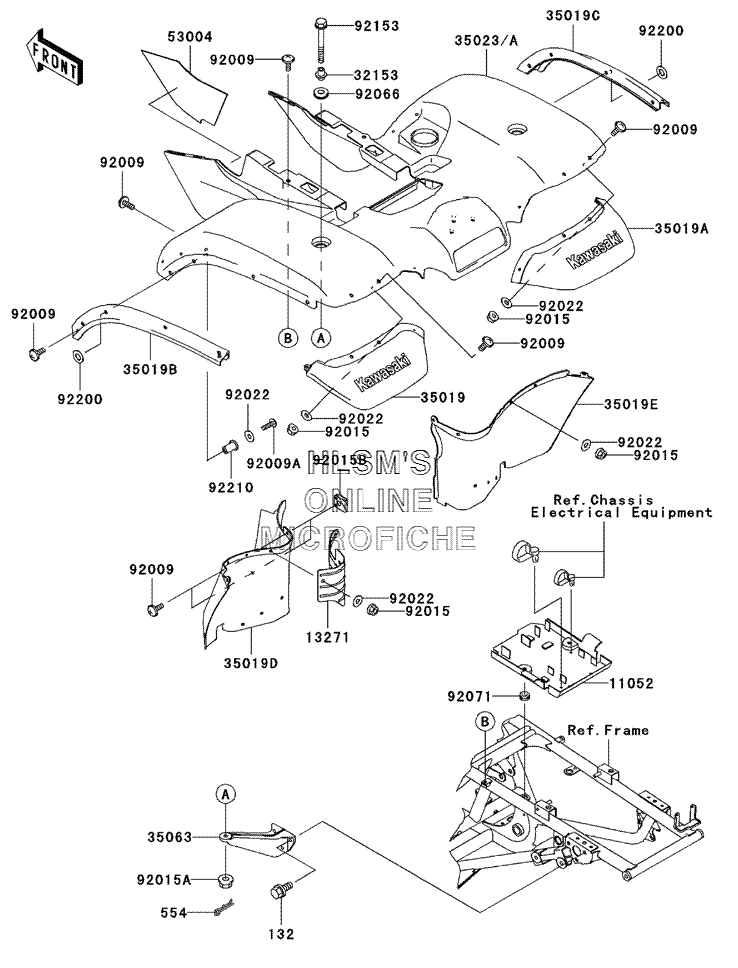

FENDER - REAR для Kawasaki Prairie 650 4x4 (KVF650-A1) - 2002 года выпуска
-
№АртикулНазвание
-
132132J0818 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
554554A0800 PIN-SNAP, 8MMPIN-SNAP, 8MM
-
1105211052-1481 BRACKET, ELCTRICBRACKET, ELCTRIC
-
1327113271-1718 PLATE, HEAT GUARDPLATE, HEAT GUARD
-
3215332153-1606 PIPE, REAR FENDERPIPE, REAR FENDER
-
3501935019-1371-6Z FLAP, REAR REAR (LEFT) (F.BLACK)FLAP, REAR REAR (LEFT) (F.BLACK)
-
35019A35019-1372-6Z FLAP, REAR REAR (RIGHT) (F.BLACK)FLAP, REAR REAR (RIGHT) (F.BLACK)
-
35019B35019-1373-6Z FLAP, REAR SIDE (LEFT) (F.BLACK)FLAP, REAR SIDE (LEFT) (F.BLACK)
-
35019C35019-1374-6Z FLAP, REAR SIDE (RIGHT) (F.BLACK)FLAP, REAR SIDE (RIGHT) (F.BLACK)
-
35019D35019-1393-6Z FLAP, REAR FRONT (LEFT) (F.BLACK)FLAP, REAR FRONT (LEFT) (F.BLACK)
-
35019E35019-1394-6Z FLAP, REAR FRONT (RIGHT) (F.BLACK)FLAP, REAR FRONT (RIGHT) (F.BLACK)
-
3502335023-1565-6A FENDER-REAR (H.GREEN)FENDER-REAR (H.GREEN)
-
35023A35023-1565-6L FENDER-REAR (F.RED)FENDER-REAR (F.RED)
-
3506335063-1100 STAY, REAR FENDERSTAY, REAR FENDER
-
5300453004-1141 MAT, REAR FENDERMAT, REAR FENDER
-
9200992009-1621 SCREW, 6X16SCREW, 6X16
-
92009A92009-1655 SCREW, 5X18SCREW, 5X18
-
9201592015-1367 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
92015A92015-1397 NUT, LOCK, FLANGED, 8MMNUT, LOCK, FLANGED, 8MM
-
92015B92015-1678 NUT, CLAMP, 6MMNUT, CLAMP, 6MM
-
9202292022-1093 WASHER, 6.5X16X1.0WASHER, 6.5X16X1.0
-
9206692066-1438 PLUGPLUG
-
9207192071-1131 GROMMETGROMMET
-
9215392153-1061 BOLT, FLANGED, 8X58BOLT, FLANGED, 8X58
-
9220092200-1037 WASHER, 9.5X18X1.2WASHER, 9.5X18X1.2
-
9221092210-1227 NUT, POP, 5MMNUT, POP, 5MM
