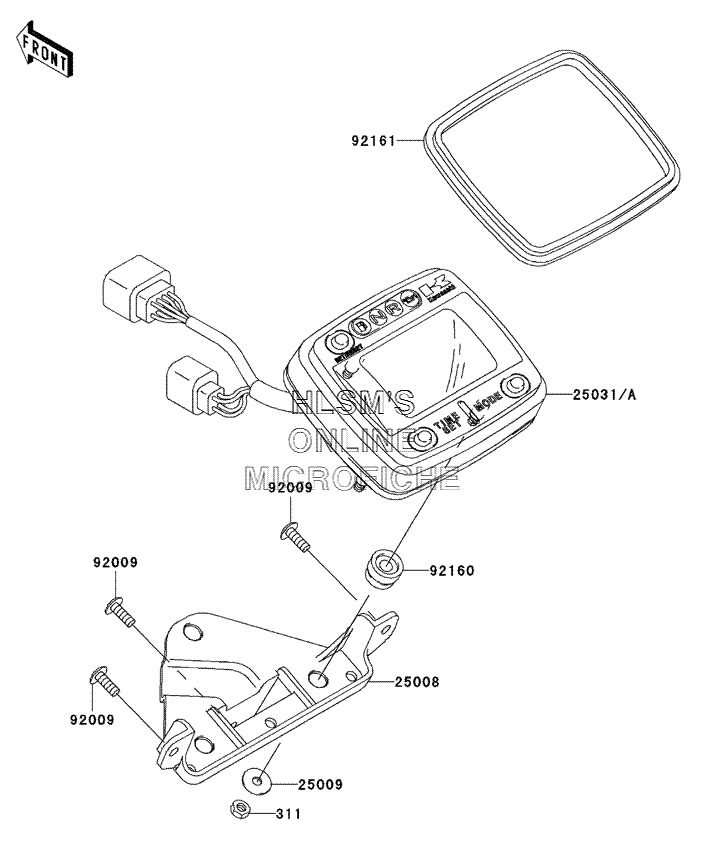

METER(S) для Kawasaki Prairie 650 4x4 (KVF650-A1) - 2002 года выпуска
-
№АртикулНазвание
-
311311C0500 NUT-HEXNUT-HEX
-
2500825008-1226 BRACKET-METERBRACKET-METER
-
2500925009-004 WASHER, 5.2X16X1.2WASHER, 5.2X16X1.2
-
2503125031-1162 METER-ASSY, MPH (US ONLY)METER-ASSY, MPH (US ONLY)
-
25031A25031-1217 METER-ASSY, KPH (CANADA ONLY)METER-ASSY, KPH (CANADA ONLY)
-
9200992009-1197 SCREW, TAPPING, 5X14SCREW, TAPPING, 5X14
-
9216092160-1460 DAMPERDAMPER
-
9216192161-1114 DAMPER, METER (UPPER)DAMPER, METER (UPPER)
