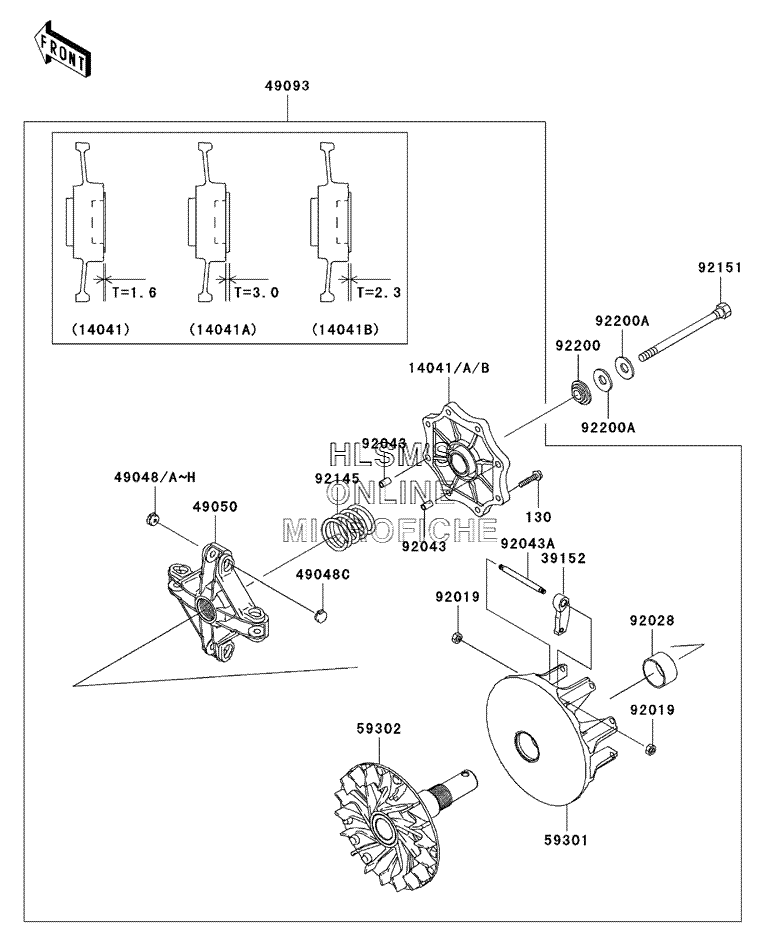

DRIVE CONVERTER для Kawasaki Prairie 650 4x4 (KVF650-A1) - 2002 года выпуска
-
№АртикулНазвание
-
130130T0630 BOLT-FLANGEDBOLT-FLANGED
-
1404114041-1148 COVER-COMP, REDCOVER-COMP, RED
-
14041A14041-1149 COVER-COMP, BLUECOVER-COMP, BLUE
-
14041B14041-1150 COVER-COMP, PAINT LESSCOVER-COMP, PAINT LESS
-
3915239152-1081 WEIGHT-RAMPWEIGHT-RAMP
-
4904849048-1078 SHOE, T=7.2SHOE, T=7.2
-
49048A49048-1079 SHOE, T=7.3SHOE, T=7.3
-
49048B49048-1080 SHOE, T=7.4SHOE, T=7.4
-
49048C49048-1081 SHOE, T=7.5SHOE, T=7.5
-
49048D49048-1082 SHOE, T=7.6SHOE, T=7.6
-
49048E49048-1083 SHOE, T=7.7SHOE, T=7.7
-
49048F49048-1084 SHOE, T=7.8SHOE, T=7.8
-
49048G49048-1085 SHOE, T=7.9SHOE, T=7.9
-
49048H49048-1086 SHOE, T=8.0SHOE, T=8.0
-
4905049050-1078 SPIDERSPIDER
-
4909349093-1072 CONVERTER-ASSY-DRIVECONVERTER-ASSY-DRIVE
-
5930159301-1062 SHEAVE-MOVABLESHEAVE-MOVABLE
-
5930259302-1077 SHEAVE-COMPSHEAVE-COMP
-
9201992019-008 NUT, LOCK, 6MMNUT, LOCK, 6MM
-
9202892028-1975 BUSHINGBUSHING
-
9204392043-1263 PIN, 6.2X8X14PIN, 6.2X8X14
-
92043A92043-1573 PINPIN
-
9214592145-1293 SPRINGSPRING
-
9215192151-1393 BOLTBOLT
-
9220092200-1503 WASHERWASHER
-
92200A92200-1504 WASHER, SPRINGWASHER, SPRING
