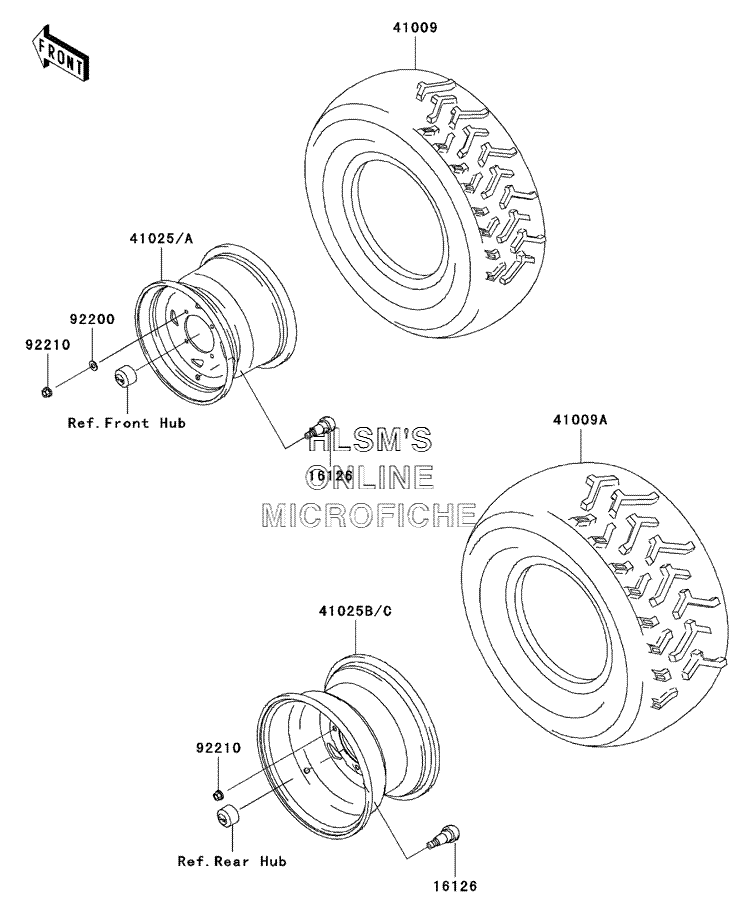

WHEELS/TIRES для Kawasaki Prairie 650 4x4 (KVF650-A1) - 2002 года выпуска
-
№АртикулНазвание
-
1612616126-4001 VALVEVALVE
-
4100941009-1117 TIRE, FRONT AT25X8-12, KT121A(D)TIRE, FRONT AT25X8-12, KT121A(D)
-
41009A41009-1380 TIRE, REAR AT25X10-12, KT127ATIRE, REAR AT25X10-12, KT127A
-
4102541025-1375-UF RIM, FRONT 12X6.0 (S.GOLD)RIM, FRONT 12X6.0 (S.GOLD)
-
41025A41025-1375-5A RIM, FRONT 12X6.0 (SILVER)RIM, FRONT 12X6.0 (SILVER)
-
41025B41025-1426-UF RIM, REAR 12X7.5AT (S.GOLD)RIM, REAR 12X7.5AT (S.GOLD)
-
41025C41025-1426-5A RIM, REAR 12X7.5AT (SILVER)RIM, REAR 12X7.5AT (SILVER)
-
9220092200-1595 WASHER, 10.5X25X1.6WASHER, 10.5X25X1.6
-
9221092210-1325 NUT, FLANGED, 10MMNUT, FLANGED, 10MM
