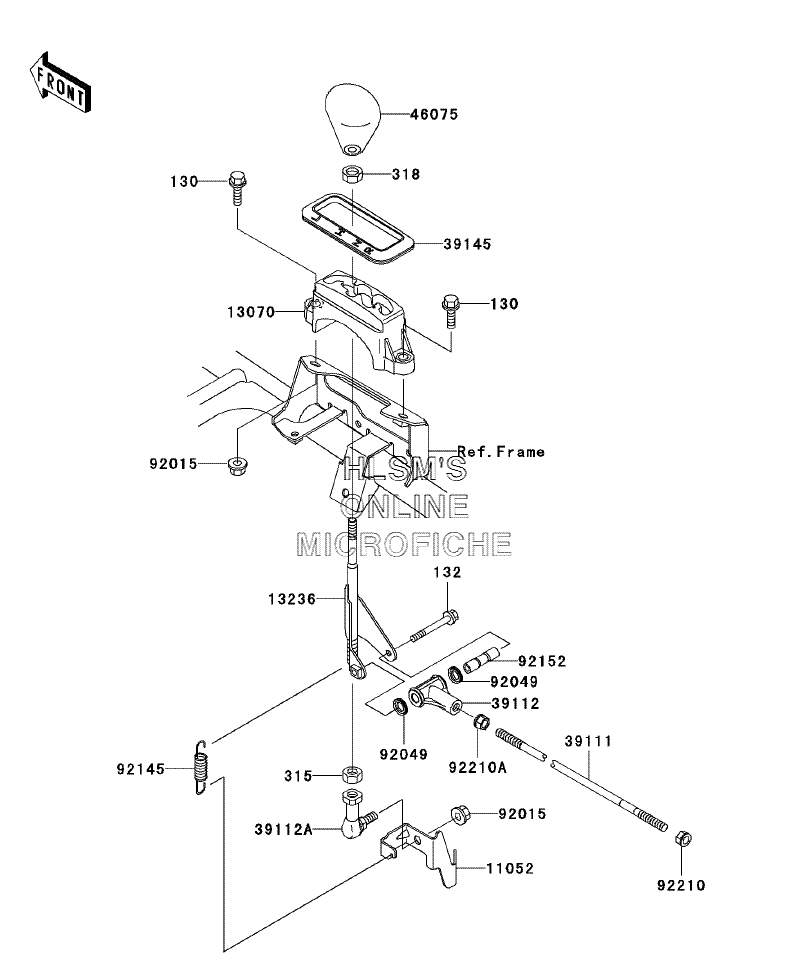

CONTROL для Kawasaki Prairie 650 4x4 (KVF650-A2) - 2003 года выпуска
-
№АртикулНазвание
-
130130Z0825 BOLT-FLANGEDBOLT-FLANGED
-
132132J0650 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
315315B1000 NUT-HEX-FINE,10MMNUT-HEX-FINE,10MM
-
318318G0800 NUT-HEX-SMALL,8MMNUT-HEX-SMALL,8MM
-
1105211052-1441 BRACKET,CONTROLBRACKET,CONTROL
-
1307013070-1396 GUIDE,CONTROL SHAFTGUIDE,CONTROL SHAFT
-
1323613236-1384 LEVER-COMP,SHIFTLEVER-COMP,SHIFT
-
3911139111-1174 ROD-TIE,SHIFTROD-TIE,SHIFT
-
3911239112-1079 RODEND-TIERODEND-TIE
-
39112A39112-1084 RODEND-TIE,CONTROL PIVOTRODEND-TIE,CONTROL PIVOT
-
3914539145-1121 TRIM-SEAL,CONTROL GUIDETRIM-SEAL,CONTROL GUIDE
-
4607546075-1185 GRIP,SHIFTGRIP,SHIFT
-
9201592015-1432 NUT,8MMNUT,8MM
-
9204992049-1458 SEAL-OILSEAL-OIL
-
9214592145-1441 SPRING,CONTROLSPRING,CONTROL
-
9215292152-1222 COLLAR,RODEND-TIECOLLAR,RODEND-TIE
-
9221092210-1242 NUT,RH,THREAD 8MMNUT,RH,THREAD 8MM
-
92210A92210-1284 NUT,LH,THREAD 8MMNUT,LH,THREAD 8MM
