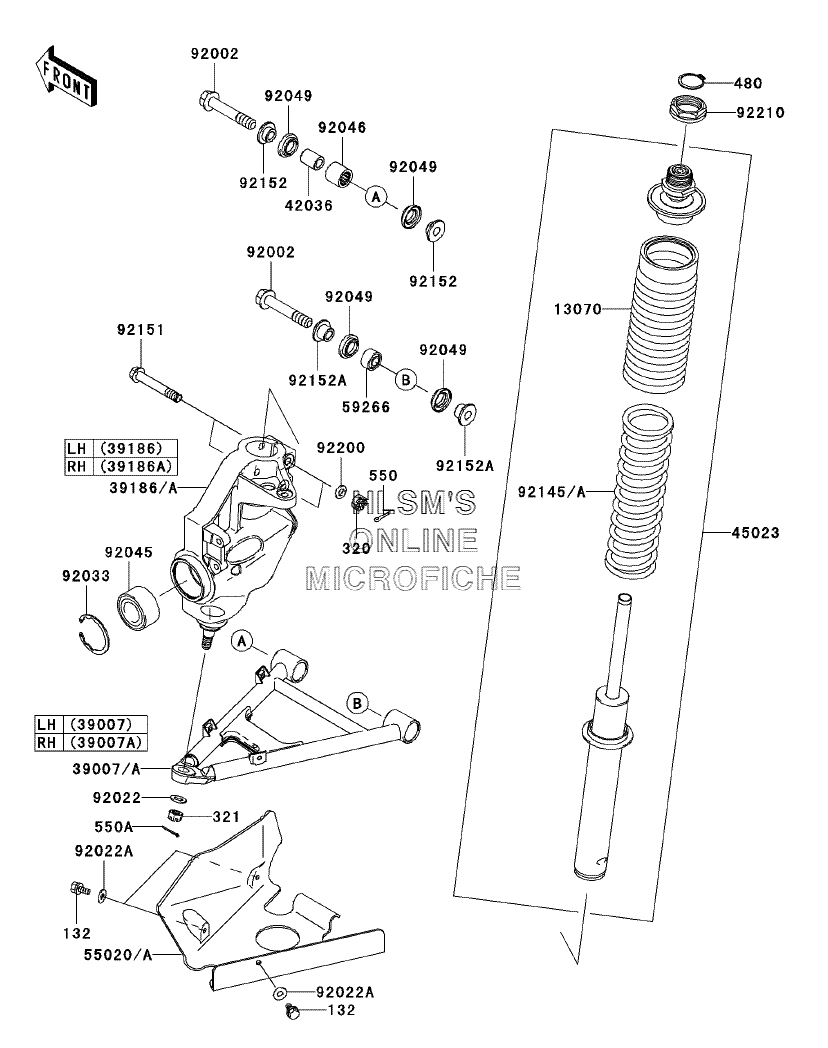

SUSPENSION для Kawasaki Prairie 650 4x4 (KVF650-A2) - 2003 года выпуска
-
№АртикулНазвание
-
132132J0612 BOLT-FLANGED-SMALL,6X12BOLT-FLANGED-SMALL,6X12
-
320320H1000 NUT-CASTLENUT-CASTLE
-
321321H1200 NUT-CASTLE,12MMNUT-CASTLE,12MM
-
480480J3200 CIRCLIP-TYPE-C,32MMCIRCLIP-TYPE-C,32MM
-
550550D2015 PIN-COTTER,2.0X15PIN-COTTER,2.0X15
-
550A550D3025 PIN-COTTER,3.0X25PIN-COTTER,3.0X25
-
1307013070-1383 GUIDE,STRUTGUIDE,STRUT
-
3900739007-0058 ARM-SUSP,LHARM-SUSP,LH
-
39007A39007-0059 ARM-SUSP,RHARM-SUSP,RH
-
3918639186-0041 KNUCKLE ASSY,FR,LHKNUCKLE ASSY,FR,LH
-
39186A39186-0042 KNUCKLE ASSY,FR,RHKNUCKLE ASSY,FR,RH
-
4203642036-1365 SLEEVE,12X20X26.7SLEEVE,12X20X26.7
-
4502345023-1014 STRUTSTRUT
-
5502055020-1768 GUARD,FRONT AXLE,LHGUARD,FRONT AXLE,LH
-
55020A55020-1769 GUARD,FRONT AXLE,RHGUARD,FRONT AXLE,RH
-
5926659266-1118 JOINT-BALLJOINT-BALL
-
9200292002-1861 BOLT,FLANGED,12X67BOLT,FLANGED,12X67
-
9202292022-1065 WASHER,12.3X22X1.6WASHER,12.3X22X1.6
-
92022A92022-1344 WASHER,7X16X1.2WASHER,7X16X1.2
-
9203392033-1274 RING-SNAP,55MMRING-SNAP,55MM
-
9204592045-1448 BEARING-BALL,30BWD08ABEARING-BALL,30BWD08A
-
9204692046-1290 BEARING-NEEDLE,TA202725ZEBEARING-NEEDLE,TA202725ZE
-
9204992049-1539 SEAL-OIL,MF020N3SEAL-OIL,MF020N3
-
9214592145-0009 SPRING,STRUT,K=10.8N/MM (OPTION)SPRING,STRUT,K=10.8N/MM (OPTION)
-
92145A92145-1445 SPRING,STRUT,K=9.81N/MMSPRING,STRUT,K=9.81N/MM
-
9215192151-1709 BOLT,FLANGED,10X65BOLT,FLANGED,10X65
-
9215292152-1295 COLLARCOLLAR
-
92152A92152-1296 COLLARCOLLAR
-
9220092200-1042 WASHER,10.5X19X2.3WASHER,10.5X19X2.3
-
9221092210-1226 NUT,FLANGED,35MMNUT,FLANGED,35MM
