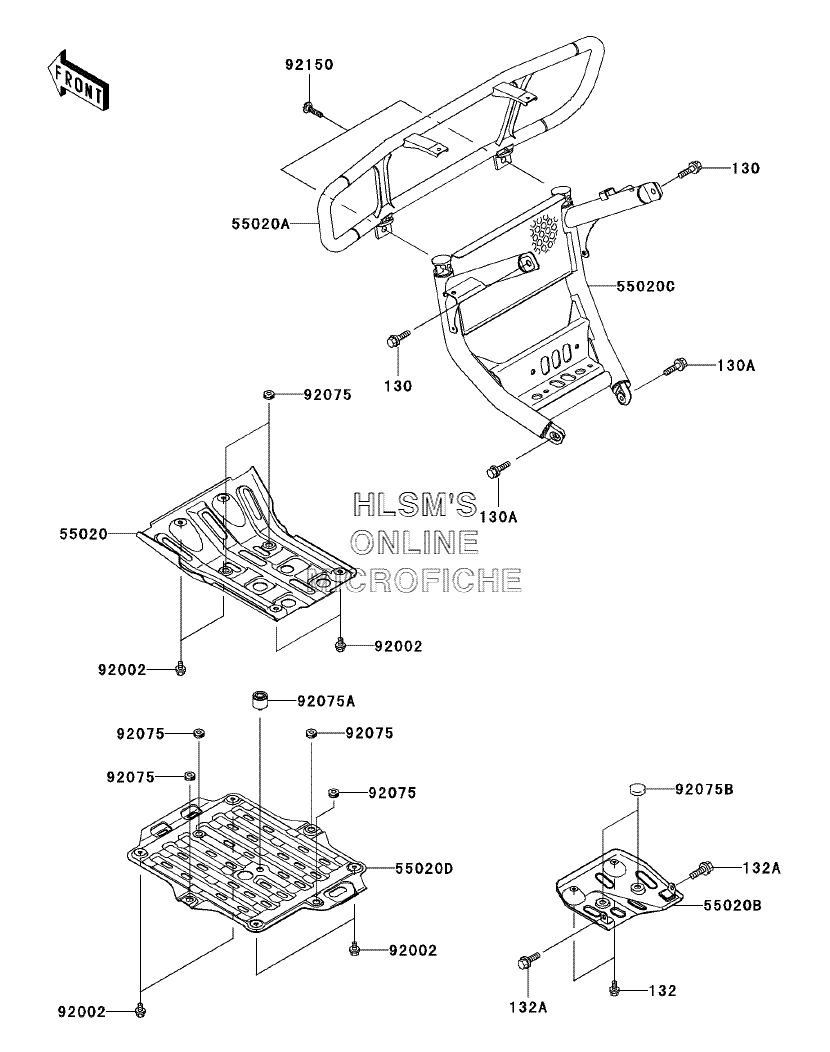

GUARD(S) для Kawasaki Prairie 650 4x4 (KVF650-A2) - 2003 года выпуска
-
№АртикулНазвание
-
130130T0820 BOLT-FLANGED,8X20BOLT-FLANGED,8X20
-
130A130Z0820 BOLT-FLANGEDBOLT-FLANGED
-
132132J0612 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
132A132J0816 BOLT-FLANGED-SMALL,8X16BOLT-FLANGED-SMALL,8X16
-
5502055020-0001 GUARD,FRONT SKIDGUARD,FRONT SKID
-
55020A55020-1741-UF GUARD,FR,UPP,S.GOLDGUARD,FR,UPP,S.GOLD
-
55020B55020-1756 GUARD,SWING ARMGUARD,SWING ARM
-
55020C55020-1760-UF GUARD,FR,LWR,S.GOLDGUARD,FR,LWR,S.GOLD
-
55020D55020-1808 GUARD,ENGINE,UNDERGUARD,ENGINE,UNDER
-
9200292002-1449 BOLT,6X10BOLT,6X10
-
9207592075-051 DAMPERDAMPER
-
92075A92075-1002 DAMPER,STAND,CNTDAMPER,STAND,CNT
-
92075B92075-157 DAMPER,SIDE STANDDAMPER,SIDE STAND
-
9215092150-1728 BOLT,DISC PLATE,8X30BOLT,DISC PLATE,8X30
