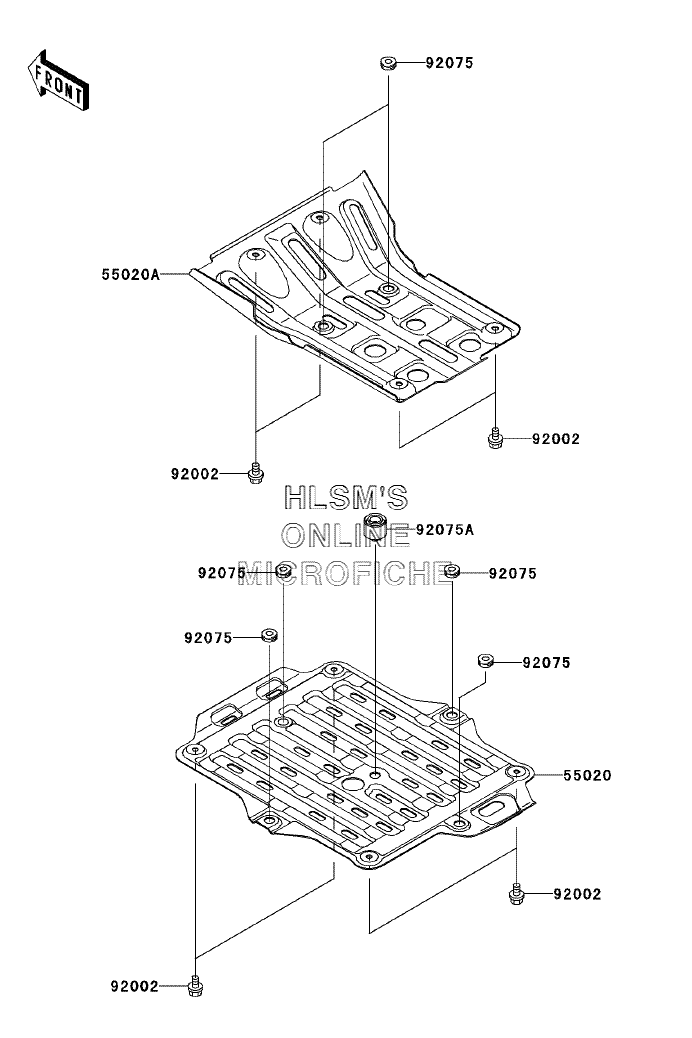

OPTIONAL PARTS (GURD) для Kawasaki Prairie 650 4x4 (KVF650-A2) - 2003 года выпуска
-
№АртикулНазвание
-
5502055020-1712 GUARD,ENGINE,UNDERGUARD,ENGINE,UNDER
-
55020A55020-1748-UF GUARD,FRONT SKID,S.GOLDGUARD,FRONT SKID,S.GOLD
-
9200292002-1449 BOLT,6X10BOLT,6X10
-
9207592075-051 DAMPERDAMPER
-
92075A92075-1002 DAMPER,STAND,CNTDAMPER,STAND,CNT
