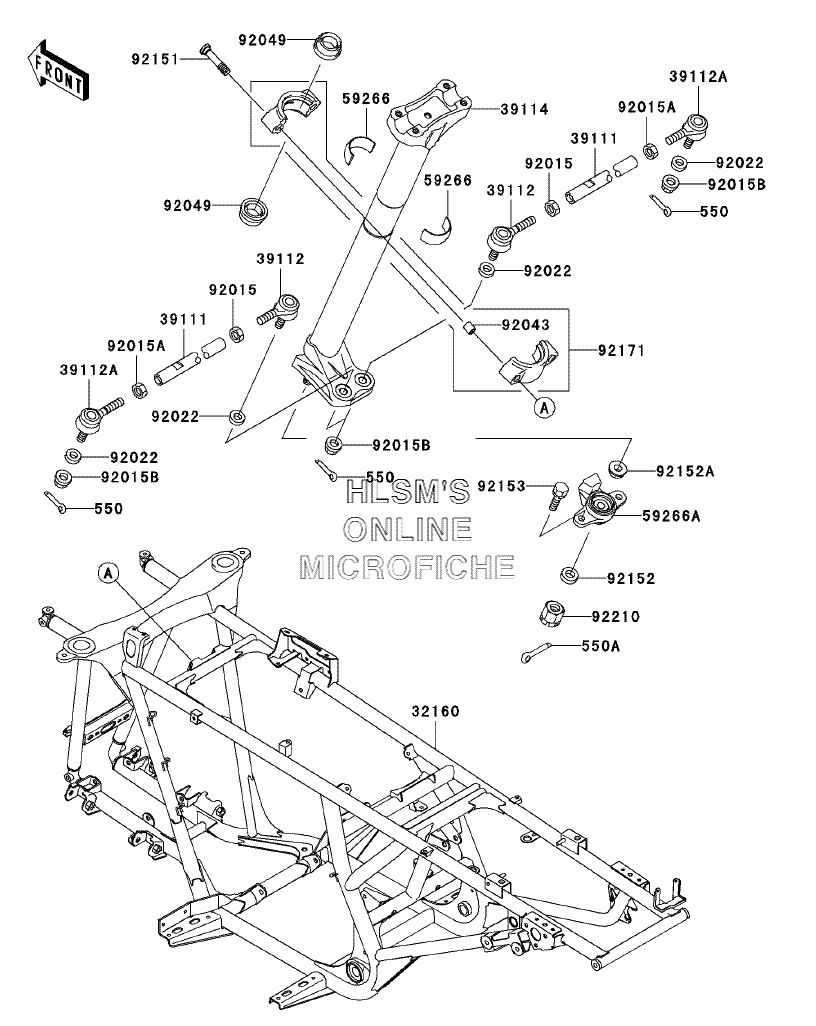

FRAME для Kawasaki Prairie 650 4x4 (KVF650-A2) - 2003 года выпуска
-
№АртикулНазвание
-
550550D2015 PIN-COTTER,2.0X15PIN-COTTER,2.0X15
-
550A550D3025 PIN-COTTER,3.0X25PIN-COTTER,3.0X25
-
3216032160-1814 FRAME-COMPFRAME-COMP
-
3911139111-1090 ROD-TIEROD-TIE
-
3911239112-1083 RODEND-TIERODEND-TIE
-
39112A39112-1085 RODEND-TIERODEND-TIE
-
3911439114-1090 SHAFT-COMP-STRGSHAFT-COMP-STRG
-
5926659266-1117 JOINT-BALLJOINT-BALL
-
59266A59266-1125 JOINT-BALLJOINT-BALL
-
9201592015-1460 NUT,LOCK,10MMNUT,LOCK,10MM
-
92015A92015-1494 NUT,LOCK,10MMNUT,LOCK,10MM
-
92015B92015-1717 NUT,LOCK,FLANGED,10MMNUT,LOCK,FLANGED,10MM
-
9202292022-3742 WASHER,10.2X20X1.5WASHER,10.2X20X1.5
-
9204392043-1264 PIN,8.2X10X14PIN,8.2X10X14
-
9204992049-1580 SEAL-OIL,SR7 39.6X49X6-2 NSSEAL-OIL,SR7 39.6X49X6-2 NS
-
9215192151-1711 BOLT,8X53BOLT,8X53
-
9215292152-1351 COLLAR,12X21.3X7COLLAR,12X21.3X7
-
92152A92152-1358 COLLARCOLLAR
-
9215392153-1065 BOLT,8X30BOLT,8X30
-
9217192171-1449 CLAMP,STEERING SHAFTCLAMP,STEERING SHAFT
-
9221092210-7501 NUT,12MMNUT,12MM
