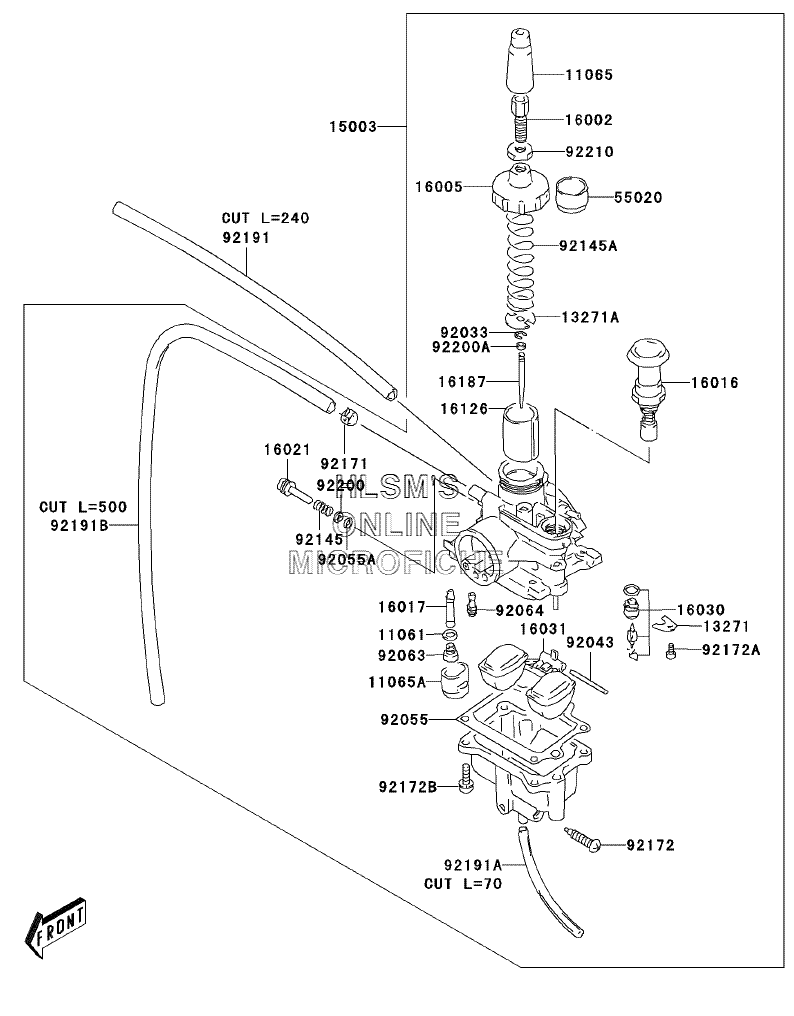

CARBURETOR для Kawasaki KFX80 (KSF80-A2) - 2004 года выпуска
-
№АртикулНазвание
-
1106111061-S057 GASKETGASKET
-
1106511065-S024 CAPCAP
-
11065A11065-S025 CAPCAP
-
1327113271-S037 PLATEPLATE
-
13271A13271-S038 PLATEPLATE
-
1500315003-S005 CARBURETOR-ASSYCARBURETOR-ASSY
-
1600216002-S001 ADJUSTER-CABLEADJUSTER-CABLE
-
1600516005-S010 TOP-CHAMBERTOP-CHAMBER
-
1601616016-S005 PLUNGERPLUNGER
-
1601716017-S004 JET-NEEDLE, (E-0)JET-NEEDLE, (E-0)
-
1602116021-S004 SCREW-THROTTLE STOPSCREW-THROTTLE STOP
-
1603016030-S005 VALVE-FLOATVALVE-FLOAT
-
1603116031-S005 FLOATFLOAT
-
1612616126-S007 VALVE, CA 2.5VALVE, CA 2.5
-
1618716187-S006 NEEDLE-JETNEEDLE-JET
-
5502055020-S009 GUARDGUARD
-
9203392033-S025 RING-SNAP, NEEDLERING-SNAP, NEEDLE
-
9204392043-S029 PINPIN
-
9205592055-S043 RING-O, GASKETRING-O, GASKET
-
92055A92055-S044 RING-ORING-O
-
9206392063-S004 JET-MAINJET-MAIN
-
9206492064-S006 JET-PILOTJET-PILOT
-
9214592145-S072 SPRINGSPRING
-
92145A92145-S073 SPRING, THROTTLE VALVESPRING, THROTTLE VALVE
-
9217192171-S068 CLAMPCLAMP
-
9217292172-S046 SCREW, DRAINSCREW, DRAIN
-
92172A92172-S138 SCREWSCREW
-
92172B92172-S139 SCREWSCREW
-
9219192191-S038 TUBE, VACUUMTUBE, VACUUM
-
92191A92191-S044 TUBE, 3X5X600TUBE, 3X5X600
-
92191B92191-S045 TUBE, 3.5X6.5X600TUBE, 3.5X6.5X600
-
9220092200-S106 WASHERWASHER
-
92200A92200-S107 WASHERWASHER
-
9221092210-S079 NUTNUT
