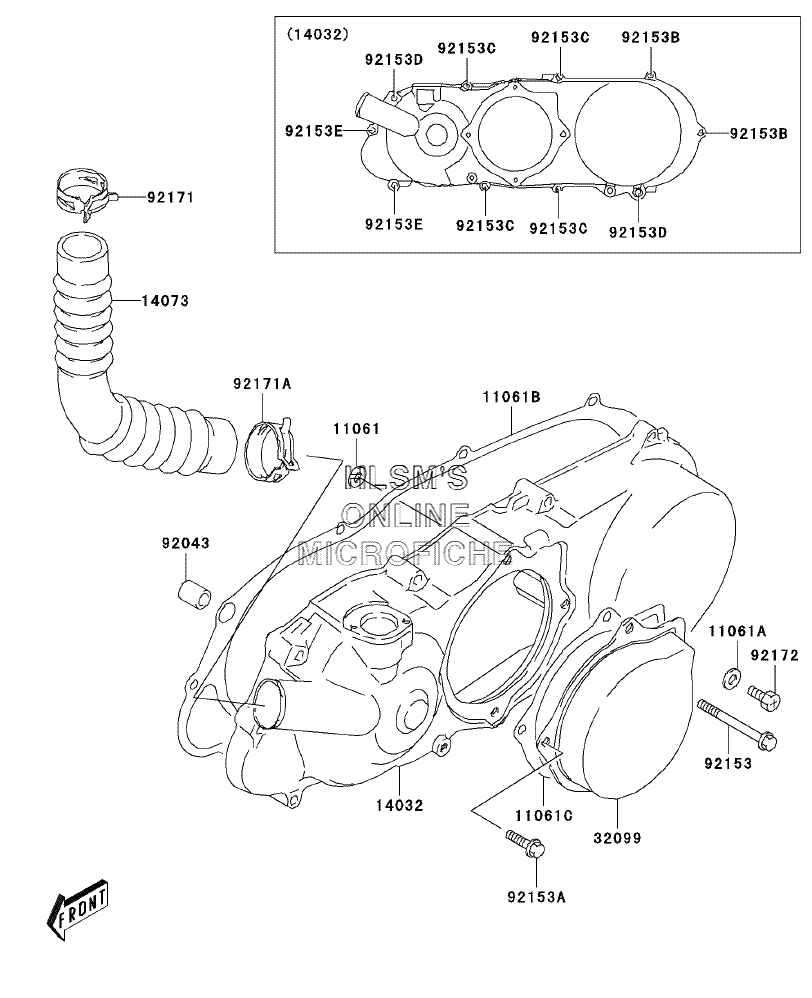

ENGINE COVER(S) для Kawasaki KFX80 (KSF80-A2) - 2004 года выпуска
-
№АртикулНазвание
-
1106111061-S003 GASKET, 7X15X0.6GASKET, 7X15X0.6
-
11061A11061-S004 GASKET, 8.2X14X1GASKET, 8.2X14X1
-
11061B11061-S055 GASKET, CLUTCH COVERGASKET, CLUTCH COVER
-
11061C11061-S056 GASKET, RECOIL STARTERGASKET, RECOIL STARTER
-
1403214032-S006 COVER-CLUTCHCOVER-CLUTCH
-
1407314073-S005 DUCT, BELT COOLING, INDUCT, BELT COOLING, IN
-
3209932099-S004 CASE, RECOIL STARTERCASE, RECOIL STARTER
-
9204392043-S003 PINPIN
-
9215392153-S006 BOLTBOLT
-
92153A92153-S193 BOLT, RECOIL STARTERBOLT, RECOIL STARTER
-
92153B92153-S210 BOLT, CLUTCH COVERBOLT, CLUTCH COVER
-
92153C92153-S213 BOLT, CLUTCH COVERBOLT, CLUTCH COVER
-
92153D92153-S214 BOLTBOLT
-
92153E92153-S215 BOLT, STARTER MOTORBOLT, STARTER MOTOR
-
9217192171-S066 CLAMP, BELT COOLINGCLAMP, BELT COOLING
-
92171A92171-S067 CLAMP, BELT COOLINGCLAMP, BELT COOLING
-
9217292172-S159 SCREW, DRAINSCREW, DRAIN
