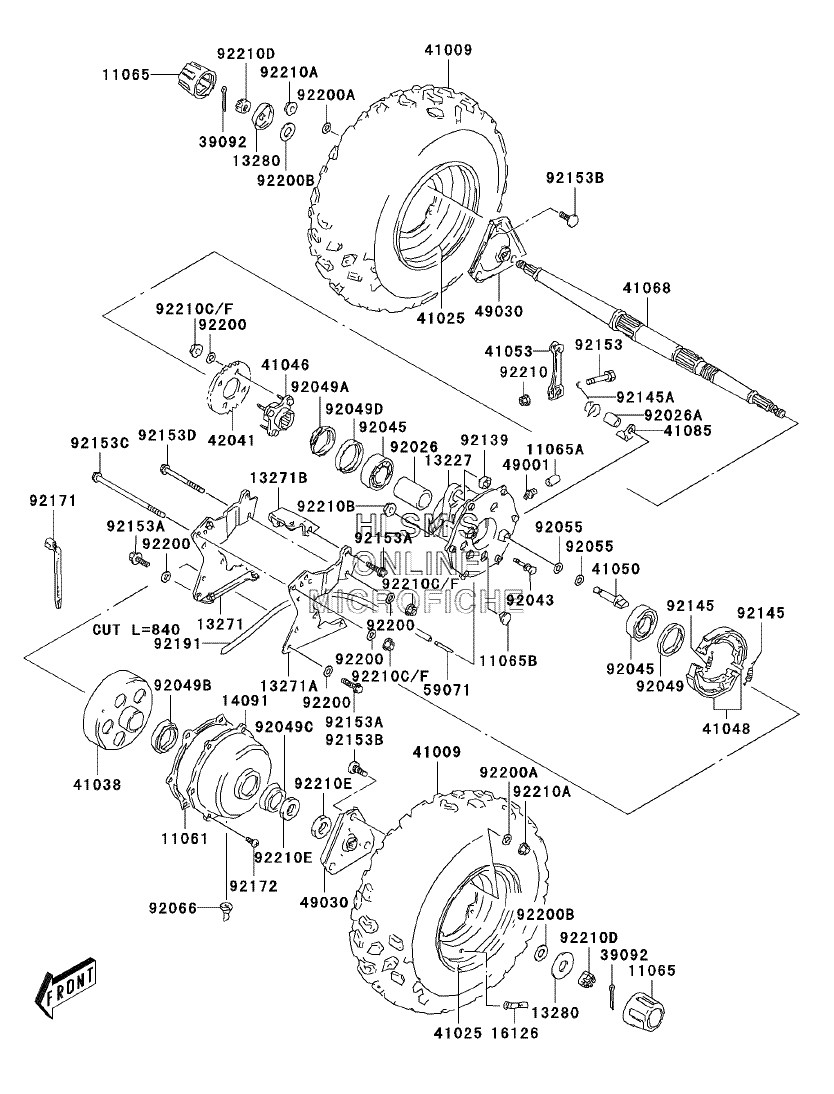

REAR HUB для Kawasaki KFX80 (KSF80-A2) - 2004 года выпуска
-
№АртикулНазвание
-
1106111061-S067 GASKET, REAR BRAKE DRUMGASKET, REAR BRAKE DRUM
-
1106511065-S022 CAP, WHEELCAP, WHEEL
-
11065A11065-S028 CAP, GREASE NIPPLECAP, GREASE NIPPLE
-
11065B11065-S029 CAP, HOUSING SEALCAP, HOUSING SEAL
-
1322713227-S003 HOUSING, REAR AXLEHOUSING, REAR AXLE
-
1327113271-S043 PLATE, REAR AXLE HOUSING (RIGHT)PLATE, REAR AXLE HOUSING (RIGHT)
-
13271A13271-S044 PLATE, REAR AXLE HOUSING (LEFT)PLATE, REAR AXLE HOUSING (LEFT)
-
13271B13271-S045 PLATE, MUFFLERPLATE, MUFFLER
-
1328013280-S017 HOLDER, CENTER CAPHOLDER, CENTER CAP
-
1409114091-S077 COVER, BRAKE DRUMCOVER, BRAKE DRUM
-
1612616126-S008 VALVE, WHEEL RIMVALVE, WHEEL RIM
-
3909239092-S010 PIN-HAIR, REAR HUBPIN-HAIR, REAR HUB
-
4100941009-S011 TIRE, AT19X7-8 (DUNLOP)TIRE, AT19X7-8 (DUNLOP)
-
4102541025-S007-530 RIM FRONT WHEEL (SILVER)RIM FRONT WHEEL (SILVER)
-
4103841038-S002 DRUM, REAR BRAKEDRUM, REAR BRAKE
-
4104641046-S003 HOUSING-BEARINGHOUSING-BEARING
-
4104841048-S006 SHOE-BRAKESHOE-BRAKE
-
4105041050-S006 CAM-BRAKE, REAR BRAKECAM-BRAKE, REAR BRAKE
-
4105341053-S007 LEVER-BRAKE CAMLEVER-BRAKE CAM
-
4106841068-S008 AXLE (REAR)AXLE (REAR)
-
4108541085-S004 INDICATORINDICATOR
-
4204142041-S005 SPROCKET-HUB (22 TEETH)SPROCKET-HUB (22 TEETH)
-
4900149001-S002 NIPPLE-GREASENIPPLE-GREASE
-
4903049030-S002 HUB (REAR)HUB (REAR)
-
5907159071-S004 JOINT, BREATHER HOSEJOINT, BREATHER HOSE
-
9202692026-S074 SPACER, REAR AXLESPACER, REAR AXLE
-
92026A92026-S077 SPACER, REAR BRAKE CAMSPACER, REAR BRAKE CAM
-
9204392043-S033 PIN, REAR BRAKEPIN, REAR BRAKE
-
9204592045-S044 BEARING-BALL, REAR AXLEBEARING-BALL, REAR AXLE
-
9204992049-S040 SEAL-OIL, REAR AXLE (LEFT)SEAL-OIL, REAR AXLE (LEFT)
-
92049A92049-S042 SEAL-OIL, REAR AXLE (RIGHT)SEAL-OIL, REAR AXLE (RIGHT)
-
92049B92049-S043 SEAL-OIL, REAR BRAKE DRUMSEAL-OIL, REAR BRAKE DRUM
-
92049C92049-S044 SEAL-OIL, REAR BRAKE DRUMSEAL-OIL, REAR BRAKE DRUM
-
92049D92049-S046 SEAL-OIL, REAR AXLE (RIGHT)SEAL-OIL, REAR AXLE (RIGHT)
-
9205592055-S047 RING-O, BRAKE CAMRING-O, BRAKE CAM
-
9206692066-S025 PLUG, DRAINPLUG, DRAIN
-
9213992139-S020 BUSHING, REAR SHOCKBUSHING, REAR SHOCK
-
9214592145-S084 SPRING, BRAKE SHOESPRING, BRAKE SHOE
-
92145A92145-S086 SPRING, BRAKE CAM LEVER RETURNSPRING, BRAKE CAM LEVER RETURN
-
9215392153-S068 BOLTBOLT
-
92153A92153-S220 BOLT, BRUSH GUARDBOLT, BRUSH GUARD
-
92153B92153-S236 BOLT, REAR HUBBOLT, REAR HUB
-
92153C92153-S238 BOLT, REAR AXLE HOUSINGBOLT, REAR AXLE HOUSING
-
92153D92153-S239 BOLT, REAR AXLE HOUSINGBOLT, REAR AXLE HOUSING
-
9217192171-S014 CLAMP, L=125CLAMP, L=125
-
9217292172-S160 SCREW, BRAKE DRUM COVERSCREW, BRAKE DRUM COVER
-
9219192191-S050 TUBE, BRAKE BREATHERTUBE, BRAKE BREATHER
-
9220092200-S028 WASHERWASHER
-
92200A92200-S092 WASHER, MAGNETOWASHER, MAGNETO
-
92200B92200-S121 WASHER, REAR HUBWASHER, REAR HUB
-
9221092210-S004 NUTNUT
-
92210A92210-S005 NUTNUT
-
92210B92210-S026 NUTNUT
-
92210D92210-S089 NUT, REAR HUBNUT, REAR HUB
-
92210E92210-S092 NUT, REAR AXLENUT, REAR AXLE
-
92210F92210-S094 NUTNUT
