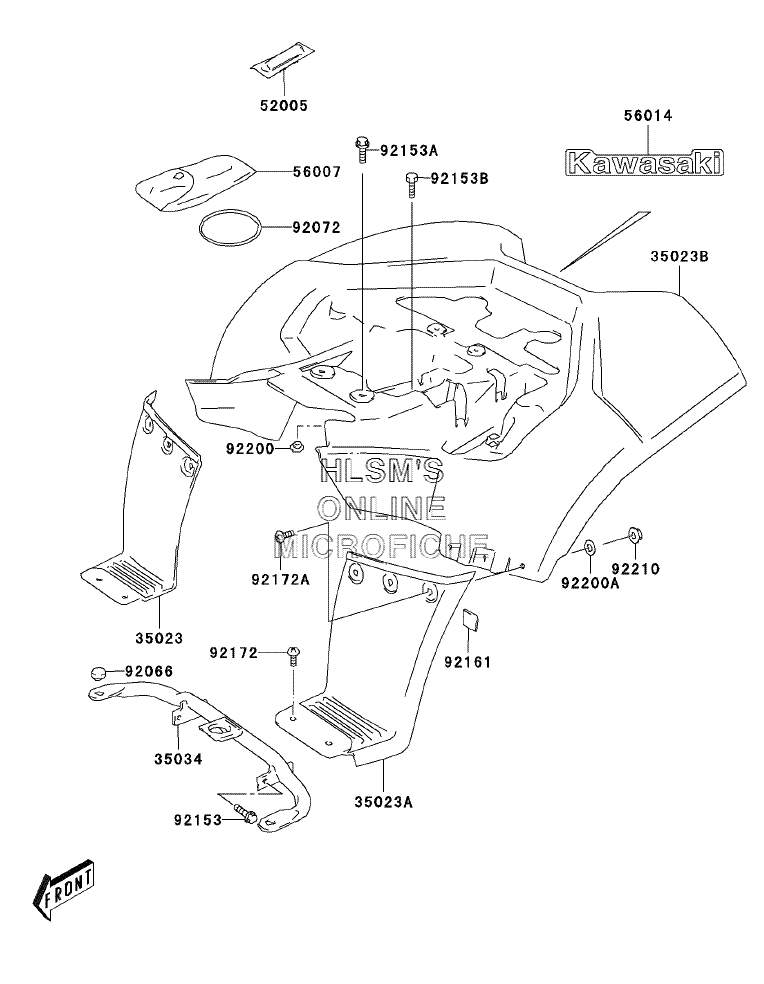

FENDER - REAR для Kawasaki KFX80 (KSF80-A2) - 2004 года выпуска
-
№АртикулНазвание
-
3502335023-S006-504 FENDER-REAR (BLACK)FENDER-REAR (BLACK)
-
35023A35023-S007-504 FENDER-REAR (BLACK)FENDER-REAR (BLACK)
-
35023B35023-S008-535 FENDER-REAR (GREEN)FENDER-REAR (GREEN)
-
3503435034-S003 REINFORCE, REAR FENDERREINFORCE, REAR FENDER
-
5200552005-S005 GAUGE, AIRGAUGE, AIR
-
5600756007-S004 TOOL-KITTOOL-KIT
-
5601456014-S012-554 EMBLEM (BLACK/GREEN)EMBLEM (BLACK/GREEN)
-
9206692066-S026 PLUGPLUG
-
9207292072-S006 BAND, TOOLBAND, TOOL
-
9215392153-S012 BOLTBOLT
-
92153A92153-S227 BOLT, REAR FENDERBOLT, REAR FENDER
-
92153B92153-S228 BOLT, REAR FENDERBOLT, REAR FENDER
-
9216192161-S077 DAMPERDAMPER
-
9217292172-S152 SCREW FRONT FENDERSCREW FRONT FENDER
-
92172A92172-S158 SCREW, REAR FENDERSCREW, REAR FENDER
-
9220092200-S018 WASHERWASHER
-
92200A92200-S119 WASHER, REAR FENDERWASHER, REAR FENDER
-
9221092210-S066 NUTNUT
