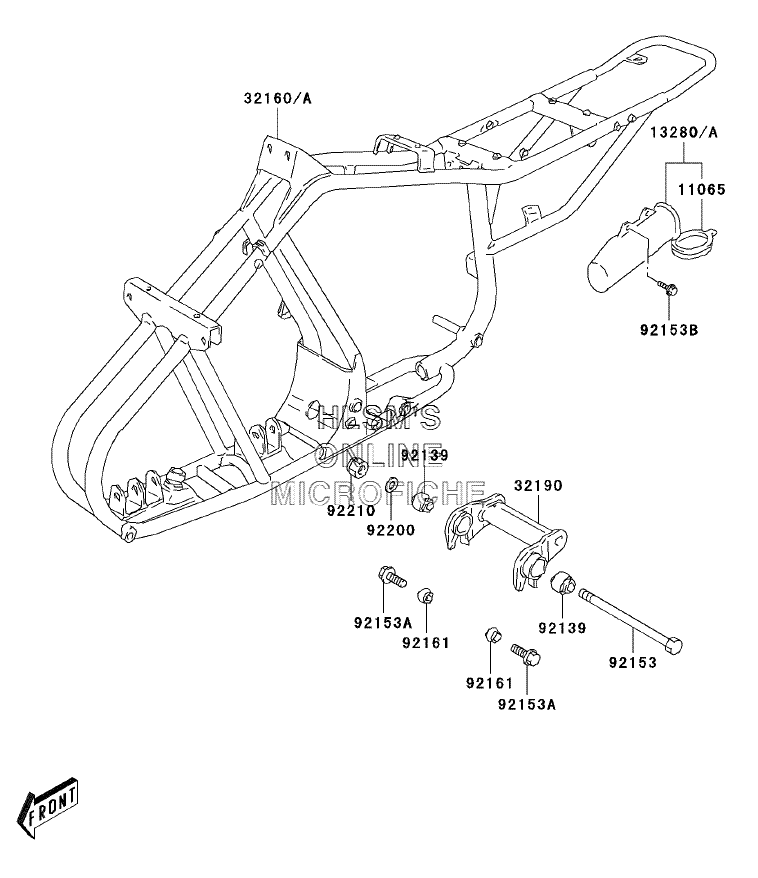

FRAME для Kawasaki KFX80 (KSF80-A2) - 2004 года выпуска
-
№АртикулНазвание
-
1106511065-S026 CAP, TOOL HOLDERCAP, TOOL HOLDER
-
1328013280-S020 HOLDER, TOOL (USA ONLY)HOLDER, TOOL (USA ONLY)
-
13280A13280-S022 HOLDER, TOOL (CANADA ONLY)HOLDER, TOOL (CANADA ONLY)
-
3216032160-S006-503 FRAME-COMP (BLACK) (USA ONLY)FRAME-COMP (BLACK) (USA ONLY)
-
32160A32160-S008-503 FRAME-COMP (BLACK) (CANADA ONLY)FRAME-COMP (BLACK) (CANADA ONLY)
-
3219032190-S006-503 BRACKET-ENGINE, CRANKCASE, BLACKBRACKET-ENGINE, CRANKCASE, BLACK
-
9213992139-S018 BUSHING, CRANKCASE BRACKETBUSHING, CRANKCASE BRACKET
-
9215392153-S212 BOLT, ENGINE MTGBOLT, ENGINE MTG
-
92153A92153-S218 BOLTBOLT
-
92153B92153-S219 BOLT, TOOL HOLDERBOLT, TOOL HOLDER
-
9216192161-S075 DAMPERDAMPER
-
9220092200-S104 WASHER, ENGTNE MTGWASHER, ENGTNE MTG
-
9221092210-S078 NUT, ENGINE MTGNUT, ENGINE MTG
