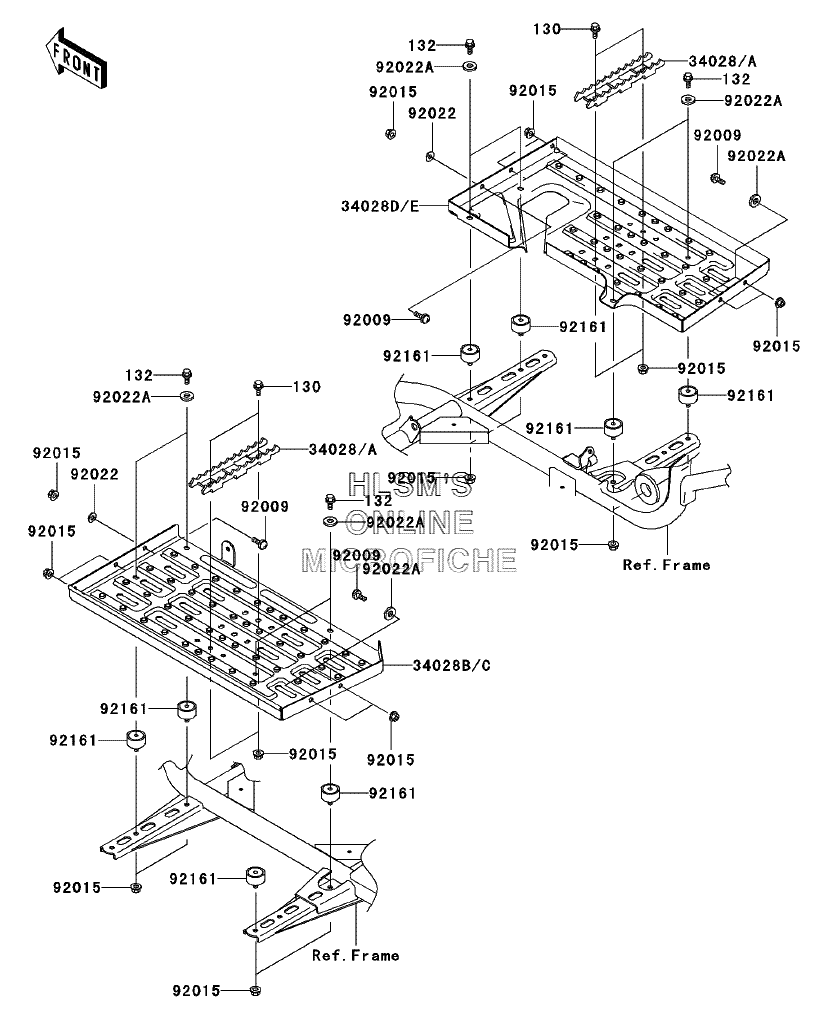

FOOTRESTS для Kawasaki Prairie 360 4x4 Hardwoods Green HD (KVF360-C2) - 2004 года выпуска
-
№АртикулНазвание
-
130130J0614 BOLT-FLANGED, 6X14BOLT-FLANGED, 6X14
-
132132J0610 BOLT-FLANGED-SMALL, 6X10BOLT-FLANGED-SMALL, 6X10
-
3402834028-1487-UF STEP, FOOT PEG (S.GOLD)STEP, FOOT PEG (S.GOLD)
-
34028B34028-7511-UF STEP (LEFT/S.GOLD)STEP (LEFT/S.GOLD)
-
34028D34028-7512-UF STEP (RIGHT/S.GOLD)STEP (RIGHT/S.GOLD)
-
9200992009-1621 SCREW, 6X16SCREW, 6X16
-
9201592015-1367 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
9202292022-1093 WASHER, 6.5X16X1.0WASHER, 6.5X16X1.0
-
92022A92022-1346 WASHER, 6.5X20X1.6, BLACKWASHER, 6.5X20X1.6, BLACK
-
9216192161-7505 DAMPER, FLOOR BOARDDAMPER, FLOOR BOARD
