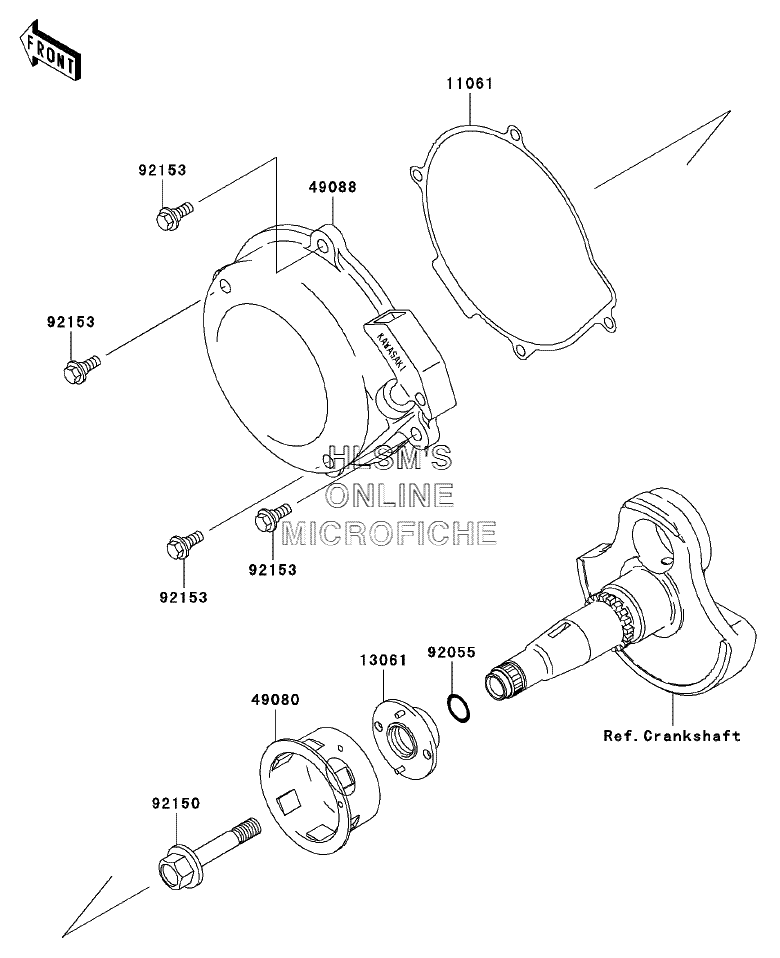

STARTER - RECOIL для Kawasaki Prairie 360 4x4 Hardwoods Green HD (KVF360-C2) - 2004 года выпуска
-
№АртикулНазвание
-
1106111061-1153 GASKET, RECOIL STARTERGASKET, RECOIL STARTER
-
1306113061-1867 BOSS, STARTING PULLEYBOSS, STARTING PULLEY
-
4908049080-1060 PULLEY-STARTINGPULLEY-STARTING
-
4908849088-1058 STARTER-RECOILSTARTER-RECOIL
-
9205592055-1258 RING-O, 16.8X2.4RING-O, 16.8X2.4
-
9215092150-1987 BOLT, 12X65BOLT, 12X65
-
9215392153-7007 BOLT, FLANGED, 6X16BOLT, FLANGED, 6X16
