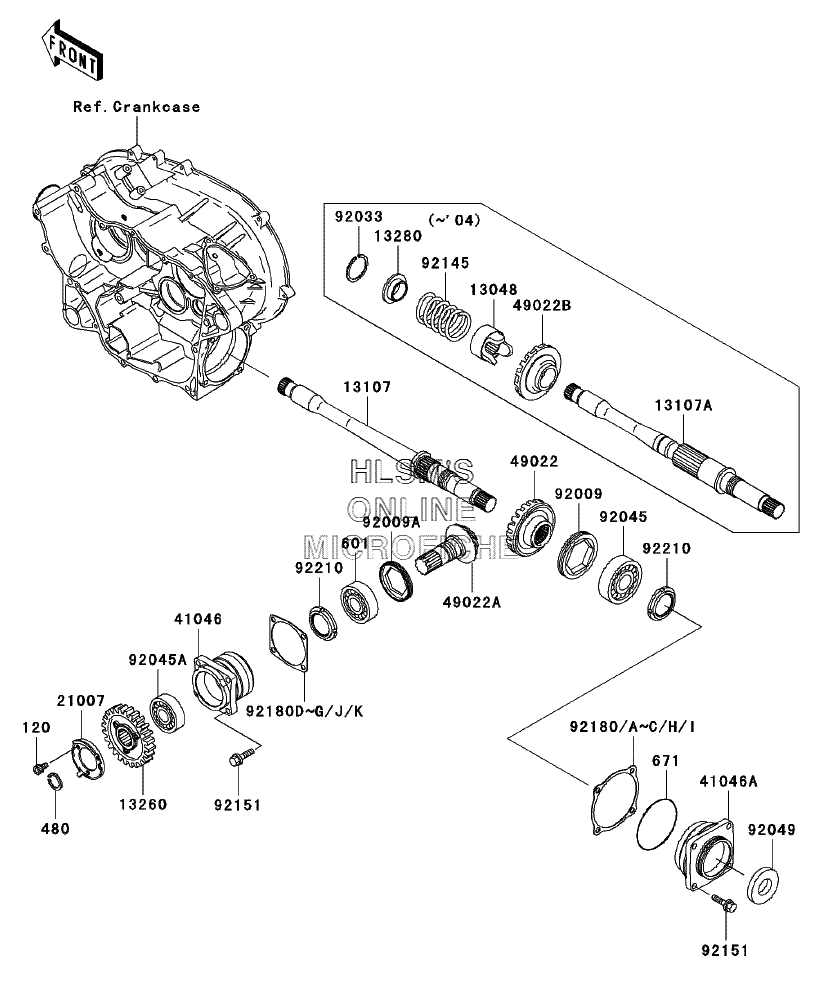

FRONT BEVEL GEAR для Kawasaki Prairie 360 4x4 Hardwoods Green HD (KVF360-C2) - 2004 года выпуска
-
№АртикулНазвание
-
120120P0612 BOLT-SOCKET, 6X12BOLT-SOCKET, 6X12
-
480480J2800 CIRCLIP-TYPE-C, 28MMCIRCLIP-TYPE-C, 28MM
-
601601B6206 BEARING-BALL, #6206C3BEARING-BALL, #6206C3
-
671671D2585 O RINGO RING
-
1304813048-1088 CAM-DAMPERCAM-DAMPER
-
13107A13107-1438 SHAFTSHAFT
-
1326013260-1922 GEAR, OUTPUT (29 TEETH)GEAR, OUTPUT (29 TEETH)
-
1328013280-1169 HOLDERHOLDER
-
2100721007-1416 ROTOR, REVERSE SENSORROTOR, REVERSE SENSOR
-
4104641046-1101 HOUSING-BEARINGHOUSING-BEARING
-
41046A41046-1102 HOUSING-BEARINGHOUSING-BEARING
-
49022A49022-1184 GEAR-BEVEL, DRIVE (20 TEETH)GEAR-BEVEL, DRIVE (20 TEETH)
-
49022B49022-1185 GEAR-BEVEL, DRIVEN (20 TEETH)GEAR-BEVEL, DRIVEN (20 TEETH)
-
9200992009-1667 SCREW-SET-SOCKET, 75X10SCREW-SET-SOCKET, 75X10
-
92009A92009-1914 SCREW, 64MMSCREW, 64MM
-
9203392033-1320 RING-SNAPRING-SNAP
-
9204592045-1190 BEARING-BALL, 6306SH2BEARING-BALL, 6306SH2
-
92045A92045-1207 BEARING-BALL, 62/28BEARING-BALL, 62/28
-
9204992049-1529 SEAL-OILSEAL-OIL
-
9214592145-1298 SPRINGSPRING
-
9215192151-1688 BOLT-FLANGED-SMALL, 8X30BOLT-FLANGED-SMALL, 8X30
-
9218092180-1307 SHIM, DRIVEN, T=0.15SHIM, DRIVEN, T=0.15
-
92180A92180-1308 SHIM, DRIVEN, T=0.20SHIM, DRIVEN, T=0.20
-
92180B92180-1309 SHIM, DRIVEN, T=0.50SHIM, DRIVEN, T=0.50
-
92180C92180-1310 SHIM, DRIVEN, T=0.80SHIM, DRIVEN, T=0.80
-
92180D92180-1311 SHIM, DRIVE, T=0.15SHIM, DRIVE, T=0.15
-
92180E92180-1312 SHIM, DRIVE, T=0.20SHIM, DRIVE, T=0.20
-
92180F92180-1313 SHIM, DRIVE, T=0.50SHIM, DRIVE, T=0.50
-
92180G92180-1314 SHIM, DRIVE, T=0.80SHIM, DRIVE, T=0.80
-
92180H92180-1349 SHIM, DRIVEN, T=1.00SHIM, DRIVEN, T=1.00
-
92180I92180-1350 SHIM, DRIVEN, T=1.20SHIM, DRIVEN, T=1.20
-
92180J92180-1351 SHIM, DRIVE, T=1.00SHIM, DRIVE, T=1.00
-
92180K92180-1352 SHIM, DRIVE, T=1.20SHIM, DRIVE, T=1.20
-
9221092210-1294 NUT, 30MMNUT, 30MM
