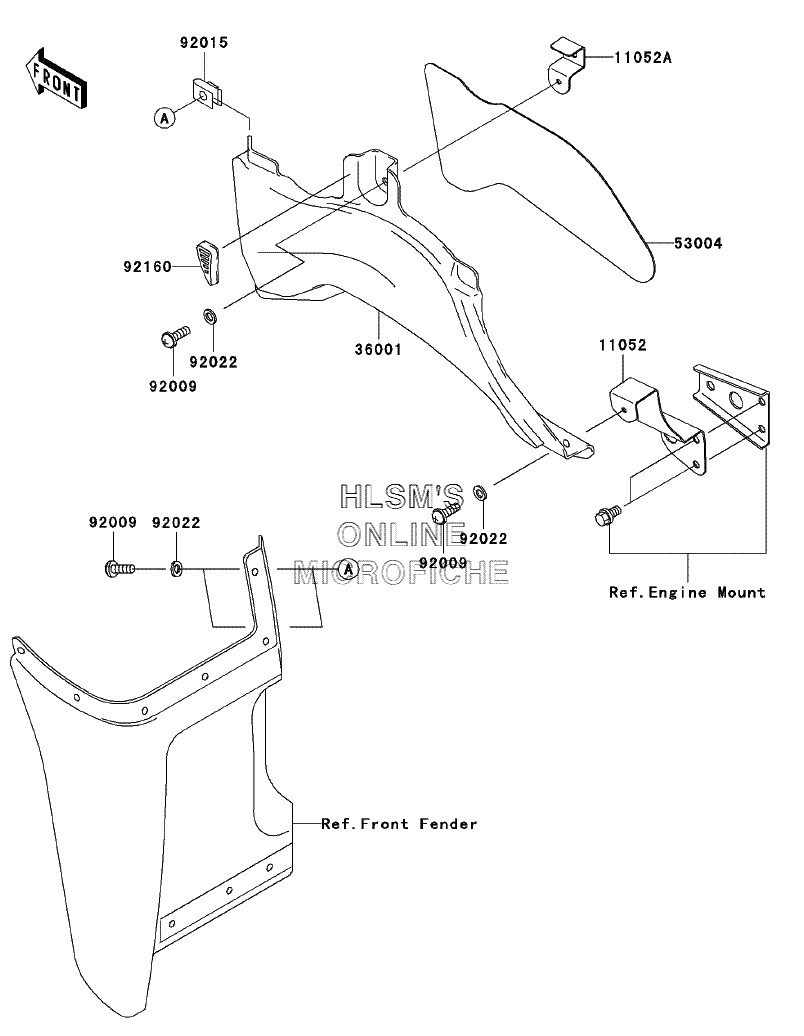

SIDE COVERS для Kawasaki Prairie 360 4x4 Hardwoods Green HD (KVF360-C2) - 2004 года выпуска
-
№АртикулНазвание
-
1105211052-1807 BRACKET, EXHAUST PIPE COVER (LOWER)BRACKET, EXHAUST PIPE COVER (LOWER)
-
11052A11052-1810 BRACKET, EXHAUST PIPE COVER (UPPER)BRACKET, EXHAUST PIPE COVER (UPPER)
-
3600136001-1678 COVER-SIDE, EXHAUST PIPECOVER-SIDE, EXHAUST PIPE
-
5300453004-1175 MAT, EXHAUST PIPE COVERMAT, EXHAUST PIPE COVER
-
9200992009-1621 SCREW, 6X16SCREW, 6X16
-
9201592015-1248 NUTNUT
-
9202292022-1346 WASHER, 6.5X20X1.6WASHER, 6.5X20X1.6
-
9216092160-1946 DAMPERDAMPER
