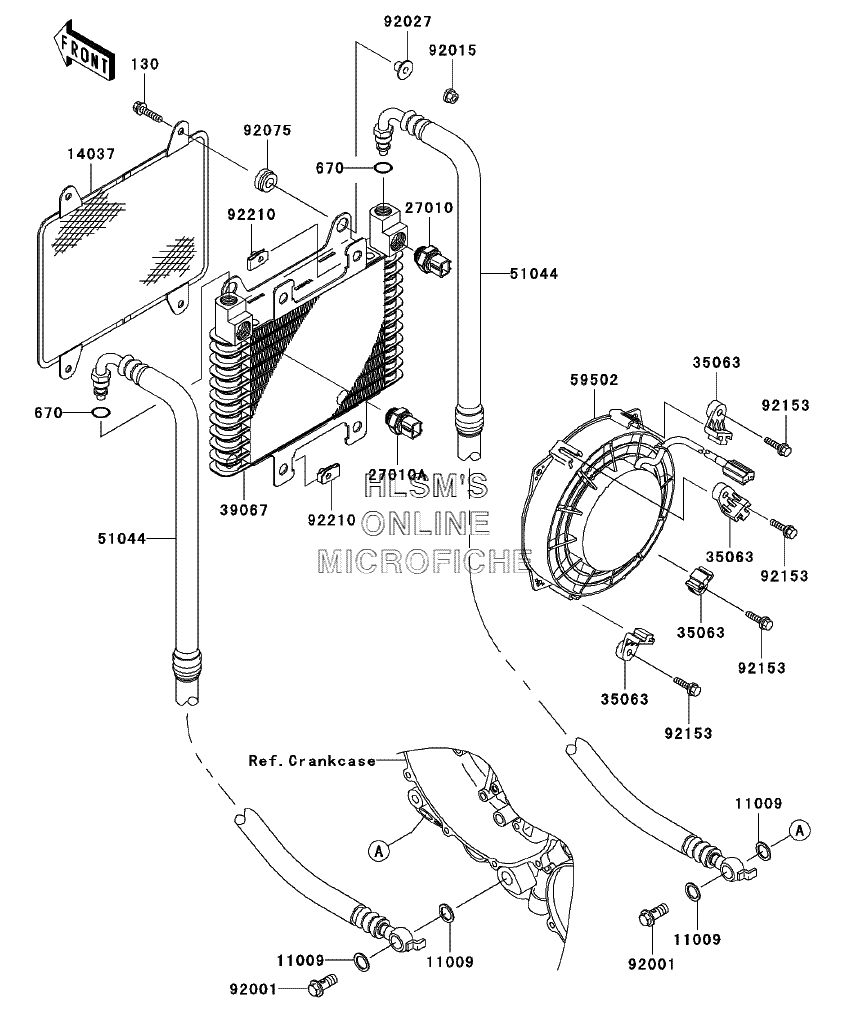

OIL COOLER для Kawasaki Prairie 360 4x4 Hardwoods Green HD (KVF360-C2) - 2004 года выпуска
-
№АртикулНазвание
-
130130J0625 BOLT-FLANGED, 6X25BOLT-FLANGED, 6X25
-
670670D1508 O RING, 8MMO RING, 8MM
-
1100911009-1461 GASKET, 14X19.5X1.4GASKET, 14X19.5X1.4
-
1403714037-1313 SCREEN, OIL COOLERSCREEN, OIL COOLER
-
2701027010-0005 SWITCH, OIL COOLER (RIGHT)SWITCH, OIL COOLER (RIGHT)
-
27010A27010-0006 SWITCH, OIL COOLER (LEFT)SWITCH, OIL COOLER (LEFT)
-
3506335063-1212 STAYSTAY
-
3906739067-0002 COOLER-OILCOOLER-OIL
-
5104451044-1227 TUBE-ASSY, L=1080TUBE-ASSY, L=1080
-
5950259502-1138 FAN-ASSYFAN-ASSY
-
9200192001-1930 BOLT, 14X28.5BOLT, 14X28.5
-
9201592015-1193 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
9202792027-1767 COLLARCOLLAR
-
9207592075-277 DAMPERDAMPER
-
9215392153-1087 BOLT, 6X22BOLT, 6X22
-
9221092210-1331 NUTNUT
